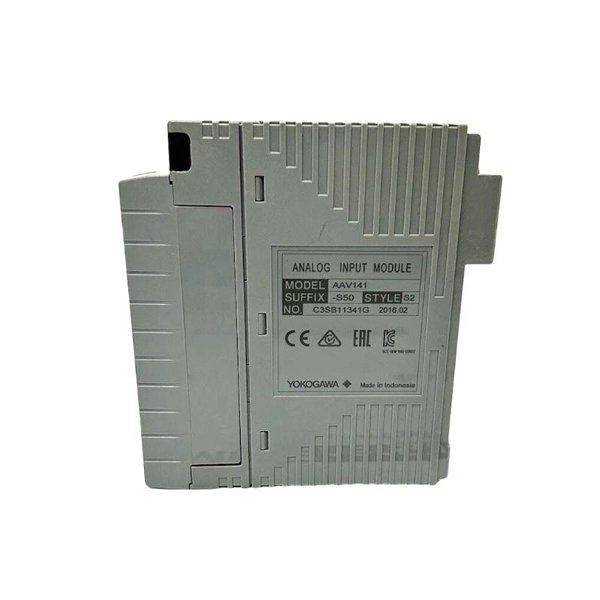

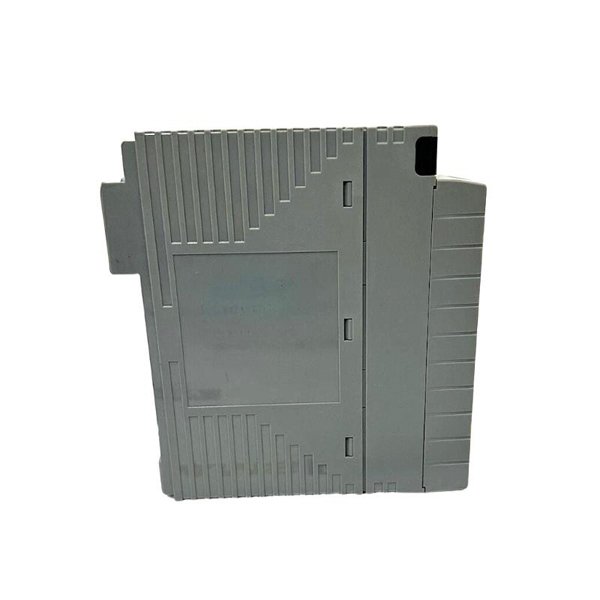

Yokogawa AAV141-S50 Analog Input Module

The Yokogawa AAV141-S50 Analog Input Module is a core component of the CENTUM distributed control system, designed to convert analog signals from various field instruments into precise digital data. This module supports a wide range of analog input types such as current (4-20 mA), voltage (0-10 V), and thermocouples, providing exceptional versatility for process control applications. Its design emphasizes high reliability and stable operation, even in harsh industrial environments. The module’s compact size allows for efficient use of space within control cabinets, while its robust construction ensures long-term durability. The AAV141-S50 is engineered to meet the demanding accuracy and safety requirements of industries like oil & gas, petrochemicals, power generation, and chemical processing.

Product Specifications

Product Applications

• Oil and Gas Industry: Monitoring critical process variables like pressure, temperature, and flow rates in refineries and pipelines.

• Chemical Plants: Managing analog inputs from sensors for chemical reactions and batch processes.

• Power Generation: Monitoring turbine parameters, boiler conditions, and environmental data.

• Water and Wastewater Treatment: Collecting analog data from sensors measuring pH, turbidity, and chemical dosing.

• Pharmaceutical Manufacturing: Ensuring precision data acquisition for controlled process environments.

• Food and Beverage Industry: Measuring analog signals from quality control instruments for production consistency.

Product Advantages

• High Precision and Stability: Maintains ±0.1% FS accuracy, enabling consistent and reliable process control.

• Multi-signal Compatibility: Accepts current, voltage, and thermocouple inputs, allowing integration with a broad range of field instruments.

• Enhanced Noise Immunity: Strong channel-to-channel and channel-to-earth isolation reduces noise interference, critical for industrial environments.

• Compact Design: Small size allows for high-density installation, saving valuable space in control panels.

• Robust Performance: Designed to operate reliably in wide temperature ranges and electrically noisy environments.

• Seamless System Integration: Fully compatible with Yokogawa CENTUM systems for smooth operation and maintenance.

FAQ

1. What thermocouple types does the AAV141-S50 support?

   It supports Types K, J, T, E, R, S, B, and N thermocouples.

2. Can the module handle both current and voltage signals simultaneously?

   Yes, it supports input of either current or voltage signals but each channel is configured for one type at a time.

3. What is the typical response time for an analog input signal conversion?

   The response time is approximately 100 milliseconds.

4. How does the module ensure signal integrity in electrically noisy environments?

   Through galvanic isolation between input channels and to earth, it effectively minimizes noise and interference.

5. What is the power requirement for the AAV141-S50 module?

   It requires a 24 V DC power supply typically provided by the host control system rack.

6. Is it possible to hot-swap this module during system operation?

   No, the module must be replaced only when the system is in a safe, powered-down state to prevent data loss.

7. What is the input accuracy of the module?

   The input accuracy is ±0.1% of the full-scale input range.

8. What kinds of isolation does the module provide?

   It offers isolation between channels as well as isolation between channels and earth ground.

9. Can this module be used with control systems other than Yokogawa CENTUM?

   It is primarily designed for Yokogawa CENTUM VP and CENTUM CS systems; compatibility with other systems is not guaranteed.

10. How does the module handle input signal ranges outside the specified limits?

    Input signals outside the specified ranges may cause inaccurate readings or damage; proper signal conditioning is required.
