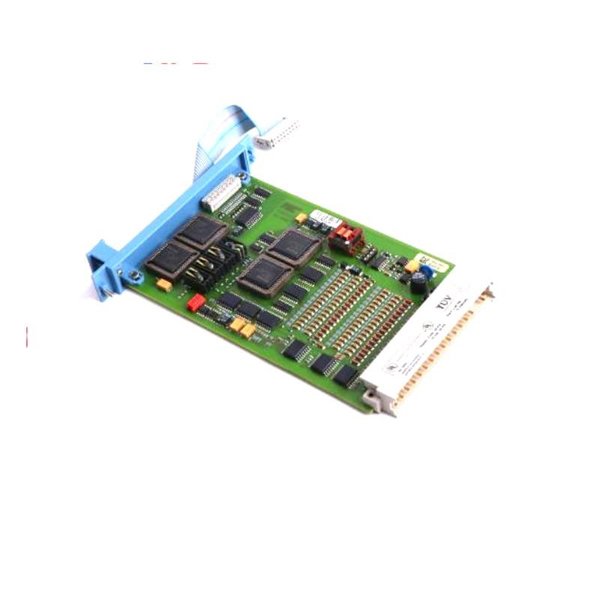

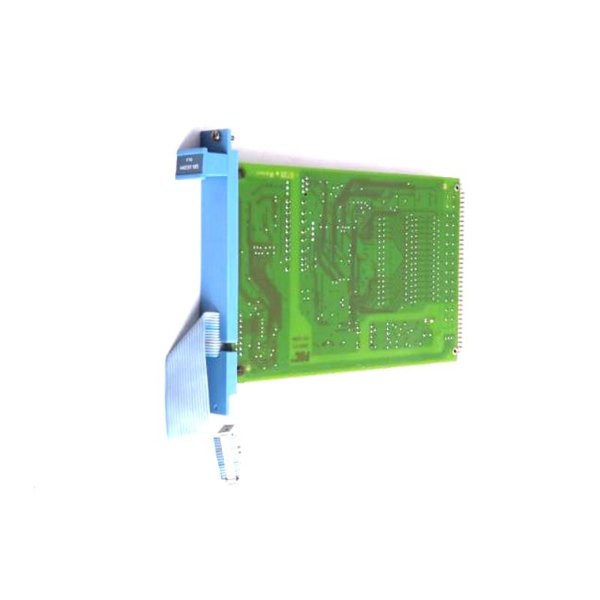

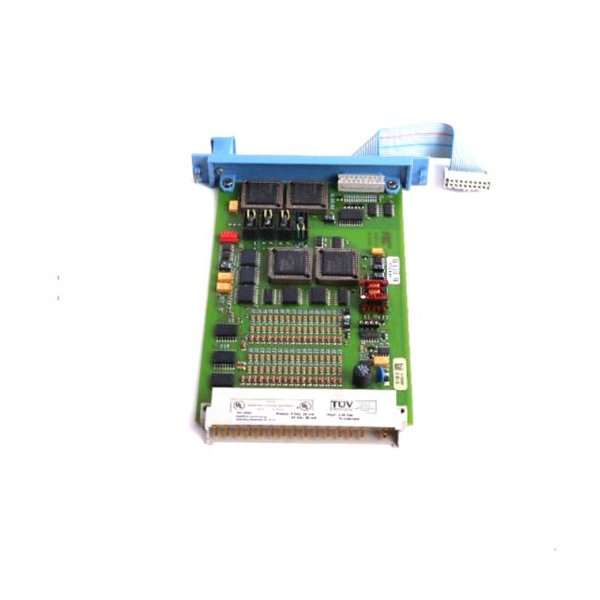

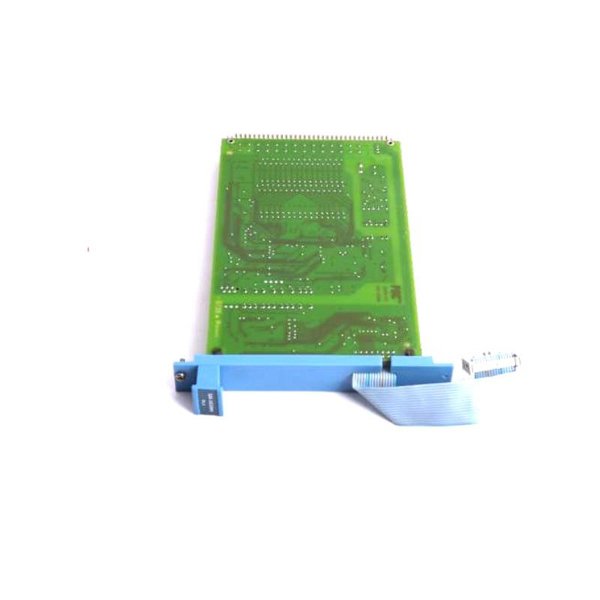

Honeywell FC-SIC2050 Controller

The Honeywell FC-SIC2050 is a high-performance I/O module designed for use in the Experion Process Knowledge System (PKS). As a part of Honeywell’s C300 and Safety Manager platforms, this module plays a critical role in signal interface and control by serving as a communication interface for field devices and system processors. Engineered for demanding industrial environments, the FC-SIC2050 provides reliable and deterministic communication paths, ensuring process safety and data integrity in real time.

It is commonly integrated in distributed control systems (DCS) and safety instrumented systems (SIS), where reliable signal conversion and digital processing are necessary. The module supports advanced diagnostics and is capable of operating under harsh conditions found in industries such as petrochemical, refining, power generation, and pharmaceuticals.

Product Advantages

• Robust Architecture: The FC-SIC2050 is built with Honeywell’s proven industrial-grade durability, capable of withstanding high-vibration and extreme-temperature environments.

• Real-Time Performance: Supports deterministic communication and rapid signal processing, critical for time-sensitive process control applications.

• Integrated Diagnostics: Built-in diagnostics provide continuous monitoring of I/O channels, aiding in predictive maintenance and reducing unplanned downtime.

• Modular Integration: Easily fits into Honeywell’s C300 controller-based architecture, supporting quick installation, expansion, or replacement.

• Enhanced System Safety: When used with Honeywell Safety Manager, it supports fail-safe configurations and certified SIL-rated implementations.

• Flexible Protocol Support: Compatible with standard fieldbus protocols and adaptable to a wide range of field instruments.

Technical Specifications

Product Applications

• Petrochemical Plants: Interfaces with field sensors for monitoring pressures, levels, and flows in hazardous process areas.

• Oil & Gas Refining: Acts as a control signal buffer and interface between digital logic systems and field equipment.

• Power Generation: Supports turbine monitoring, generator safety shutdown systems, and load balancing operations.

• Pharmaceutical Manufacturing: Used in high-precision batch control and data integrity assurance.

• Water Treatment Plants: Provides reliable interface for distributed pumps, valves, and chemical dosing units.

• Marine and Offshore Facilities: Functions in control panels for critical safety interlocks and alarm systems.

Installation Instructions

1. Mounting: Install the FC-SIC2050 on a standard DIN rail in an upright position within the control cabinet.

2. Power Connection: Supply 24 VDC through dedicated terminals, ensuring the correct polarity.

3. Signal Wiring: Connect field I/O wiring to designated terminal blocks, following the wiring diagram provided by Honeywell.

4. System Integration: Use the Experion configuration software to define module parameters, assign I/O points, and set diagnostics.

5. Commissioning: Validate I/O channel operation, run self-tests, and verify connectivity with the control processor.

6. Safety Precautions: Ensure module is powered off during installation. Follow ESD safety procedures when handling.

FAQ

Q1: What is the primary function of the FC-SIC2050?

A1: It acts as a signal interface module, enabling communication between field devices and control processors in industrial automation systems.

Q2: Is the FC-SIC2050 suitable for safety-critical applications?

A2: Yes, it is certified for SIL-rated applications when used within Honeywell’s Safety Manager platform.

Q3: How many channels does the FC-SIC2050 support?

A3: It supports up to 16 configurable digital or analog input/output channels.

Q4: Can the module operate in extreme environments?

A4: Absolutely. It has an operating temperature range of -40°C to +70°C and is built for industrial conditions.

Q5: Is hot-swapping supported for this module?

A5: No, the FC-SIC2050 should be powered down during installation or replacement to ensure safety and avoid damage.

Q6: How is diagnostic data retrieved from the module?

A6: Diagnostics can be accessed via the Experion system interface, showing status and fault logs per channel.

Q7: What type of mounting is required for this module?

A7: The module is designed for standard DIN rail mounting within a protected cabinet.

Q8: Can this module work with third-party systems?

A8: While optimized for Honeywell systems, limited integration is possible with third-party DCS/PLC using standard protocols.

Q9: How is firmware updated on the FC-SIC2050?

A9: Firmware updates are applied via Honeywell’s engineering software with system downtime required during the process.

Q10: What certifications does the FC-SIC2050 hold?

A10: It holds CE, ATEX, SIL (IEC 61508), and RoHS certifications, suitable for global deployment.
