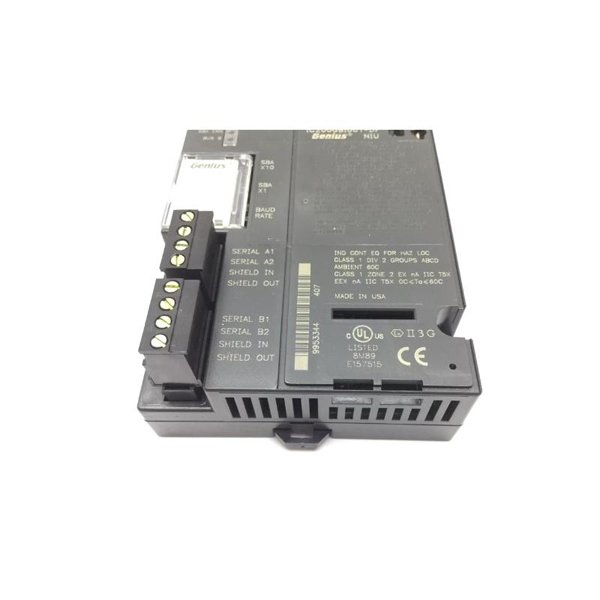

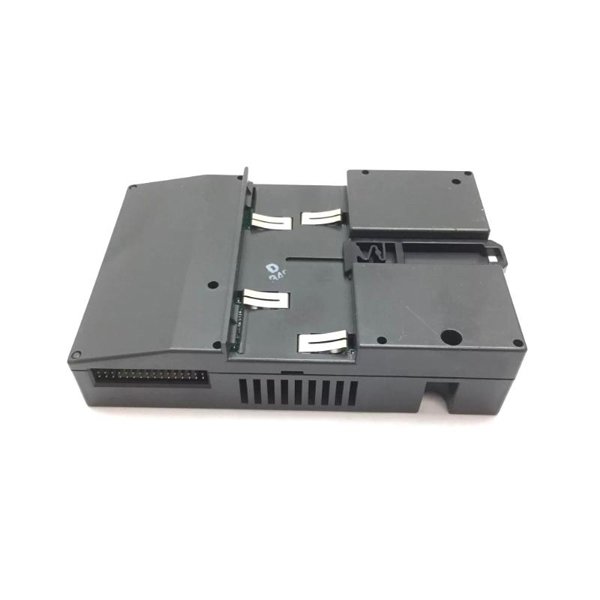

General Electric IC200GBI001 Network Interface Module

The GE IC200GBI001 Network Interface Module is a powerful component designed for the VersaMax PLC system. This module enables seamless communication between the VersaMax PLC and other systems over a network, offering robust and high-speed data transfer capabilities. The IC200GBI001 is ideal for automating systems that require distributed control or integration with larger networked environments. It ensures smooth data exchange between control systems, field devices, and supervisory systems, making it an essential component for advanced industrial automation.

Product Specifications

Product Applications

The IC200GBI001 Network Interface Module is used in various automation and control environments to enhance communication between PLCs, supervisory systems, and remote devices. Some key applications include:

• Manufacturing Automation: Enables network communication between multiple PLCs and remote I/O systems on the factory floor, improving operational efficiency and data integration.

• Building Automation: Connects control systems for HVAC, lighting, and security, ensuring seamless communication across building management systems.

• Process Control: Facilitates real-time data transmission for complex systems in industries such as chemical, oil and gas, and power generation.

• Material Handling Systems: Integrates with AGVs (Automated Guided Vehicles) and sorting systems, allowing real-time control and monitoring over a network.

Product Advantages

1. Enhanced Communication: The module supports Ethernet protocols, including TCP/IP and Modbus TCP, which ensures high-speed communication between control systems and field devices.

2. Network Integration: The IC200GBI001 allows the VersaMax PLC to integrate with larger control networks, such as SCADA and HMI systems, for distributed control.

3. Flexible Connectivity: With both 10 and 100 Mbps Ethernet ports, this module offers flexibility in terms of network speeds and connectivity options.

4. Easy Installation: The module features multiple mounting options (DIN rail or panel), making installation simple and versatile for various control panel designs.

5. Compact Design: Its small form factor makes it suitable for space-constrained installations, without compromising on functionality or performance.

6. Reliability: The module’s rugged design and industrial-grade specifications ensure reliable performance in harsh environments, with resistance to shock and vibration.

FAQ

1. What is the purpose of the IC200GBI001 Network Interface Module?

   • The IC200GBI001 enables Ethernet communication between a VersaMax PLC and other networked systems or devices, enhancing network integration for industrial automation.

2. What network protocols does the IC200GBI001 support?

   • The module supports Ethernet TCP/IP, Modbus TCP, and other industrial network protocols, ensuring broad compatibility with different systems.

3. How does the IC200GBI001 communicate with other devices?

   • It communicates over Ethernet, allowing high-speed data transfer between control systems and remote I/O devices or supervisory systems.

4. Can the IC200GBI001 be used with both 10Mbps and 100Mbps networks?

   • Yes, the module supports both 10Mbps and 100Mbps Ethernet networks, making it adaptable to different communication speeds.

5. What are the mounting options for this module?

   • The IC200GBI001 can be mounted on a DIN rail or directly onto a panel, providing flexibility for various installations.

6. What is the power consumption of the module?

   • The IC200GBI001 consumes 100 mA from the 5V backplane.

7. What are the dimensions of the IC200GBI001?

   • The dimensions is 65 x 128 x 50 mm.

8. What is the weight of the IC200GBI001 module?

   • The module weighs 0.15 kg.

9. What is the operating temperature range of the module?

   • The module operates in temperatures ranging from -20°C to +60°C, suitable for most industrial environments.

10. Does the IC200GBI001 have status indicators?

• Yes, it features three LEDs that indicate power, communication status, and activity, making it easier to troubleshoot and monitor the module.
