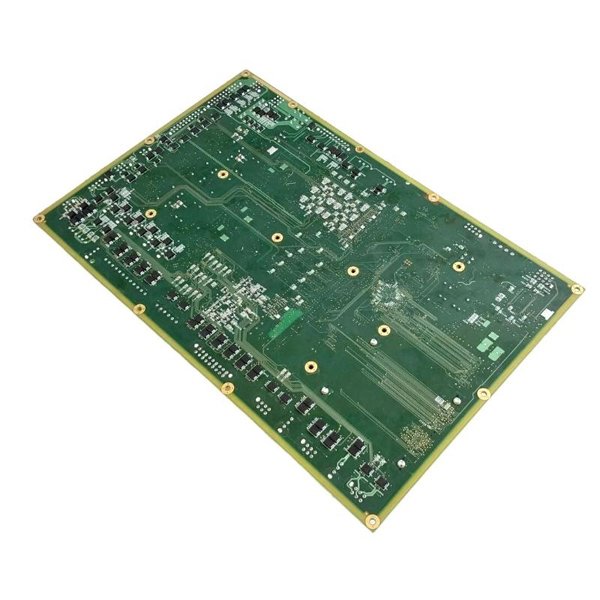

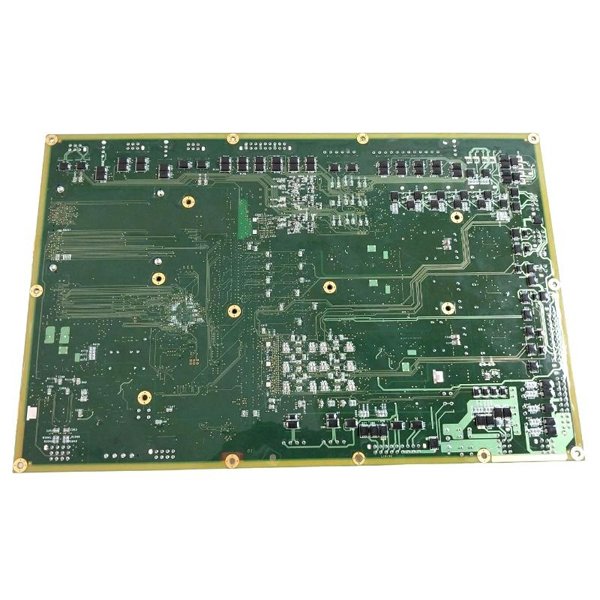

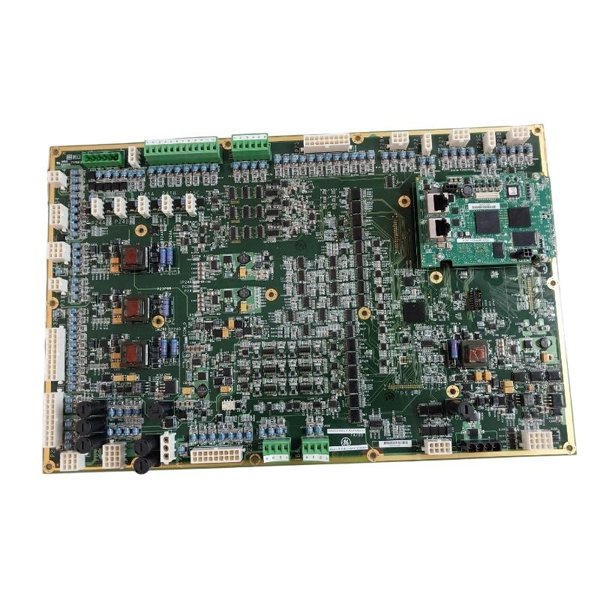

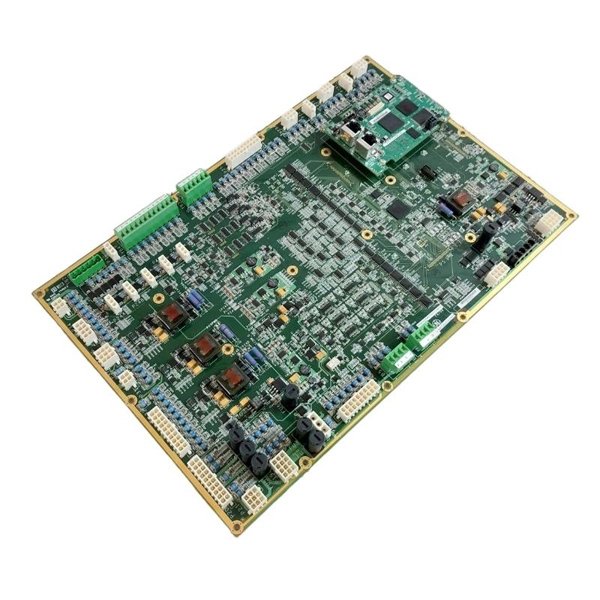

General Electric IS200WETAH1AFC Printed Circuit Board

The GE IS200WETAH1AFC Printed Circuit Board (PCB) is a precision-engineered interface module designed for industrial-grade signal conditioning and control integration within the Mark VIe and EX2100 control systems. Manufactured by General Electric (GE), this board is part of the Wide-range Electronic Transducer Assembly (WETA) series, optimized for analog and digital signal processing in power generation and heavy industrial automation.

It functions as a critical intermediary between field-level instrumentation and high-level controllers, handling a wide range of input and output signals while providing robust electrical isolation and protection. With enhanced circuit design and GE’s proprietary technology, the IS200WETAH1AFC ensures reliable performance even in challenging electrical environments, including generator excitation systems, turbine controllers, and distributed control environments.

Product Specifications

Product Applications

• Turbine Control Systems (Gas & Steam)

  Converts and isolates field analog signals such as temperature, vibration, and pressure sensors for safe input to Mark VIe controllers.

• Generator Excitation Systems (EX2100)

  Acts as a key signal interface, linking analog sensors and field transducers with the excitation control system.

• Power Generation Plants

  Utilized for monitoring and control interfaces in combined-cycle, fossil-fuel, and nuclear power plants.

• SCADA Systems

  Interfacing analog and discrete field signals with supervisory control and data acquisition modules.

• Oil, Gas & Petrochemical Industries

  Ensures electrically isolated data acquisition in harsh operating conditions, supporting system diagnostics.

• Process Automation Systems

  Conditions raw field signals to ensure accurate and consistent readings in DCS/PLC-based setups.

Product Advantages

• High Noise Immunity

  Designed with robust filtering and shielding to protect against industrial electrical interference.

• Advanced Fault Diagnostics

  Built-in self-monitoring capabilities provide real-time fault status, reducing downtime and simplifying troubleshooting.

• Enhanced Electrical Isolation

  Optical and magnetic isolation enhances equipment safety and protects downstream controllers from transient surges.

• Plug-and-Play System Integration

  Seamlessly integrates with Mark VIe and EX2100 platforms with minimal configuration requirements.

• Redundant Configuration Support

  Supports hot-swap and dual-redundant operations to meet high availability standards in critical systems.

• Extended Environmental Tolerance

  Capable of operating in wide temperature and humidity ranges, making it suitable for global deployment.

FAQ

1. What type of signal inputs can the IS200WETAH1AFC handle?

   It supports analog inputs (e.g., 4–20 mA, 0–5V) and discrete digital signals for transducers and field instruments.

2. Does the module support signal isolation?

   Yes, all input channels are isolated via optical and magnetic isolation methods to ensure signal integrity.

3. How is configuration performed for this board?

   Configuration and calibration are handled through GE’s ToolboxST software, often in conjunction with controller settings.

4. Can this board operate in redundant system architectures?

   Yes, the board fully supports redundant deployment in Mark VIe or EX2100 setups with automatic failover.

5. What kind of fault detection does it support?

   It features onboard diagnostics including overvoltage protection, short-circuit detection, and signal integrity monitoring.

6. Is the IS200WETAH1AFC hot-swappable?

   While the board supports redundancy, hot-swapping depends on the enclosure and system configuration. Typically, it requires system-safe disconnection procedures.

7. How are analog signals conditioned on this board?

   The board includes precision filtering and amplification stages to ensure clean analog output to the controller.

8. What is the maximum number of signals the board can interface?

   The board can handle multiple channels (typically 8–16 depending on system use) with isolated input/output paths.

9. Does it support fast signal acquisition?

   Yes, signal acquisition is optimized for low-latency processing and fast response times in turbine applications.

10. Is the board firmware-upgradeable?

    Yes, firmware can be updated or patched via GE’s control tools for compatibility or performance enhancements.
