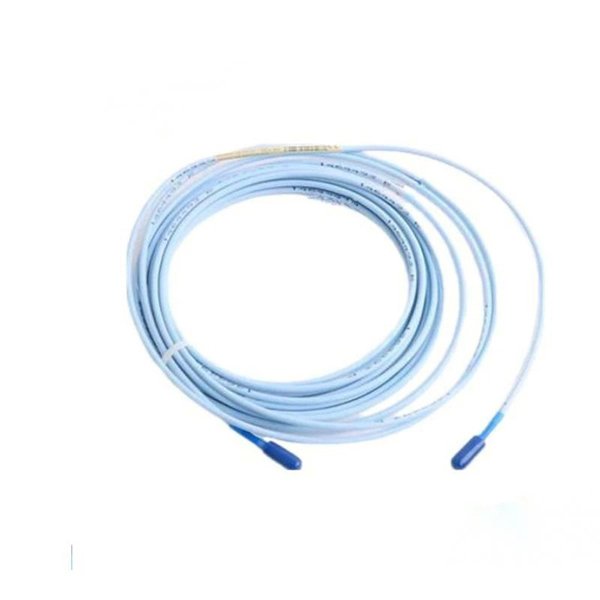

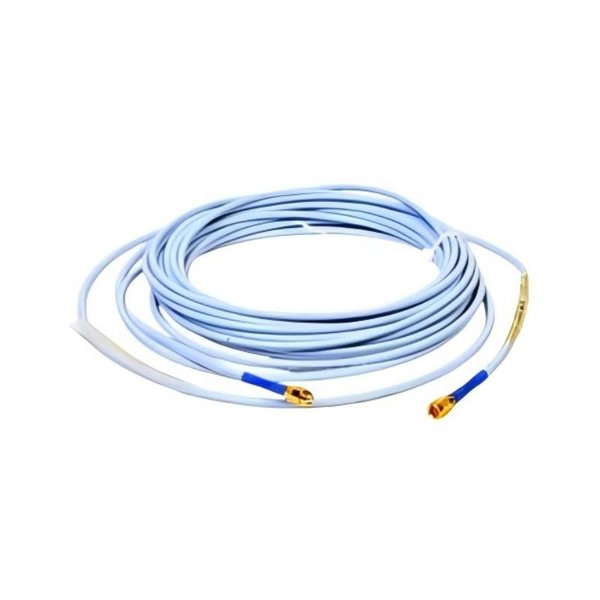

Bently Nevada 330130-080-00-00 3300 XL Standard Extension Cable

The Bently Nevada 330130-080-00-00 is a standard extension cable used as part of the 3300 XL 8 mm Proximity Transducer System. It is engineered for use with non-contacting proximity probes and Proximitor sensors, enabling precise vibration and position monitoring in critical rotating machinery. This specific model has a cable length of 8.0 meters.

Applications

• Vibration and position monitoring in turbines, compressors, pumps, and motors

• Shaft speed and Keyphasor measurements

• Use in hazardous environments with ATEX, CSA, and IECEx compliance

• Integration in condition monitoring systems for predictive maintenance

Product Advantages

• Reliable Interchangeability: Fully compatible with all 3300 XL and legacy 3300 8 mm/5 mm systems

• High Mechanical Strength: Patented CableLoc and connector design with 330 N (75 lbf) pull strength

• Enhanced Environmental Protection: Optional FluidLoc to prevent oil migration

• User-Friendly Connectors: Gold-plated ClickLoc connectors with finger-tight locking

• Durable Design: Resistant to high temperature, pressure, and electromagnetic interference

Technical Specifications

FAQ

Q1: What is the primary use of the 330130-080-00-00 cable?

A1: It connects the proximity probe to the Proximitor sensor in the 3300 XL 8 mm system.

Q2: Can this cable be used in high-temperature environments?

A2: Yes, the standard version supports up to +177°C. For higher temperatures, ETR versions are available.

Q3: Is the cable compatible with older 3300 series systems?

A3: Yes, it is backward compatible with non-XL 5 mm and 8 mm systems.

Q4: How do I ensure environmental protection?

A4: Use optional connector protectors or FluidLoc versions to seal the cable ends.

Q5: What kind of connectors does this cable use?

A5: It uses gold-plated ClickLoc miniature coaxial connectors.

Q6: Is this cable armored?

A6: The standard model is not armored. Armored versions are available under different part numbers.

Q7: What is the significance of the CableLoc design?

A7: It enhances mechanical strength, ensuring a secure bond and high pull resistance.

Q8: Can I install the cable without special tools?

A8: Yes, the ClickLoc connectors are tool-free and click to confirm proper installation.

Q9: What happens if the cable exceeds the minimum bend radius?

A9: Bending below the 25.4 mm radius may compromise signal integrity or damage the cable.

Q10: Is this cable certified for use in hazardous areas?

A10: Yes, with appropriate approvals (CSA, ATEX, IECEx), it meets global hazardous area standards.
