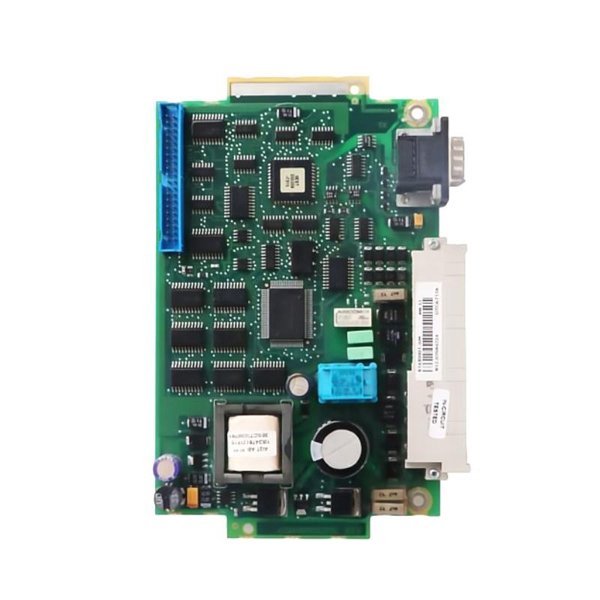

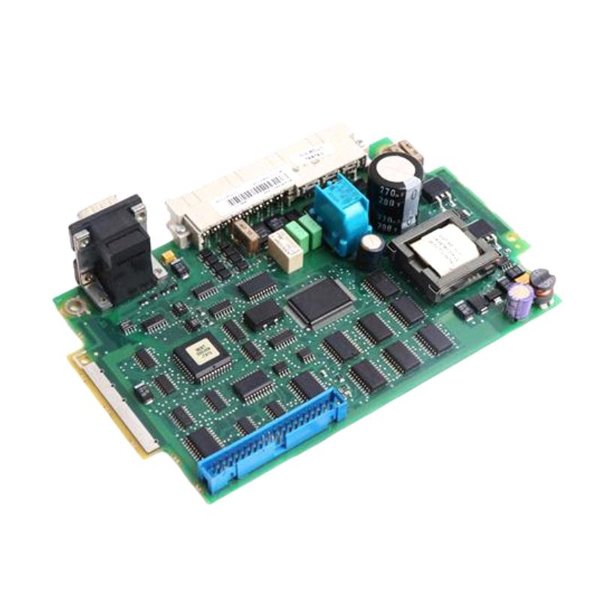

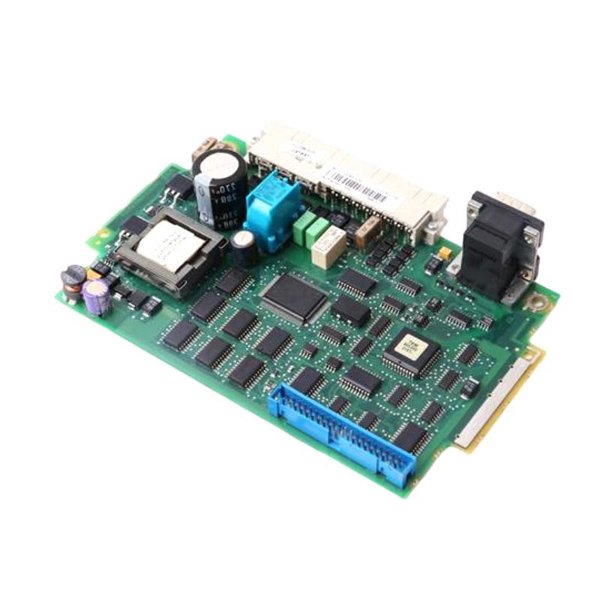

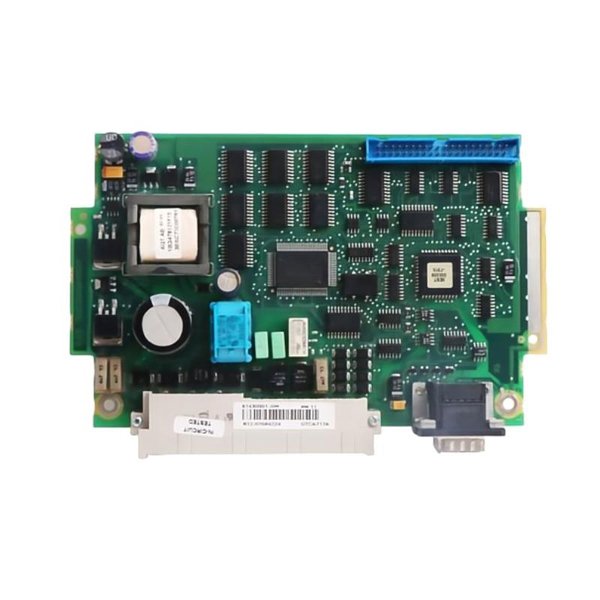

ABB DTCA717A 61430001-WH Analog Output Module

The ABB DTCA717A 61430001-WH is a high-performance analog output module engineered for integration within ABB’s INFI 90, Symphony DCI, and Advant OCS distributed control systems. This module plays a pivotal role in translating digital process values into analog control signals used to drive actuators, valves, and other field devices. Built with precision, it offers robust output accuracy, low signal distortion, and exceptional reliability across various industrial environments. The DTCA717A helps operators implement fine-tuned process control strategies and is a trusted component in mission-critical applications.

Product Specifications

Product Applications

The DTCA717A Analog Output Module is commonly deployed in a variety of industrial control systems where precise analog signaling is required. Key application areas include:

• Power Generation Plants: For controlling turbine valves and speed regulators.

• Oil & Gas Facilities: For analog signal interfacing with pressure controllers and flow regulators.

• Chemical and Petrochemical Plants: Used for dosage control and chemical feed systems.

• Water and Wastewater Treatment: For regulating pumps and treatment processes.

• Pulp & Paper Industries: Analog output for paper thickness, speed, and moisture control.

• Metals Processing Plants: For furnace temperature modulation and roller speed control.

Product Advantages

• High Precision Analog Output

  Offers fine resolution for critical applications requiring smooth and accurate signal generation.

• Galvanic Isolation for Each Channel

  Ensures electrical safety, signal integrity, and protection against transient voltages or ground loops.

• Flexible Output Configuration

  Supports both voltage and current output types, allowing adaptation to varied process instrumentation.

• Durable Industrial Design

  Built to perform reliably under extended operating temperatures, high humidity, and vibration-prone environments.

• System Redundancy Support

  Can be integrated within redundant architectures for increased fault tolerance.

• Low Maintenance Requirements

  Stable output circuits reduce the need for frequent calibration or hardware replacement.

Frequently Asked Questions (FAQ)

1. What is the purpose of the DTCA717A in a control system?

It converts digital control signals into analog outputs, typically 4–20 mA or 0–10 V, used to command field actuators like control valves.

2. How many channels does the module provide?

The DTCA717A features 8 independent analog output channels.

3. Can I configure the output type per channel?

Yes, each channel can be configured for current or voltage output depending on the system setup.

4. Is the module hot-swappable?

No, the module should be powered down or isolated from the system before removal or installation.

5. Does this module require calibration?

It comes factory-calibrated. Calibration checks may be performed periodically depending on plant maintenance policies.

6. What tools are needed to configure the DTCA717A?

ABB’s engineering tools like Composer or Control Builder are commonly used to configure and assign channels.

7. Is the DTCA717A compatible with legacy ABB systems?

Yes, it supports backward compatibility with INFI 90 and Advant OCS systems.

8. Can the module operate in a redundant configuration?

Yes, it supports operation within redundant control systems when paired with suitable hardware.

9. What protections are built into the module?

It includes overvoltage, short-circuit, and isolation protection for each channel.

10. What’s the difference between DTCA717A and other analog output modules?

The DTCA717A is designed for specific ABB platforms and offers channel-level isolation and high accuracy, distinguishing it from more generic output modules.
