Bently Nevada 3500/05-01-01-01-00 3500/05 System Rack

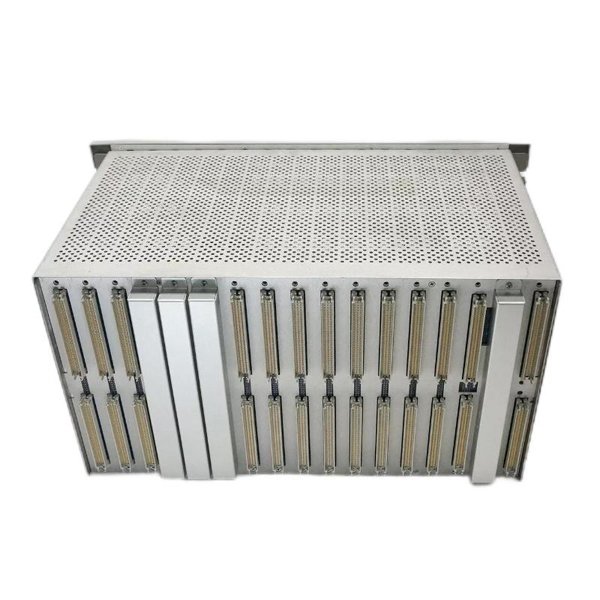

The Bently Nevada 3500/05-01-01-01-00 system rack is a central component of the 3500 machinery protection system, offering structural support and interconnection for up to 14 monitoring and protection modules. Designed according to standard 19-inch rack specifications, this robust enclosure is constructed from industrial-grade materials to ensure durability and stability in high-demand environments such as oil refineries, gas compression stations, thermal power plants, and large-scale manufacturing facilities.

This model includes enhanced rear I/O accessibility, simplifying cable routing and serviceability in tight control room layouts. The integrated backplane allows secure and efficient signal and power distribution between modules. It is ideal for use in mission-critical monitoring systems where long-term system reliability, modularity, and minimal downtime are essential.

Technical Specifications

Applications

The 3500/05-01-01-01-00 rack is purpose-built for high-reliability machinery condition monitoring applications in:

• Oil & Gas Facilities

  Continuous vibration and proximity monitoring for pumps, compressors, and turbines.

• Power Generation Plants

  Integration with protection modules for gas, steam, and hydro turbines.

• Petrochemical Refineries

  Used in hazardous zones to ensure operational uptime of rotating assets.

• Manufacturing Lines

  Supports real-time diagnostics of motors, fans, and gear systems.

• Water and Wastewater Treatment

  Deployed with sensors and modules to monitor flow machines and mechanical drives.

• Steel and Mining Industries

  Monitors conveyors, crushers, and rotating plant machinery to avoid costly failures.

Advantages

• Rear I/O Accessibility

  Simplifies wiring, troubleshooting, and expansion by allowing cable connections from the back.

• Scalable Design

  Accommodates up to 14 modules, enabling system expansion based on plant needs.

• Tool-Free Module Insertion

  Plug-and-play module installation and removal minimize service downtime.

• Rugged Construction

  Withstands vibration, high temperatures, and harsh industrial conditions.

• Passive Cooling

  Fanless design ensures quiet operation and long-term reliability.

• Centralized Grounding System

  Enhances signal integrity and system safety.

• Standardized Dimensions

  Compatible with standard 19-inch enclosures and cabinets, simplifying infrastructure planning.

Frequently Asked Questions (FAQ)

Q1: How many modules can this rack support?

A1: It can support up to 14 monitoring and protection modules.

Q2: What does “rear I/O access” mean in this model?

A2: It allows input/output cables to be connected from the back of the rack, improving cable management.

Q3: Can this rack be used with any 3500 module?

A3: Yes, it is fully compatible with all standard Bently Nevada 3500 modules.

Q4: Does the rack include its own cooling system?

A4: It relies on passive ventilation and does not include active fans.

Q5: Is this rack suitable for hazardous environments?

A5: Yes, when used with appropriate modules, it complies with industrial safety standards.

Q6: What is the weight of the rack?

A6: The rack weighs approximately 4.5 kg.

Q7: Can this rack be mounted in a standard control cabinet?

A7: Yes, it is designed for standard 19-inch rack cabinets.

Q8: What materials are used for its construction?

A8: It is constructed from anodized aluminum and stainless steel for corrosion resistance.

Q9: Does the rack include a built-in grounding bus?

A9: Yes, grounding is integrated into the rack structure.

Q10: What certifications does it support?

A10: CE, UL, and CSA certifications are applicable when configured as part of a complete 3500 system.
