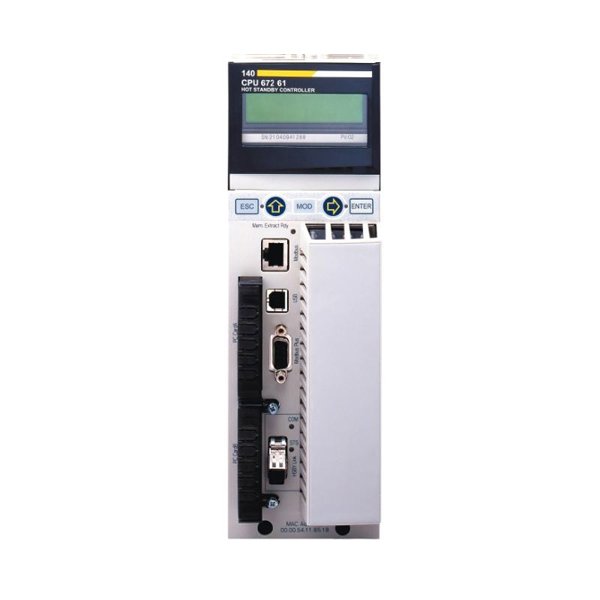

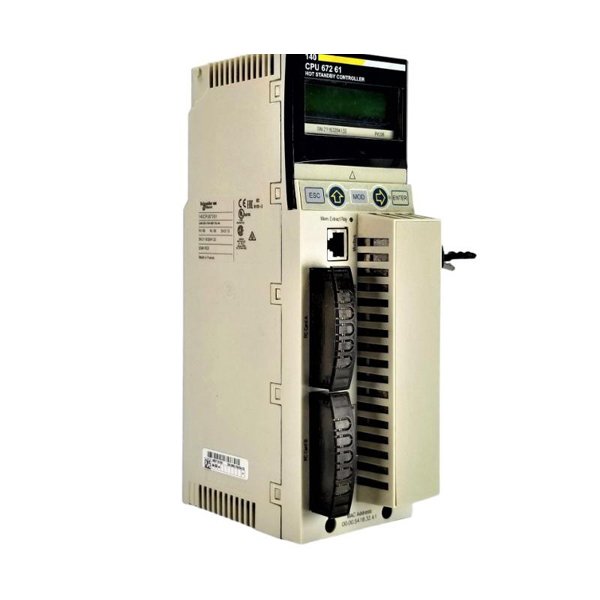

Schneider 140CPU67261C Unity Hot Standby Processor

The Schneider 140CPU67261C Unity Hot Standby Processor is an advanced and reliable central processing unit (CPU) designed for critical industrial applications that require continuous availability and high system reliability. As part of Schneider Electric’s Unity series of programmable logic controllers (PLCs), the 140CPU67261C processor offers a hot standby feature that ensures redundancy and uninterrupted control even in the event of a failure.

This Unity Hot Standby Processor is ideal for industries where system uptime is critical and any downtime can lead to significant operational losses. The 140CPU67261C ensures high availability by maintaining a backup processor in parallel, allowing for seamless transition from the active to the standby processor in the event of a failure.

The processor is designed to work with the Modicon M580 platform and provides seamless communication and integration with other Modicon M580 components. It is well-suited for high-demand applications in industries such as manufacturing, energy management, infrastructure, and process control.

Product Specifications

Below are the key specifications for the Schneider 140CPU67261C Unity Hot Standby Processor:

Applications of the Product

The Schneider 140CPU67261C Unity Hot Standby Processor is used in various industrial applications where system redundancy and high availability are critical. Some key applications include:

• Critical Manufacturing Systems: In manufacturing facilities, particularly in industries where uptime is crucial (such as automotive production or electronics manufacturing), the hot standby feature ensures that if one processor fails, the backup processor immediately takes over, preventing any disruption in operations.

• Energy Management: In industries dealing with energy distribution, such as power plants or substations, the 140CPU67261C ensures that energy systems continue to run smoothly, even in the event of a system failure, ensuring continuous monitoring and control.

• Process Control Systems: The 140CPU67261C is ideal for process control applications in chemical, pharmaceutical, or food and beverage industries. The redundancy feature guarantees no interruption in process control, even in mission-critical systems.

• Infrastructure and Utilities: The processor is widely used in water treatment plants, oil and gas facilities, and transportation control systems, ensuring that all control systems remain operational and continue functioning without failure.

• Building Automation: The processor’s redundancy capability makes it suitable for building automation systems where continuous monitoring and control of systems such as lighting, HVAC, and security are necessary.

• Telecommunications: The 140CPU67261C is also employed in telecommunication systems, ensuring high availability and redundancy to avoid disruptions in communication networks.

Advantages of the Product

The Schneider 140CPU67261C Unity Hot Standby Processor offers several benefits that make it ideal for high-availability applications in industrial environments:

• High Availability and Redundancy: The hot standby mode ensures that the 140CPU67261C processor provides continuous service by switching to a backup processor in case of a failure, offering high system reliability and zero downtime.

• Fast Processor Speed: Equipped with a 1 GHz processor, the 140CPU67261C ensures quick response times and efficient data processing, even in complex control systems.

• Wide Communication Compatibility: The processor supports Ethernet, Modbus, and Serial Communication ports, enabling seamless integration with other Modicon components and industrial systems for comprehensive control.

• Flexible System Expansion: Supporting up to 32 I/O modules, the 140CPU67261C is highly scalable, allowing users to easily expand their system as required for large-scale applications.

• Compact and Robust Design: With dimensions of 110 x 185 x 325 mm and a weight of 1.472 kg, the processor features a compact and rugged design that is easy to mount on DIN rails, making installation and system setup simpler.

• Energy-Efficient: Operating on a 24 V DC power supply, the processor is energy-efficient, reducing operational costs without sacrificing performance or functionality.

• Wide Temperature Range: The 140CPU67261C can operate within a temperature range of -10°C to +60°C, making it suitable for both indoor and outdoor industrial environments.

Frequently Asked Questions (FAQ)

1. What is the main function of the Schneider 140CPU67261C Unity Hot Standby Processor?

   • The 140CPU67261C processor provides continuous control and redundancy for industrial systems by enabling hot standby, ensuring uninterrupted operations even during processor failures.

2. What is hot standby mode?

   • Hot standby mode involves two processors running in parallel, where one is active and the other is a backup. If the active processor fails, the backup processor immediately takes over, ensuring no system downtime.

3. How many I/O modules can the 140CPU67261C processor support?

   • The processor can support up to 32 I/O modules.

4. What is the power supply requirement for the 140CPU67261C processor?

   • The 140CPU67261C operates on a 24 V DC power supply.

5. What communication protocols does the processor support?

   • The processor supports Ethernet, Modbus, and Serial Communication protocols.

6. What is the processing speed of the 140CPU67261C?

   • The processor operates with a 1 GHz speed, providing fast data processing for high-speed control.

7. What is the operating temperature range for the 140CPU67261C?

   • The processor operates in a temperature range from -10°C to +60°C.

8. How is the 140CPU67261C mounted?

   • The processor is mounted on a DIN Rail, which simplifies installation in industrial control panels.

9. What industries use the 140CPU67261C Unity Hot Standby Processor?

   • The processor is used in industries such as manufacturing, energy management, process control, infrastructure, and building automation.

10. What are the dimensions of the 140CPU67261C?

• The processor measures 110 x 185 x 325 mm and weighs 1.472 kg.
