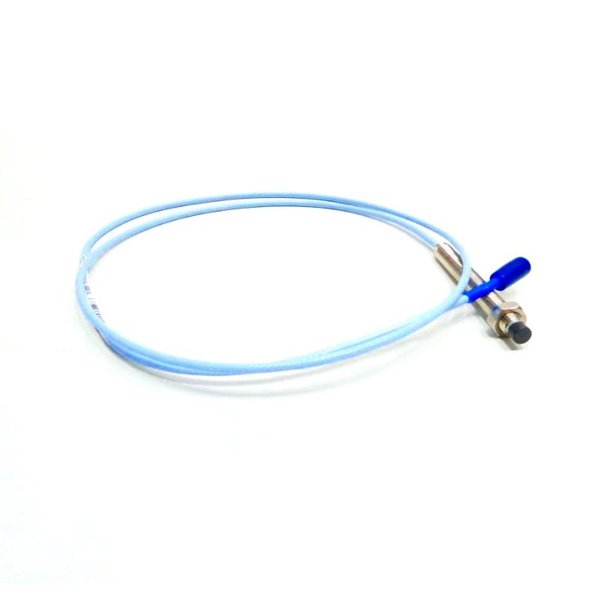

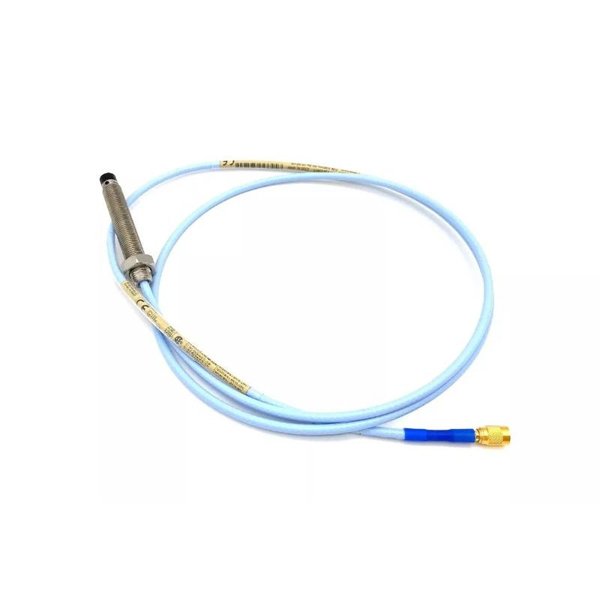

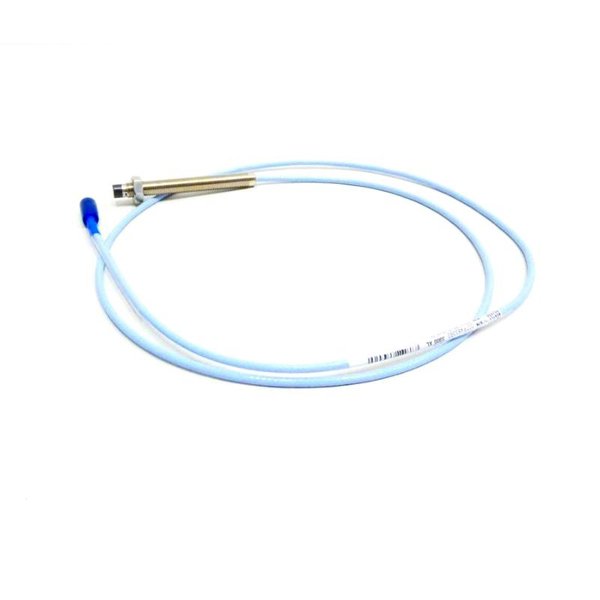

Bently Nevada 330101-00-24-10-12-CN 3300 XL 8mm Proximity Probe

The Bently Nevada 330101-00-24-10-12-CN 3300 XL 8mm Proximity Probe is designed for precise shaft vibration and position measurement in rotating machinery. As part of the 3300 XL series, it provides reliable eddy-current sensing with high linearity, superior temperature stability, and compliance with API 670 requirements. It ensures accurate monitoring for critical equipment such as turbines, compressors, and pumps.

Technical Specifications

Applications

• Monitoring shaft vibration in turbines, compressors, motors, and pumps.

• Position measurement of fluid-film bearing machinery.

• Protection of critical rotating equipment through early fault detection.

• Integration with Bently Nevada monitoring systems for API 670 compliant solutions.

Advantages

• High accuracy and linearity over the full measurement range.

• Robust mechanical design with improved durability compared to 5mm probes.

• Full component interchangeability across the 3300 XL 8mm system.

• Excellent immunity to temperature variations and electromagnetic interference.

• Compliance with international machinery protection standards.

• ClickLoc connector ensures secure, vibration-resistant connections.

FAQ

Q1: What is the primary function of the 330101-00-24-10-12-CN probe?

A1: It measures shaft vibration and position using eddy-current sensing, providing both dynamic and static data for rotating machinery.

Q2: What is the benefit of the 8mm probe compared to the 5mm version?

A2: The 8mm probe offers greater robustness, longer service life, and better physical durability in harsh industrial environments.

Q3: Can this probe be directly interchanged with other 3300 XL 8mm probes?

A3: Yes, all probes, extension cables, and sensors within the 3300 XL 8mm family are fully interchangeable without recalibration.

Q4: Does the probe comply with API 670 standards?

A4: Yes, it is fully compliant with API 670 requirements for machinery protection, linearity, and environmental performance.

Q5: What type of connector is used in this model?

A5: It uses a miniature coaxial ClickLoc connector with FluidLoc cable, designed for secure and fluid-resistant connections.

Q6: What is the linear measurement range of this probe?

A6: The probe provides a linear measurement range of approximately -2 to -19 mm.

Q7: In what environments can the probe operate?

A7: It operates in temperatures from -35 °C to +180 °C and is designed for use in industrial and hazardous areas.

Q8: What is the total cable length for this probe configuration?

A8: The probe comes with a 1.0 meter (3.3 ft) integral cable.

Q9: What is the approximate weight of this probe?

A9: The total weight of this probe is 0.323 kg.

Q10: What machinery types are best suited for this probe?

A10: It is ideal for turbines, compressors, pumps, and motors with fluid-film bearings requiring high-accuracy vibration monitoring.
