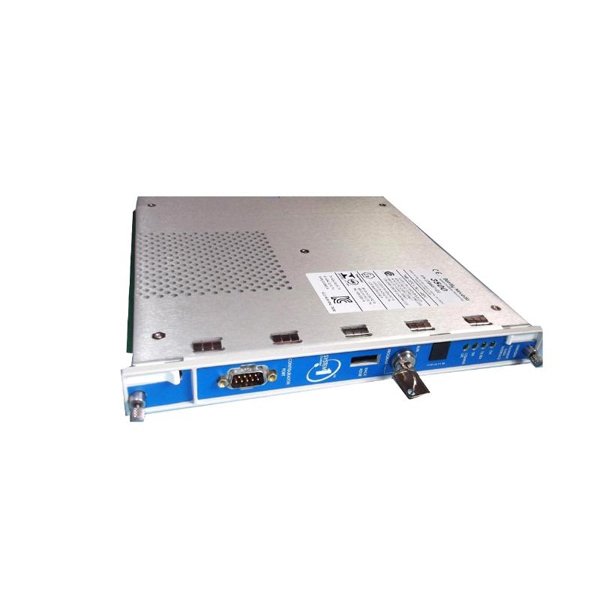

Bently Nevada 3500/22-01-01 Transient Data Interface Module

The Bently Nevada 3500/22-01-01 Transient Data Interface (TDI) Module serves as a critical component within the 3500 Series Machinery Protection System. Designed to interface between the 3500 monitoring system and compatible software such as System 1® Condition Monitoring and Diagnostic software, the TDI module combines the functionalities of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communication processor. Installed in the slot adjacent to the power supplies of a 3500 rack, the TDI facilitates continuous collection of steady-state and transient dynamic data, transmitting this information via Ethernet to host software for analysis.

Product Specifications

Product Applications

The Bently Nevada 3500/22-01-01 TDI Module is utilized across various industrial sectors to provide reliable data interface for machinery protection systems. Typical applications include:

• Power Generation Facilities: Facilitating data collection for monitoring systems in power plants.

• Oil and Gas Industry: Providing data interface for monitoring equipment in refineries and offshore platforms.

• Chemical Processing Plants: Enabling data collection for control systems that monitor chemical processes.

• Pulp and Paper Industry: Supplying data interface to automation systems in paper mills.

• Automotive Manufacturing: Facilitating data collection for machinery protection systems on assembly lines.

• Water Treatment Plants: Providing data interface for monitoring and control systems in water purification processes.

Product Advantages

• Integrated Functionality: Combines the roles of a Rack Interface Module and a communication processor, streamlining system architecture.

• Ethernet Connectivity: Offers 10Base-T/100Base-TX Ethernet connectivity for efficient data transmission.

• Robust Environmental Tolerance: Operates effectively in a wide temperature range and high humidity conditions, suitable for demanding industrial environments.

• Compact Design: The module’s compact dimensions allow for easy integration into existing systems without requiring significant space.

• High Data Throughput: Facilitates continuous collection of steady-state and transient dynamic data, enhancing monitoring capabilities.

• Ingress Protection: Rated IP67, offering protection against dust and water ingress.

Frequently Asked Questions (FAQs)

1. What is the primary function of the 3500/22-01-01 TDI Module?

It serves as an interface between the 3500 monitoring system and compatible software, facilitating data collection and transmission.

2. Can the module operate independently?

No, it functions as part of the 3500 Series Machinery Protection System and requires integration with other system components.

3. Is the module hot-swappable?

Yes, it allows for module replacement without interrupting system operation when a redundant power supply is present.

4. What are the dimensions of the module?

The module measures 241.3 mm in height, 24.4 mm in width, and 241.8 mm in depth.

5. What is the weight of the module?

It weighs 0.91 kg.

6. What is the operating temperature range of the module?

The module operates in temperatures ranging from -40°C to +70°C.

7. What is the ingress protection rating of the module?

It has an IP67 rating, offering protection against dust and water ingress.

8. Can the module be used in various industrial applications?

Yes, it is suitable for use in power generation, oil and gas, chemical processing, pulp and paper, automotive manufacturing, and water treatment industries.

9. Where is the module manufactured?

The module is manufactured in the United States.

10. Does the module support Ethernet connectivity?

Yes, it offers 10Base-T/100Base-TX Ethernet connectivity for efficient data transmission.
