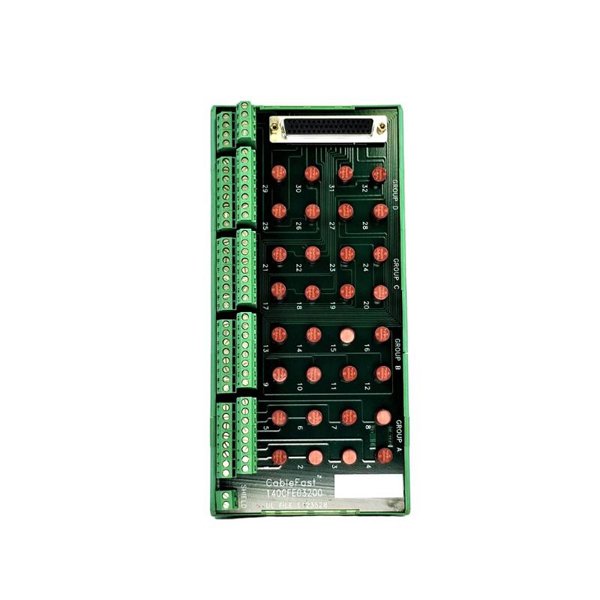

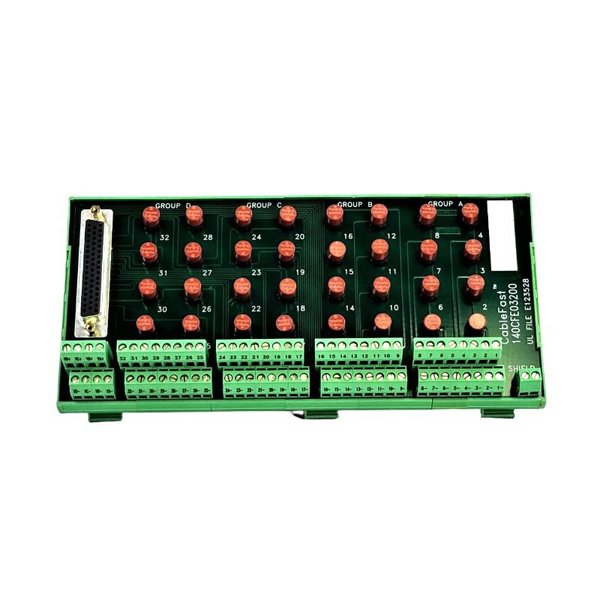

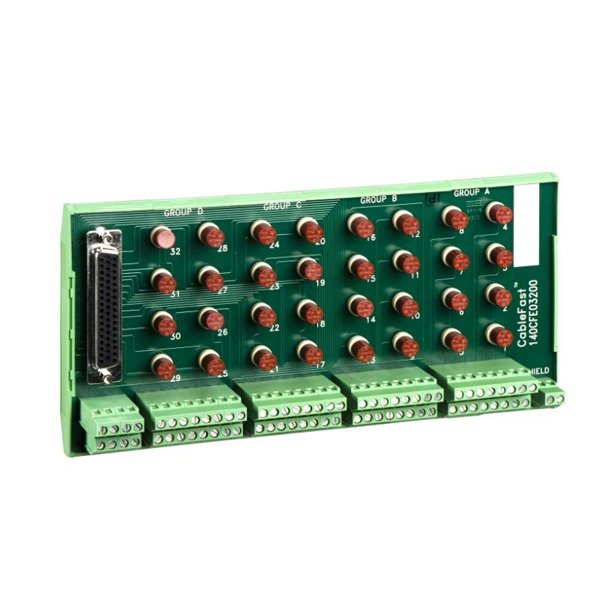

Schneider 140CFE03200 CableFast Terminal Block
Manufacturer:Schneider
Product Number:140CFE03200
Product Type:CableFast Terminal Block
Origin:France
Dimensions:105 x 180 x 265 mm
Weight:0.689 kg
Views:49
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 140CFE03200 CableFast Terminal Block is an essential connectivity accessory designed for use with Schneider Electric’s Modicon Quantum automation platform. It serves as an interface for connecting field wiring to automation equipment in a highly efficient, reliable, and maintenance-friendly manner.
Built to optimize installation times, ensure proper connections, and maintain long-term operational reliability, this terminal block integrates seamlessly with I/O modules of the Modicon Quantum range. It simplifies the field wiring process by providing a pre-configured, modular termination solution. The CableFast system is engineered to reduce errors during installation and maintenance while ensuring compliance with industrial wiring standards.
It is widely used in high-performance control systems across various industries—including oil & gas, power generation, water & wastewater treatment, and manufacturing—where reliability, maintainability, and efficiency are key requirements.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 140CFE03200 |
| Product Type | CableFast Terminal Block |
| Compatibility | Schneider Electric Modicon Quantum I/O Modules |
| Number of Terminals | 32 channels (16 input + 16 output or configurable) |
| Connection Type | Spring clamp terminal or screw clamp (model-specific) |
| Rated Voltage | 300 V AC/DC |
| Rated Current | Up to 5 A per channel |
| Wire Size Supported | 0.14 mm² to 2.5 mm² (26 AWG to 14 AWG) |
| Mounting | DIN Rail Mountable |
| Cable Type | Pre-terminated CableFast cables with standard interface |
| Connection Interface | Standard Schneider CableFast connector |
| Operating Temperature Range | -25 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Humidity Range | 5% to 95%, non-condensing |
| Ingress Protection (IP) Rating | IP20 |
| Dimensions (H x W x D) | 105 x 180 x 265 mm |
| Weight | 0.689 kg |
| Certifications | CE, UL, cUL, RoHS Compliant |
Applications
The Schneider 140CFE03200 CableFast Terminal Block is widely employed in various industries to simplify field wiring and streamline system installation. Key application areas include:
-
Process Control Systems
Used in oil & gas, refining, petrochemical, and chemical plants for efficient connection of field instruments.
-
Power Generation
Streamlines wiring in turbine control systems, switchyards, and auxiliary power equipment.
-
Water & Wastewater Treatment
Facilitates installation of process sensors, actuators, and control systems.
-
Automotive Manufacturing
Enables rapid installation and modularity for automation of assembly lines.
-
Pharmaceutical & Food Processing
Supports fast-changeover and clean-in-place (CIP) systems requiring modular connectivity.
-
Supports HVAC and energy management systems for commercial and industrial buildings.
Product Advantages
-
Time-Saving Installation
Reduces wiring time and commissioning effort through pre-configured connections.
-
Minimizes Errors
Factory-tested wiring paths minimize risk of human error during installation.
-
Simplified Maintenance
Facilitates fast module swaps or rewiring without extensive downtime.
-
High Reliability
Industrial-grade connectors ensure reliable long-term electrical connections.
-
Compact Design
Saves panel space thanks to a modular, space-efficient profile.
-
Flexible Configuration
Supports various wiring configurations, adaptable to project needs.
-
Supports Modern and Legacy Systems
Fully compatible with Modicon Quantum controllers, including newer firmware updates.
-
Rugged and Durable
Designed for use in harsh environments with high mechanical durability.
-
Compliance with International Standards
CE, UL, and RoHS certifications assure quality and regulatory compliance.
-
Field Proven
Widely used in industrial applications globally, ensuring compatibility with a broad range of devices.
FAQ
-
What control system is the 140CFE03200 terminal block compatible with?
It is specifically designed for use with Schneider Electric’s Modicon Quantum I/O modules.
-
How many field connections can be made with this terminal block?
It supports up to 32 connections, configurable for mixed input/output use.
-
What type of cable is used with this terminal block?
Pre-terminated CableFast cables provide the connection interface, ensuring quick and accurate connections.
-
What are the main benefits of using the CableFast system?
It reduces installation time, ensures connection accuracy, and simplifies maintenance and system upgrades.
-
Does the 140CFE03200 support hot-swappable connections?
Yes, provided that the connected I/O modules support hot swapping, this block facilitates quick connection changes.
-
What environments can the terminal block operate in?
It operates reliably in temperatures from -25 °C to +70 °C, making it suitable for industrial environments.
-
What is the maximum supported wire size?
It supports wires from 0.14 mm² to 2.5 mm² (26 AWG to 14 AWG).
-
Is this terminal block suitable for safety-critical applications?
Yes, when installed as part of a properly designed control system that meets the necessary safety standards.
-
Can the block be mounted horizontally and vertically?
Yes, the DIN rail mounting system allows flexible installation orientation.
-
Are there specific maintenance requirements for this product?
Periodic visual inspection and occasional cleaning of terminals to prevent dust buildup are recommended for optimal performance.
