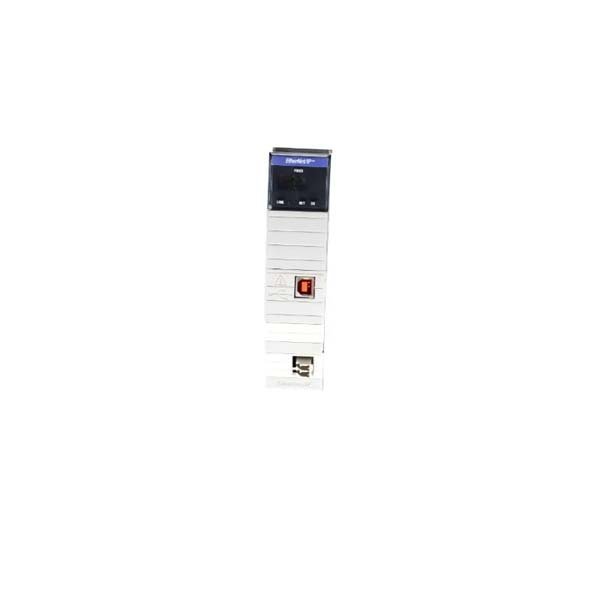

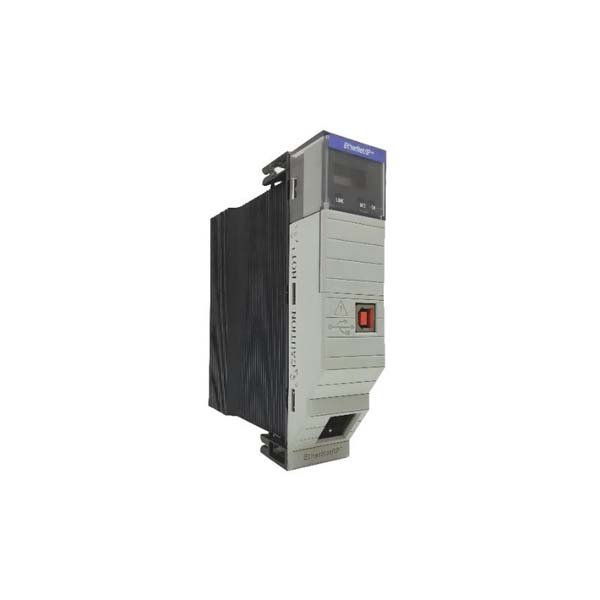

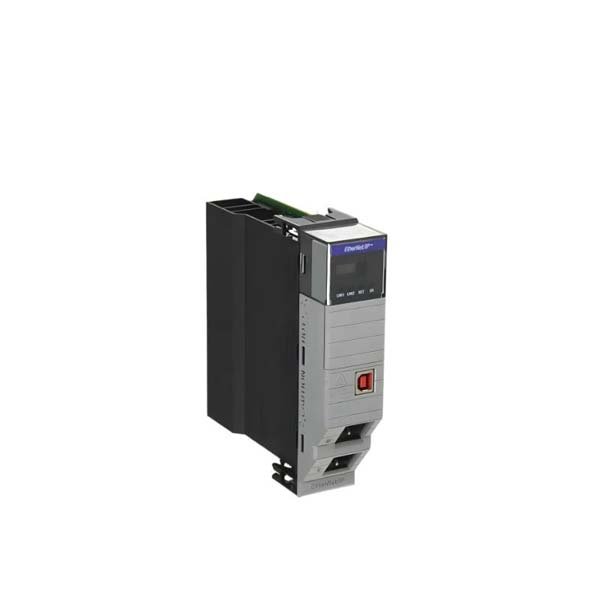

Allen-Bradley 1756-EN2F EtherNet/IP Communication Module

The Allen-Bradley 1756-EN2F is a high-performance EtherNet/IP communication module designed for ControlLogix systems. It enables fast and reliable Ethernet connectivity between ControlLogix controllers, HMIs, drives, and other industrial devices. The module supports standard EtherNet/IP protocols, allowing seamless integration into large-scale automation networks, real-time data exchange, and advanced diagnostics. It is ideal for applications requiring high throughput, deterministic communication, and networked control.

Technical Specifications

Applications

The 1756-EN2F module is widely used in industrial networks and ControlLogix applications, including:

• Factory Automation – Connecting controllers, HMIs, drives, and sensors for coordinated control.

• Process Control – Real-time communication in chemical, food, and pharmaceutical plants.

• SCADA Systems – Ethernet connectivity for remote monitoring and data acquisition.

• Motion Control – Networked coordination of servo drives and positioning systems.

• Distributed Control Systems – Linking multiple ControlLogix chassis and I/O networks.

• Data Logging and Reporting – Facilitates high-speed transfer of I/O data to enterprise systems.

Advantages

• High-Speed Communication: 10/100 Mbps dual ports enable fast and reliable data transfer.

• Dual-Port Flexibility: Supports ring, daisy-chain, or redundant network topologies.

• Wide Protocol Support: EtherNet/IP, TCP/IP, and UDP for industrial and enterprise integration.

• Deterministic I/O Updates: Fast update rates for real-time control loops.

• Comprehensive Diagnostics: LED indicators and software diagnostics simplify troubleshooting.

• Seamless Integration: Compatible with all ControlLogix processors and chassis.

• Scalable Networking: Supports multiple simultaneous connections, ideal for large installations.

• Industrial Reliability: Designed for harsh environments with shock, vibration, and temperature tolerance.

FAQs

1. Q: Can the 1756-EN2F be used with older ControlLogix processors?

   A: Yes, it supports all standard ControlLogix processors that have compatible firmware.

2. Q: How many Ethernet connections can it handle simultaneously?

   A: Up to 64 connections for real-time data exchange.

3. Q: Does it support redundant network configurations?

   A: Yes, dual ports allow ring or daisy-chain topologies for improved network reliability.

4. Q: Can I use it to connect to an existing enterprise LAN?

   A: Yes, it supports TCP/IP, UDP, and EtherNet/IP protocols for integration with enterprise networks.

5. Q: What is the typical I/O data update rate?

   A: Approximately 1 ms per update cycle under normal load conditions.

6. Q: Are both ports independent or mirrored?

   A: Both ports can operate independently or in a network ring configuration.

7. Q: How are module diagnostics accessed?

   A: Via LED indicators on the module and through RSLogix/Studio 5000 software.

8. Q: Can multiple EN2F modules be installed in the same chassis?

   A: Yes, as long as each module occupies an available slot and the network design accommodates it.

9. Q: Does it support DHCP for automatic IP addressing?

   A: Yes, the module can obtain IP addresses via DHCP.

10. Q: Is it suitable for high-vibration industrial environments?

    A: Yes, the module meets industrial shock and vibration standards (IEC 60068-2-27).
