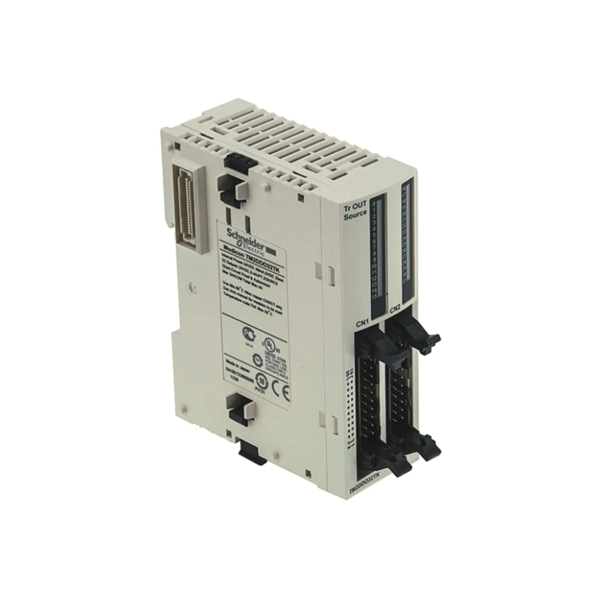

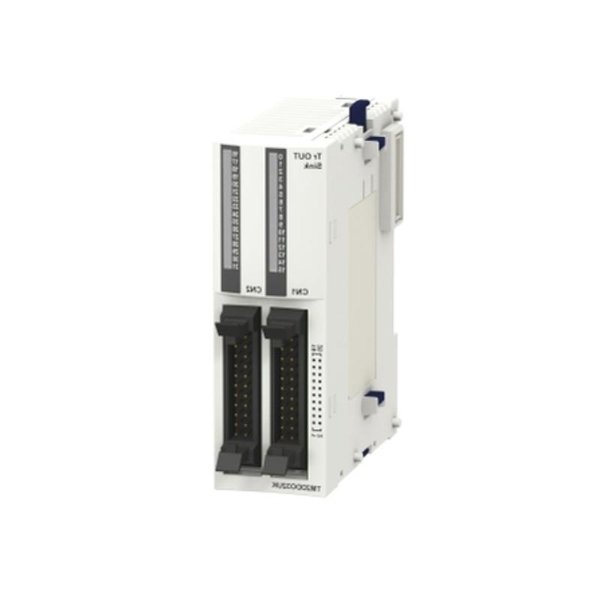

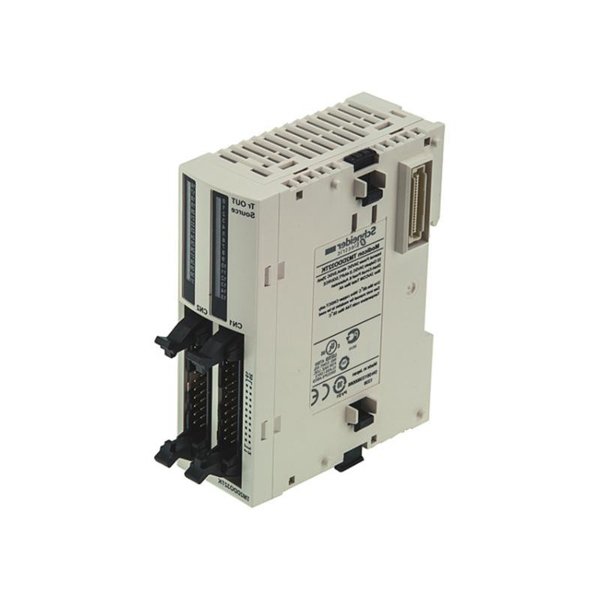

Schneider TM2DDO32UK Discrete output Modules

Engineered with industrial demands in mind, the TM2DDO32UK delivers consistent and robust output switching performance, making it ideal for a wide variety of automation and machine control tasks.

Product Parameters

Product Applications

The TM2DDO32UK is widely used in:

• Industrial automation systems requiring a large number of discrete outputs.

• Machine control and packaging machinery.

• Conveyor systems and sorting lines.

• Process control applications.

• Lighting and energy distribution systems.

• Building automation projects.

• Robotics and handling systems.

• OEM machine manufacturing where space-saving output expansion is required.

Its compatibility with Modicon PLCs ensures seamless system integration for diverse industries.

Product Advantages

• Compact Design: Slim and lightweight, saving valuable cabinet space.

• High Channel Density: 32 outputs per module minimize hardware footprint.

• Flexible Compatibility: Works seamlessly with several Modicon PLC ranges.

• Quick Wiring: Removable terminal blocks make wiring and maintenance faster.

• Fast Response: <1 ms switching speed ensures high-performance control.

• Industrial Durability: Certified to meet rigorous industrial standards.

• Enhanced Safety: Built-in short-circuit and overload protection.

• Cost-Effective: Extends system capability without requiring additional CPUs.

FAQs

Q1: What PLC series is the TM2DDO32UK compatible with?

A1: It is compatible with Schneider Electric’s Modicon M221, M241, and M251 series.

Q2: Can I combine it with analog modules?

A2: Yes. TM2 series modules can be freely combined to suit your application, including analog and digital modules.

Q3: Does it support hot-swapping?

A3: No, it must be powered down before adding or removing the module.

Q4: Is the module suitable for fast pulse outputs?

A4: It’s suitable for standard digital outputs; for high-speed pulse trains, specialized modules should be used.

Q5: What is the response time?

A5: Typically less than 1 ms, which is excellent for most industrial applications.

Q6: How do I wire the module?

A6: Wiring is done via removable screw terminals, making installation straightforward.

Q7: Does it require external power?

A7: Yes, it needs a 24 V DC external power supply for the outputs.

Q8: Is programming done directly on the module?

A8: No. Programming is done on the main PLC; the TM2DDO32UK acts as an expansion.

Q9: What protection features does it include?

A9: It has overload and short-circuit protection to protect the system and wiring.

Q10: What are the mounting options?

A10: Primarily DIN rail mounting, which ensures easy and standardized installation.
