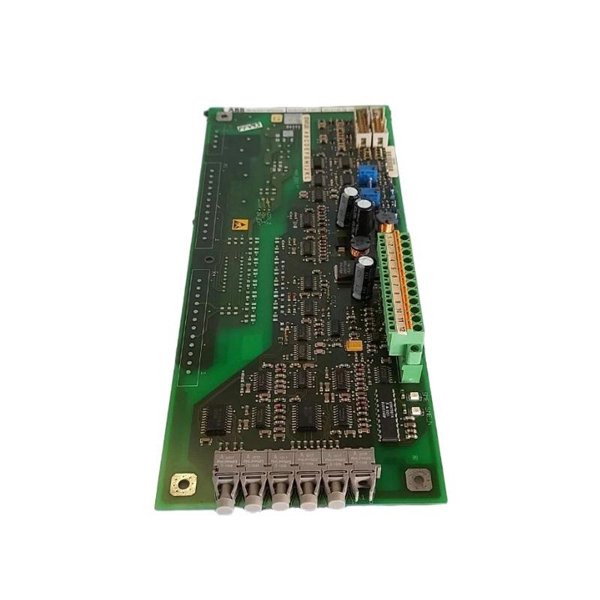

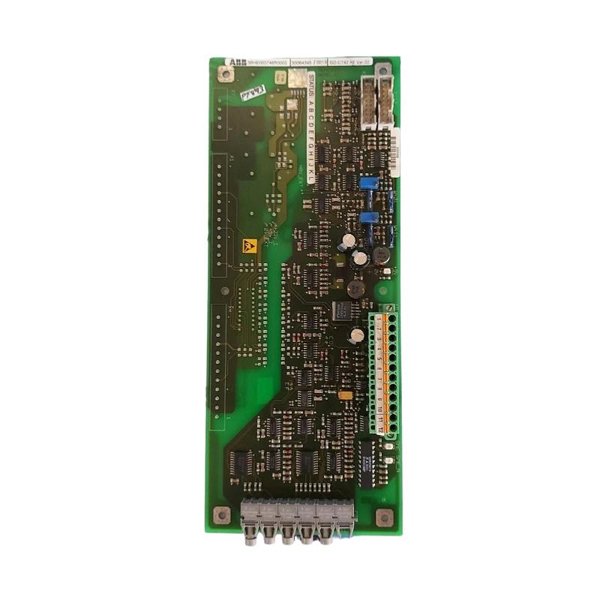

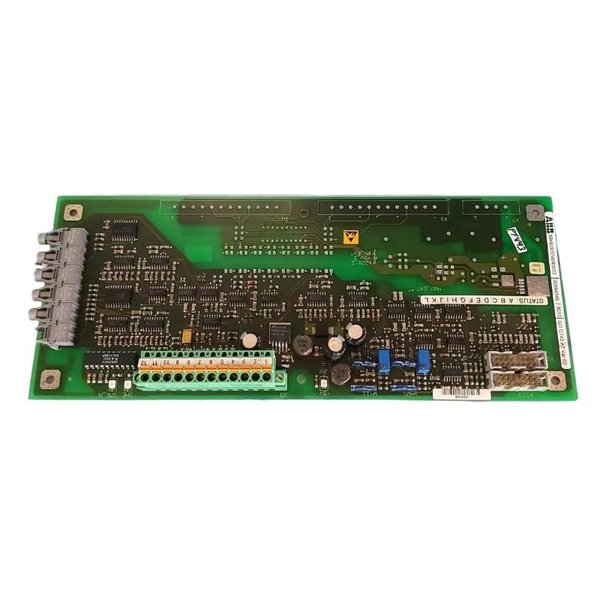

ABB GD C742 AE 3BHE003748R0002 DC Governor Communication Board

The ABB GD C742 AE 3BHE003748R0002 is an industrial-grade DC Governor Communication Board designed to manage data exchange between DC drive systems and external control environments. Specifically developed for use in ABB’s DCS400, DCS500, and DCS800 series drives, this communication board facilitates stable, high-speed transfer of digital signals and enhances the responsiveness of DC motor control applications.

Functioning as a communication bridge, the GD C742 AE supports command execution, speed feedback, diagnostics, and coordination of peripheral control modules. Its compact and robust design allows for deployment in demanding industrial settings such as steel processing plants, paper manufacturing lines, power generation units, and marine equipment automation.

ABB’s high-quality manufacturing standards ensure the board performs reliably under continuous operation, extreme environmental stress, and electrical noise. The component’s conformal coating and precise engineering also help it achieve long service life with minimal maintenance.

Product Specifications

Product Applications

• Steel and Rolling Mills

  Facilitates precise coordination of DC motor drives for rolling lines and cutting mechanisms.

• Paper and Pulp Production

  Maintains synchronization between multiple DC-driven rollers, dryers, and slitters.

• Power Generation Facilities

  Integrated in turbine control panels for exciter regulation and system balancing.

• Marine and Offshore Platforms

  Supports propulsion and winch control where DC drives are preferred for torque stability.

• Mining and Material Handling

  Enables reliable operation of hoists, conveyors, and crushers using DC drive systems.

• Industrial Cranes

  Enhances response time and position control in crane automation systems.

Product Advantages

• Reliable Communication Backbone

  Ensures seamless and uninterrupted data transfer between drive controllers and supervisory systems.

• Optimized for ABB DC Drive Series

  Full compatibility with DCS400, DCS500, and DCS800 systems provides integration flexibility.

• Built for Harsh Environments

  Features conformal coating, EMI shielding, and temperature resilience for harsh industrial conditions.

• Compact and Lightweight

  Small footprint and lightweight construction simplify rack installation and system expansion.

• Low Energy Consumption

  Operates with only 5V DC supply, making it highly energy-efficient.

• Easy Maintenance and Diagnostics

  Integrated status LEDs and test points allow for rapid troubleshooting.

• Passive Cooling Design

  Avoids the need for fans or active thermal management, reducing potential points of failure.

• Industrial-Grade Longevity

  Designed for 24/7 operation with MTBF (Mean Time Between Failures) far exceeding 100,000 hours.

• Minimal Signal Loss

  Incorporates galvanic isolation to ensure signal integrity and fault protection.

• Global Certification

  Complies with international standards for electrical safety and environmental performance.
