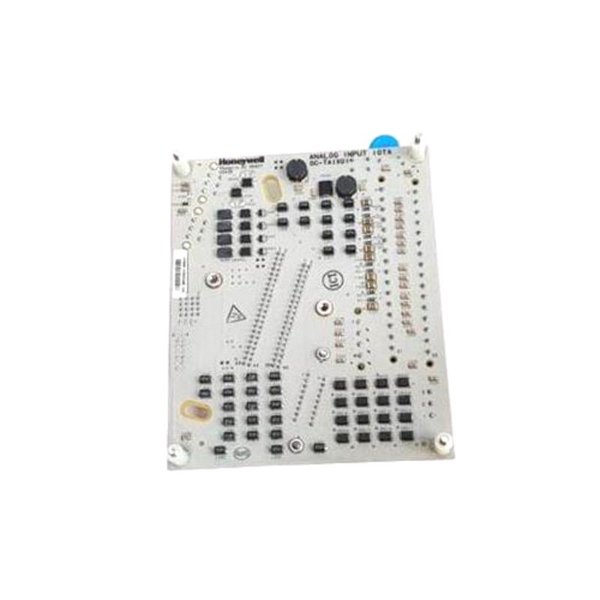

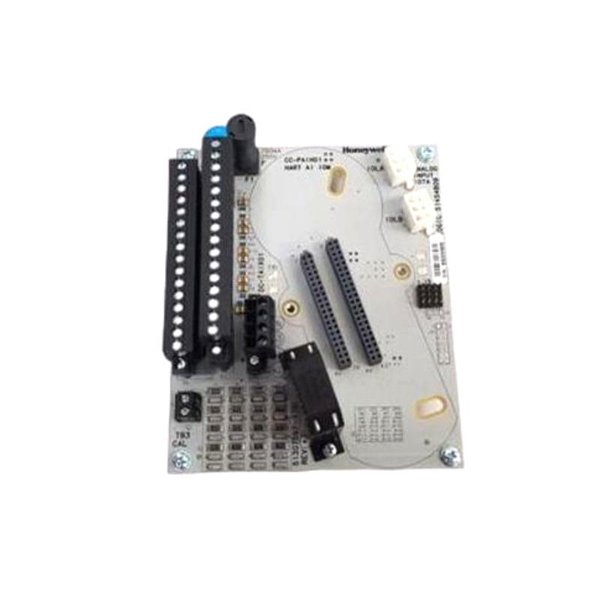

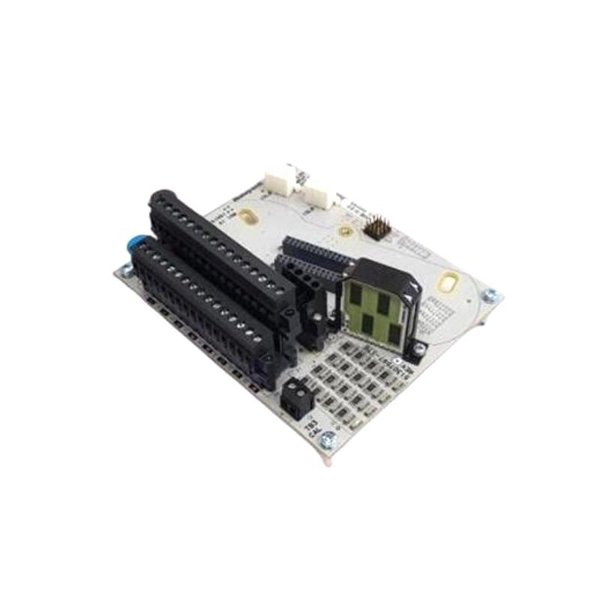

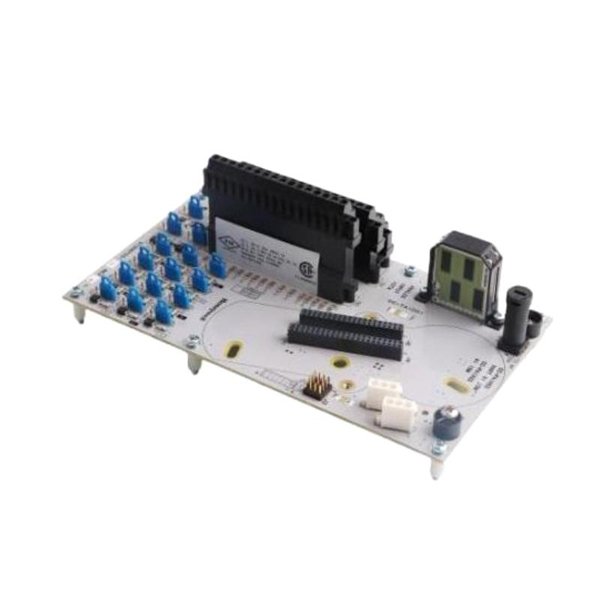

Honeywell DC-TAID01 Analog Input Module

The Honeywell DC-TAID01 Analog Input Module is a high-performance device designed for accurate analog signal input processing in process control and industrial automation systems. It is part of Honeywell’s Experion® Process Knowledge System (PKS), offering integration with other modules in Honeywell’s control systems. The module is engineered to deliver precise analog signal conversion, enabling reliable real-time monitoring of various process variables such as temperature, pressure, flow, and level.

The DC-TAID01 provides 16 channels for analog signal input and supports a wide range of field devices. It is ideal for use in industries like chemical processing, oil and gas, power generation, and water treatment, where continuous data acquisition and processing are critical to maintaining operational efficiency and safety.

Technical Specifications

Applications

The Honeywell DC-TAID01 Analog Input Module is used across a variety of industrial applications, providing reliable and real-time analog signal processing. Key applications include:

• Process Control: Widely used in systems that monitor and control chemical processes, ensuring accurate measurement of key process variables like pressure, flow, and temperature.

• Oil and Gas Industry: Used for monitoring and controlling the flow of fluids and gases in pipelines, pressure regulation, and in refineries.

• Power Generation: Helps in real-time monitoring of power plant equipment such as turbines, generators, and transformers by processing signals from temperature sensors, pressure transmitters, and flow meters.

• Water Treatment: Used to measure water quality parameters (e.g., pH, turbidity) and control water distribution systems.

• Building Management Systems: Used for HVAC control systems, including temperature and humidity regulation.

• Industrial Automation: Enables precise control of industrial machinery by continuously monitoring input from a variety of sensors.

Advantages

• High Accuracy: The DC-TAID01 module offers exceptional accuracy of ±0.1% of full-scale range, ensuring that process data is precise and reliable.

• 16-Channel Input: With 16 input channels, the module can handle multiple signals simultaneously, ideal for complex systems that require numerous sensors.

• Flexible Signal Input: Supports both voltage and current input types, making it highly versatile for a variety of industrial applications.

• Fast Response Time: With a response time of less than 10 ms per channel, the module provides real-time monitoring, ensuring timely responses in critical applications.

• Wide Operating Temperature: The module operates in temperatures ranging from -20°C to +60°C, ensuring durability in challenging environments.

• Compact and Easy to Install: The module’s compact form factor and DIN rail mounting make it easy to install and integrate into existing control systems.

• High Reliability: Honeywell’s proven expertise in process control ensures that the DC-TAID01 module is highly reliable for continuous operations in industrial environments.

• Energy Efficient: The module operates on a low power supply of 24 V DC, making it energy efficient for continuous use.

• Scalable Integration: Seamlessly integrates into Honeywell’s Experion® Process Knowledge System (PKS) and is compatible with other Honeywell control systems, offering scalability and ease of system expansion.

• Wide Certification Support: The module meets CE, UL, and RoHS certifications, ensuring it adheres to global safety and environmental standards.
