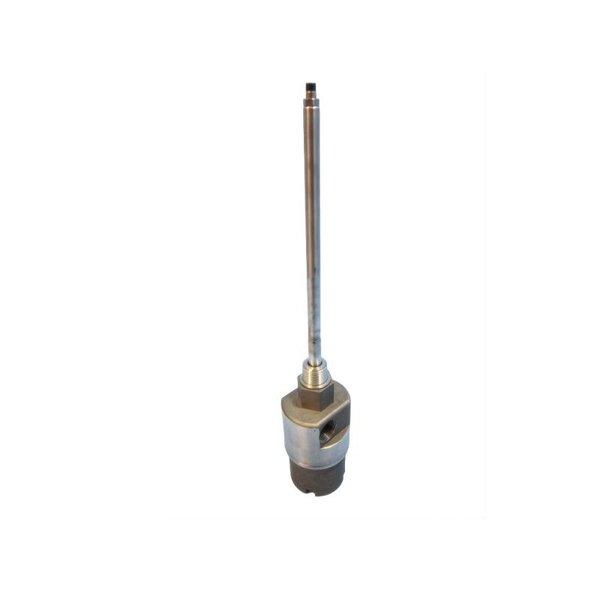

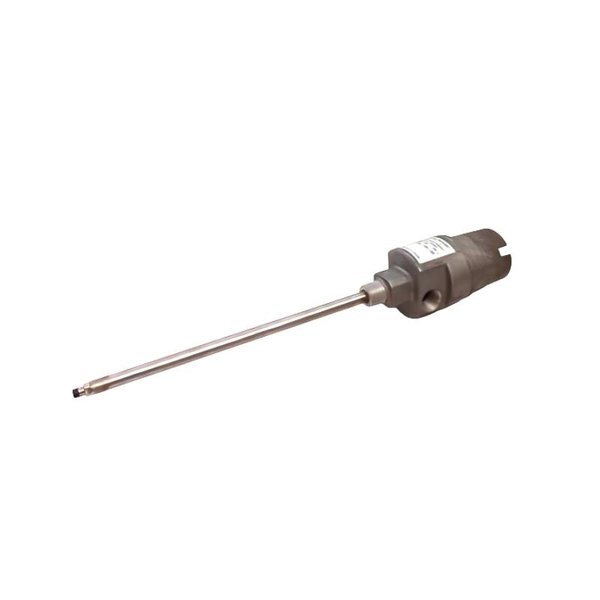

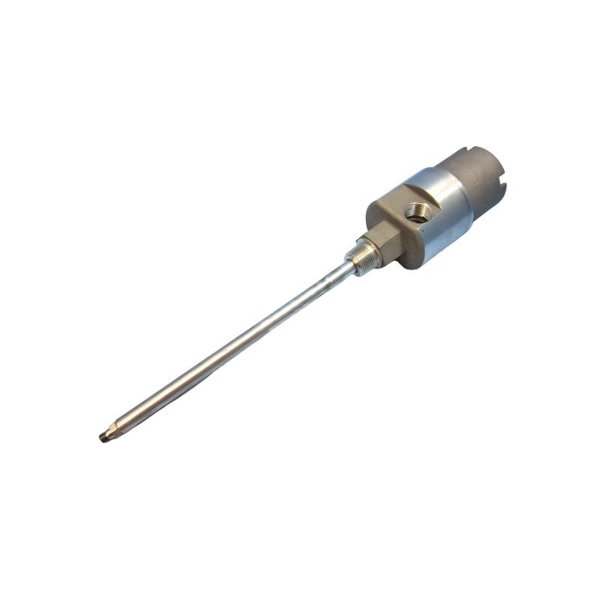

Bently Nevada 21000-16-10-15-102-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-10-15-102-03-02 Proximity Probe Housing Assembly is a robust and precisely engineered enclosure designed to house and protect proximity probes in some of the harshest industrial environments. As a part of the widely respected 21000 Series, this model is trusted for its ability to maintain probe integrity, deliver accurate vibration and displacement readings, and withstand challenging conditions such as high vibration, heat, dust, and corrosion.

Designed for compatibility with Bently Nevada’s renowned proximity probe systems like the 3300 XL, this housing ensures the mechanical alignment and environmental shielding necessary for mission-critical equipment such as gas turbines, steam turbines, compressors, and high-speed rotating machines.

The 21000-16-10-15-102-03-02 configuration provides specific enhancements in body length and thread compatibility, tailored for installations requiring deeper probe reach or more secure mounting.

Product Specifications

Product Applications

The 21000-16-10-15-102-03-02 housing is optimized for demanding industrial applications where equipment reliability and predictive maintenance are critical:

• Steam & Gas Turbines: Secure installation of axial displacement and radial vibration probes.

• Industrial Compressors: Ideal for compressors operating in high-vibration environments.

• Chemical Processing Units: Provides sealed protection against corrosive gases and particulates.

• Hydroelectric & Thermal Power Plants: Used for rotor position sensing and casing monitoring.

• Marine Propulsion Systems: Resilient in high-moisture and salt-laden environments.

• Steel and Mining Equipment: Protects probes in high-dust and high-impact operations.

Product Advantages

• Rugged Construction: Fabricated from corrosion-resistant 316L stainless steel for long service life.

• Environmental Protection: IP66 and NEMA 4X rated to safeguard electronics from water, dust, and chemicals.

• Precision Machining: Ensures accurate alignment of proximity probes for high-quality signal output.

• Field-Friendly Design: Internal terminal blocks simplify electrical connection during commissioning.

• Reliable Sealing: Dual O-rings and compression fitting prevent ingress even in pressurized enclosures.

• Flexibility in Installation: Can be installed vertically or horizontally, depending on machine design.

• Global Compatibility: Available with international safety certifications for use in hazardous areas.

• Maintenance-Ready: Easy access to wiring and components for on-site servicing and inspections.

Frequently Asked Questions (FAQ)

1. What probe types are supported by this housing?

   It supports Bently Nevada’s 3300 XL, 7200, and 9000 proximity probe series.

2. Can it be installed outdoors or in wet environments?

   Yes, the IP66/NEMA 4X rating makes it suitable for harsh outdoor and industrial conditions.

3. What does the “-102-03-02” suffix indicate?

   It denotes a specific housing length and internal configuration tailored for deeper installations and unique mounting requirements.

4. Is it compatible with ATEX zones?

   Certified versions are available for ATEX, CSA, and CE depending on the selected configuration.

5. How does this housing affect probe performance?

   Its precision alignment and vibration tolerance enhance the stability and accuracy of probe readings.

6. Is the housing heavy-duty enough for gas turbines?

   Yes, it’s designed for high-speed rotating equipment and heavy industrial use, including turbines.

7. Can I service the wiring in the field?

   Yes, the internal terminal block allows quick access for field wiring and probe replacement.

8. What is the maximum ambient temperature it can withstand?

   It can operate in environments up to 177°C (350°F).

9. Is this housing reusable or one-time use?

   It is reusable and built for long-term deployment, with replaceable seals and fittings.

10. Can this model be installed in a vertical position?

    Absolutely, it supports both vertical and horizontal installations.
