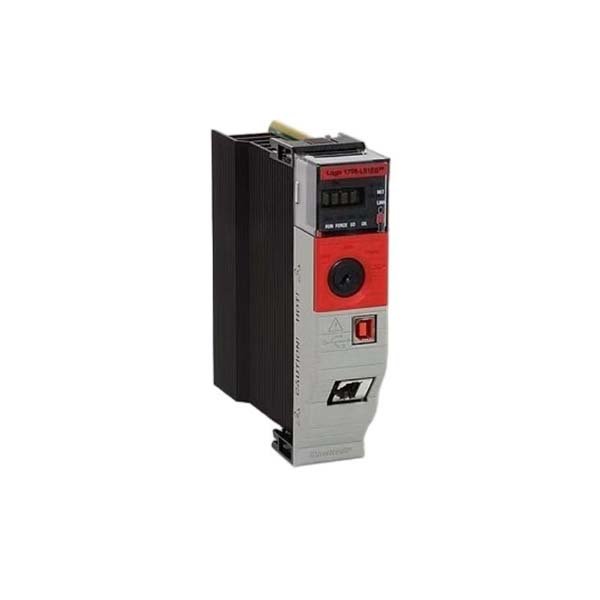

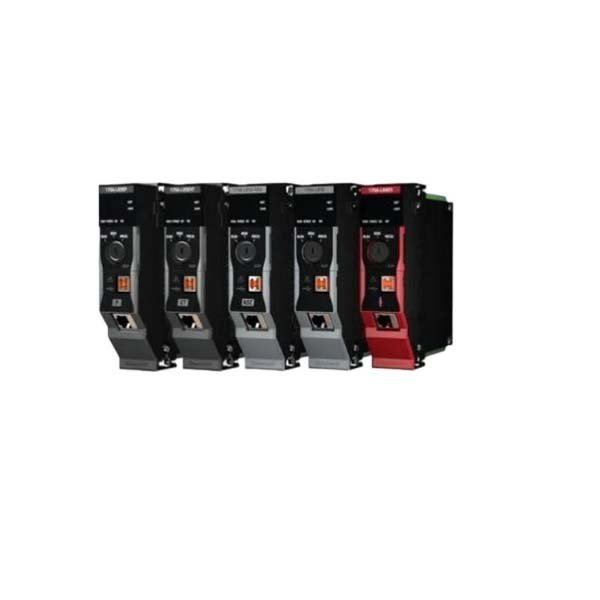

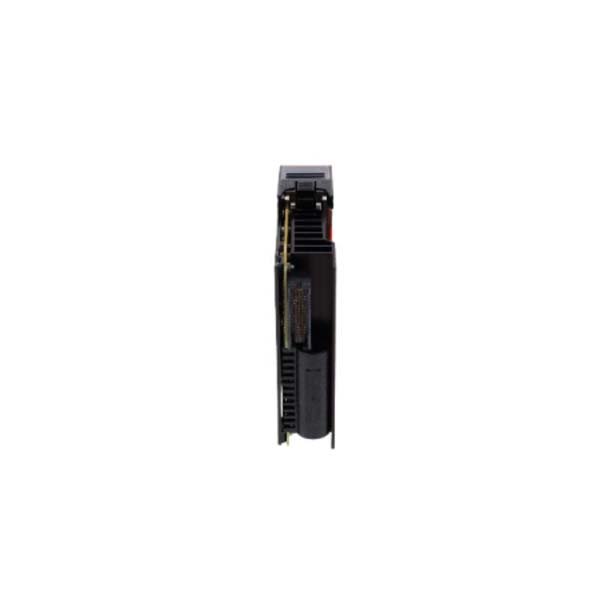

Allen-Bradley 1756-L84ES GuardLogix 5580 Safety Controller Module

The Allen-Bradley 1756-L84ES is part of the GuardLogix 5580 family, offering an integrated platform for both standard and safety control tasks. With advanced memory and communication capabilities, this controller is designed for applications that require a combination of standard control and functional safety logic. It supports 20 MB of user memory and 6 MB of safety memory, as well as a high-speed 1 Gb Ethernet port. This makes the 1756-L84ES ideal for managing large automation systems that require both safety and control in one solution.

Product Parameters

Application Scenarios

The 1756-L84ES controller is ideal for scenarios such as:

• Safety-integrated machine control: Machines requiring both standard automation logic and certified safety logic (e.g., safety I/O, emergency stop processing, guard monitoring) can use one controller instead of separate units.

• Large I/O systems: With high I/O capacity (up to 128,000 digital, 4,000 analog) and support for many EtherNet/IP nodes, it suits large production lines, processing plants or distributed architectures.

• Networked automation & motion: With built-in 1 Gb Ethernet and support for EtherNet/IP, the controller supports high-speed motion and coordinated devices on the same network.

• Future-proof systems: The generous memory and device support provide headroom for system expansion, additional I/O modules, networked devices or more complex logic.

• Industrial environments with high requirements: Designed for robust operation in industrial control panels with standard ambient and electrical characteristics, suited for demanding plants or OEM machines.

Advantages (Key Strengths)

• Combined Standard + Safety Logic: Enables one controller to handle both standard control and safety tasks (via GuardLogix safety memory segment), simplifying architecture and reducing system complexity.

• High Memory & Capacity: 20 MB user memory and 6 MB safety memory provide strong capacity for large logic sets, data handling, and complex safety logic.

• High-Speed Ethernet: The embedded 1 Gb Ethernet port allows fast communication, large data throughput, and supports high device count (up to 250 EtherNet/IP nodes).

• Large I/O and Device Support: With capability to manage up to 128,000 digital and 4,000 analog points, and a large number of networked devices, it suits large-scale automation.

• Integrated Motion Support: Supports integrated motion over EtherNet/IP, allowing motion axes to be managed from the same controller platform.

• Flexible Programming: Supports typical automation languages (Ladder, ST, FBD, SFC) for standard tasks; safety tasks support Ladder only.

• Robust Industrial Design: Rated for standard industrial ambient, supports RIUP (removal/insertion under power) in suitable chassis, with conformal-coated variants available.

• Ecosystem Compatibility: Part of the Rockwell Automation ControlLogix / GuardLogix ecosystem, ensuring broad module compatibility, software support, and long-term availability.

FAQs(10)

1. Q: Can the 1756-L84ES controller be used in a hot-standby redundancy setup?

   A: No, the 1756-L84ES does not support hot-standby redundancy. For redundancy, consider using other models like 1756-L85E.

2. Q: Does the USB port support live data transfer during operation?

   A: No, the USB port is intended for configuration and programming only, not for live data communication.

3. Q: What is the maximum number of devices supported in a network?

   A: The 1756-L84ES can support up to 250 EtherNet/IP nodes.

4. Q: Can I use this controller in both safety and non-safety applications?

   A: Yes, the GuardLogix platform allows it to handle both safety and standard control in a single controller.

5. Q: What programming languages are supported for safety tasks?

   A: For safety logic, only Ladder Logic (LD) is supported.

6. Q: Is this controller compatible with ControlLogix modules?

   A: Yes, it is fully compatible with the ControlLogix I/O modules and other devices within the ControlLogix system.

7. Q: What is the maximum supported I/O points?

   A: The controller supports up to 128,000 digital I/O points and 4,000 analog I/O points.

8. Q: Can I perform safety-related operations with external devices?

   A: Yes, the controller integrates seamlessly with safety-rated I/O modules and external devices for safety functions.

9. Q: How does the controller handle network communications?

   A: The controller uses EtherNet/IP for communication, offering fast, reliable data transfer across the network.

10. Q: Can I use the 1756-L84ES for motion control?

    A: Yes, it supports integrated motion control via EtherNet/IP, allowing synchronized motion tasks across multiple devices.
