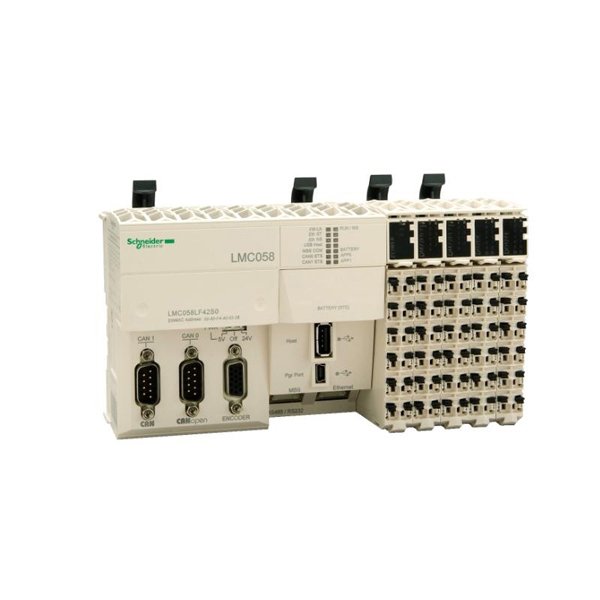

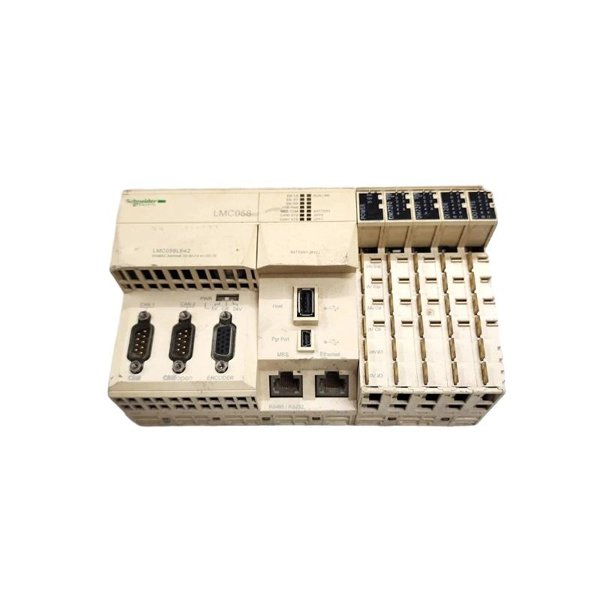

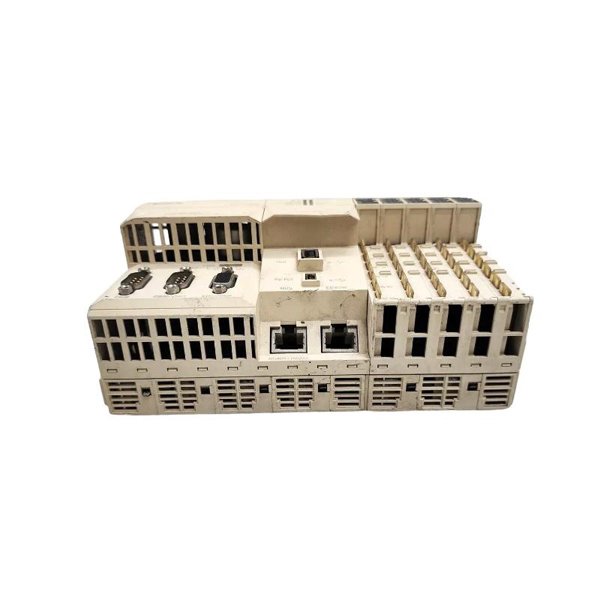

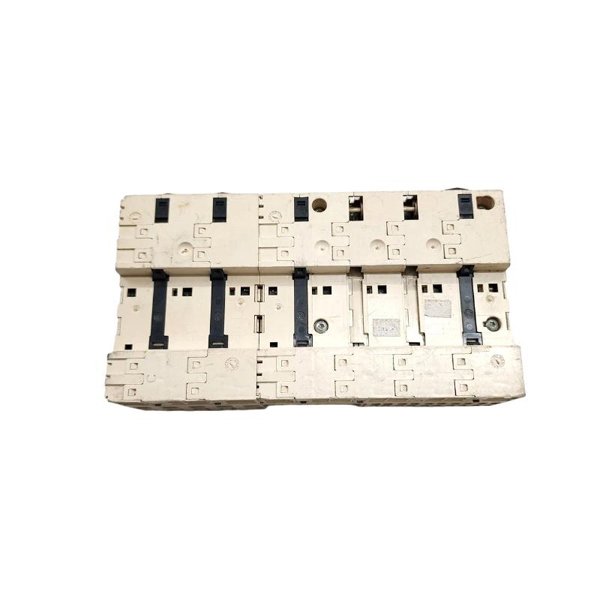

Schneider LMC058LF42 Motion Controller

The Schneider Electric LMC058LF42 is a high-performance Logic Motion Controller designed as part of the PacDrive LMC058 series, ideal for synchronizing multiple axes of motion in real-time within compact automation systems. Engineered for small to mid-range machine control, it integrates seamlessly into automation architectures where tight integration of motion and logic is required.

The controller features embedded Ethernet and serial communication ports, allowing for rapid data exchange and real-time machine feedback. With support for up to 4 axes via CANopen, the LMC058LF42 is perfect for applications requiring synchronized motion control, such as pick-and-place machines, conveyors, labeling equipment, and packaging lines.

It combines the flexibility of IEC 61131-3 compliant programming with the performance of integrated motion control, all in a compact, DIN-rail mountable design. Designed to be cost-efficient, the LMC058 series bridges the gap between complex motion systems and basic programmable logic controllers.

Product Specifications

Product Applications

• Packaging Machines

  Ideal for vertical and horizontal form fill seal machines, wrapping machines, and cartoning lines.

• Material Handling Systems

  Manages coordinated movements of conveyors, pick-and-place arms, and sorting systems.

• Food & Beverage Processing

  Supports precise timing and motion for filling, capping, and labeling operations.

• Textile Machinery

  Synchronizes movements across multiple drives in weaving, dyeing, or spinning applications.

• Automated Assembly Systems

  Controls linear slides, robotic arms, and part feeders with real-time feedback.

• Printing & Labeling

  Executes complex synchronized actions needed in web handling, label placement, and inspection.

Product Advantages

• Integrated Motion & Logic

  Combines control of both motion and logic within a single controller, reducing hardware complexity.

• Compact Footprint

  DIN-rail mountable, ideal for installations where cabinet space is limited.

• Multi-Protocol Communication

  Built-in support for Ethernet/IP, CANopen, Modbus, and OPC UA ensures broad system compatibility.

• Flexible Programming

  IEC 61131-3 programming via SoMachine or EcoStruxure allows for modular code development.

• Scalable Architecture

  Modular expansion through TM5 I/O modules supports growing automation requirements.

• Real-Time Performance

  Enables sub-millisecond synchronization across axes for precision control tasks.

• Robust Diagnostics

  Built-in monitoring tools simplify commissioning and reduce downtime in the field.

• Energy Efficient

  Low power consumption with high efficiency suitable for 24/7 operational environments.

Frequently Asked Questions (FAQ)

1. What is the maximum number of motion axes supported by the LMC058LF42?

   The controller supports up to 4 motion axes via CANopen.

2. Which software is used to program the LMC058LF42?

   The controller is programmed using SoMachine or EcoStruxure Machine Expert.

3. Can this controller be used in harsh industrial environments?

   Yes, it operates from 0°C to 55°C and meets IP20 and industrial certifications.

4. Does it support Ethernet/IP or Modbus TCP?

   Yes, both Ethernet/IP and Modbus TCP are supported natively.

5. Is it possible to expand the number of I/Os?

   Yes, expansion is supported via TM5 modular I/O system.

6. What’s the input voltage requirement?

   It operates on a 24 VDC ±20% power supply.

7. Can the controller be integrated with SCADA systems?

   Yes, it supports OPC UA for SCADA and HMI integration.

8. Does it support real-time synchronization?

   Yes, it offers real-time control and precise axis synchronization.

9. Is it suitable for standalone machines?

   Absolutely—it is optimized for small to mid-sized standalone machines.

10. Is this model RoHS compliant?

    Yes, the LMC058LF42 is RoHS compliant and CE certified.
