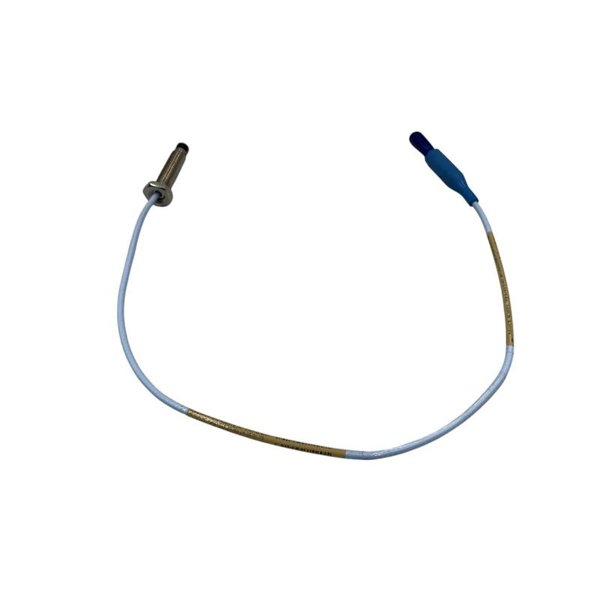

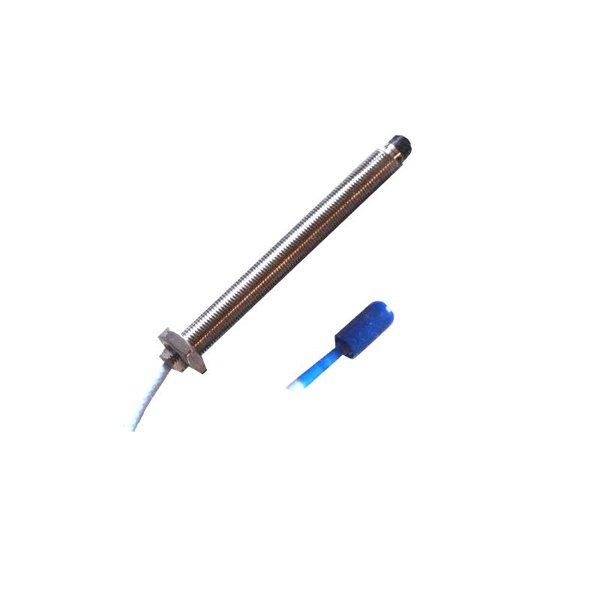

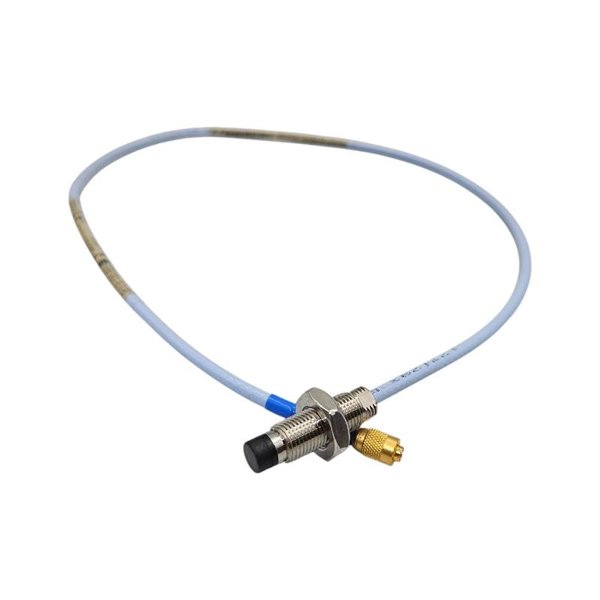

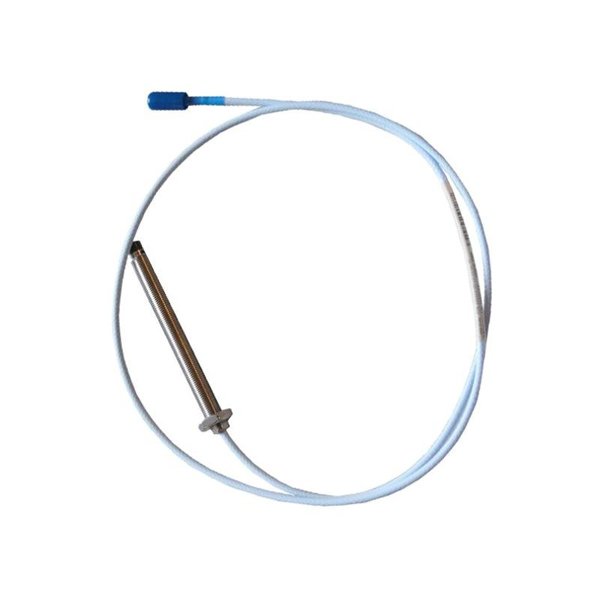

Bently Nevada 330103-06-11-50-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-06-11-50-02-00 is part of the 3300 XL 8 mm Proximity Probe series, designed for accurate non-contact vibration and shaft position measurements. Engineered for critical rotating machinery, this probe delivers long-term stability, reliable linearity, and full compliance with API 670 standards. Its robust construction ensures durability in harsh industrial environments, providing essential data for condition monitoring and protection systems.

Technical Specifications

Applications

The 330103-06-11-50-02-00 proximity probe is widely used in:

• Steam and gas turbines

• Compressors and centrifugal pumps

• Generators and electric motors

• Industrial fans and blowers

• Gearboxes and rotating shafts

• Critical machinery protection systems

Advantages

• API 670 Compliance: Meets strict industry standards for reliability and accuracy.

• Interchangeability: Fully compatible with 3300 XL 5 mm and 8 mm system components.

• Durability: Stainless steel housing and PPS probe tip provide resistance against wear and harsh environments.

• Enhanced EMI/RFI Immunity: Ensures reliable operation in noisy industrial environments.

• Compact & Rugged Design: Withstands demanding mechanical and environmental stresses.

• Precise Measurement: Provides accurate vibration and shaft position readings for critical diagnostics.

FAQ

Q1: What is the function of the 330103-06-11-50-02-00 probe?

A1: It measures shaft vibration and axial position using eddy-current sensing technology.

Q2: Is this probe compliant with API standards?

A2: Yes, it fully complies with API 670 4th Edition for mechanical and performance requirements.

Q3: Can this probe be used with other 3300 XL components?

A3: Yes, it is fully interchangeable with 3300 XL proximitor sensors and extension cables.

Q4: What is the probe’s operating temperature range?

A4: It operates from -35 °C to +177 °C, making it suitable for high-temperature environments.

Q5: What type of connector does it use?

A5: It features a miniature coaxial ClickLoc connector for secure and reliable connections.

Q6: How long is the cable length in this model?

A6: This version includes a 5.0-meter total cable length.

Q7: What materials are used in the probe construction?

A7: The case is made of stainless steel (AISI 303/304), and the tip is PPS (polyphenylene sulfide).

Q8: How heavy is this probe assembly?

A8: The total weight is 1.615 kg.

Q9: Where is this probe typically installed?

A9: It is installed near the rotating shaft or machine surface to monitor displacement and vibration.

Q10: What is the sealing protection of this probe?

A10: It is equipped with a Viton® O-ring for effective sealing under industrial conditions.
