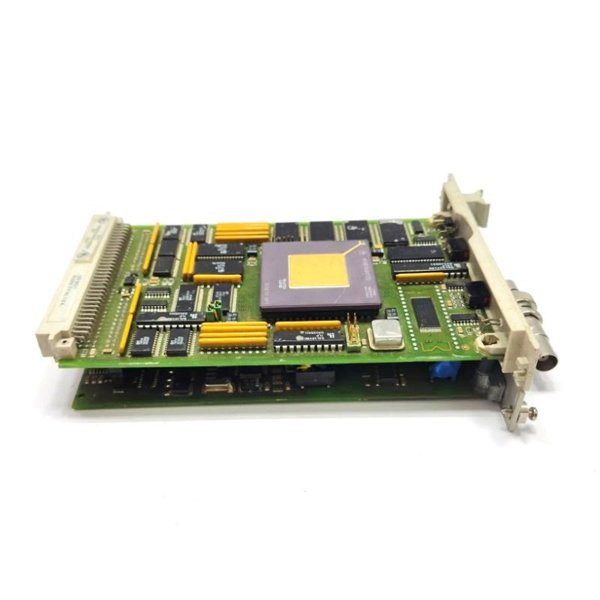

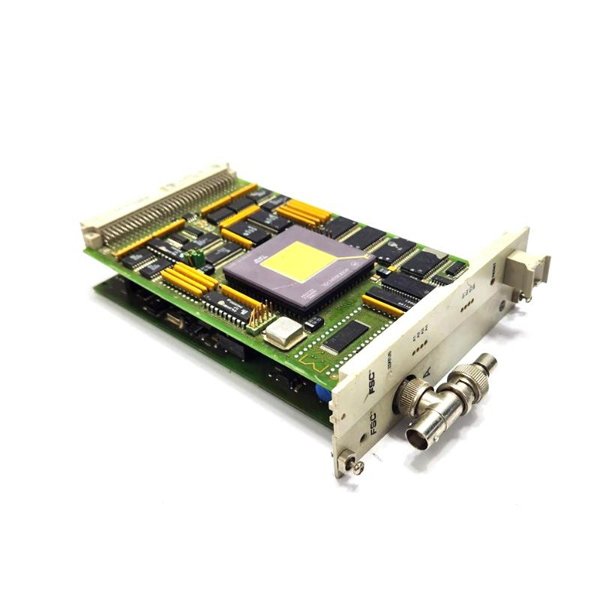

Honeywell 10018/E/1 FSC Ethernet Module

The Honeywell 10018/E/1 FSC Ethernet Module is a specialized communication interface designed to integrate Honeywell’s Fail Safe Controller (FSC) systems with the PlantScape supervisory control and data acquisition (SCADA) platform. This module ensures robust and reliable Ethernet connectivity, facilitating high-speed data transfer and remote monitoring of industrial processes.

Product Parameters

The following table outlines the key specifications of the Honeywell 10018/E/1 FSC Ethernet Module:

Applications

The Honeywell 10018/E/1 FSC Ethernet Module is utilized in various industrial applications, including:

• Process Automation: Facilitates real-time data exchange between FSC systems and PlantScape SCADA platforms, enhancing process monitoring and control.
• Safety Systems: Ensures reliable communication in safety-critical applications, supporting fail-safe operations in industries such as oil and gas, chemical processing, and power generation.
• Remote Monitoring: Enables remote access to system data, allowing operators to monitor and manage processes from centralized control rooms or remote locations.
• Data Acquisition: Collects and transmits data from various sensors and field devices to centralized databases for analysis and reporting.

Advantages

The Honeywell 10018/E/1 FSC Ethernet Module offers several advantages:

• High-Speed Communication: Supports Ethernet data transfer rates up to 100 Mbps, ensuring timely and efficient data exchange.
• Reliable Performance: Designed with optical isolation technology, providing high immunity against electrical interference and ensuring stable operation in challenging industrial environments.
• Scalability: Available in single (10018/E/1) and dual interface (10018/E/E) configurations, offering flexibility to accommodate varying network requirements.
• Durable Construction: Encased in a ruggedized IP67-rated enclosure, suitable for harsh industrial conditions, reducing maintenance requirements and downtime.
• Easy Integration: Compatible with Honeywell’s FSC PLC systems and PlantScape platform, facilitating seamless integration into existing control architectures.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Honeywell 10018/E/1 FSC Ethernet Module?

The primary function of the module is to facilitate Ethernet communication between Honeywell FSC controllers and other supervisory or control systems. It ensures high-speed data exchange, allowing operators to monitor and control processes effectively.

2. What c​ommunication protocols does the module support?

The module supports multiple protocols, including TCP/IP, UDP, and Modbus TCP, making it compatible with a wide range of industrial networks and control systems.

3. Is the module compatible with all Honeywell PLC systems?

The 10018/E/1 FSC Ethernet Module is specifically designed for use with Honeywell FSC (Fail Safe Controller) systems. It is recommended to verify compatibility with other Honeywell PLCs before integration.

4. What are the power requirements for this module?

The module operates on a 24V DC power supply and consumes less than 5 watts, making it an energy-efficient solution for industrial applications.

5. Can the module withstand harsh industrial environments?

Yes, the module is built for industrial use, with an operating temperature range of -20°C to +60°C and an IP67-rated enclosure, providing resistance to dust, moisture, and electrical interference.

6. What are the physical dimensions and weight of the module?

The module has a compact design with dimensions of 100 x 50 x 30 mm(Width x Height x Depth) and an weight of 0.25 kg, allowing for easy installation in control panels.

7. How many Ethernet interfaces does the module provide?

The 10018/E/1 model offers a single Ethernet interface, while the 10018/E/E variant provides dual Ethernet interfaces, enabling flexible network configurations.

8. Is the module suitable for safety-critical applications?

Yes, the module is designed for use in safety-critical environments where reliable communication is essential for process safety and control.

9. How is the module installed?

The module is designed for DIN rail mounting, making it easy to install and integrate into existing control systems.

10. What industries commonly use this module?

The Honeywell 10018/E/1 FSC Ethernet Module is widely used in industries such as oil and gas, power generation, chemical processing, manufacturing, and any other field that requires reliable industrial communication for safety and process control.
