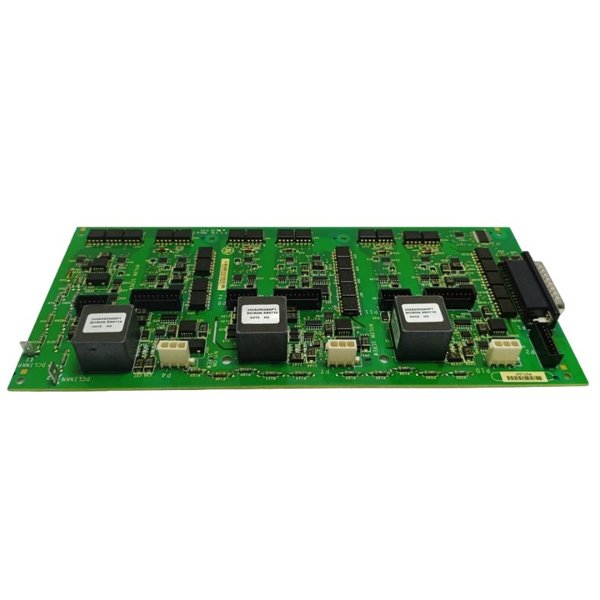

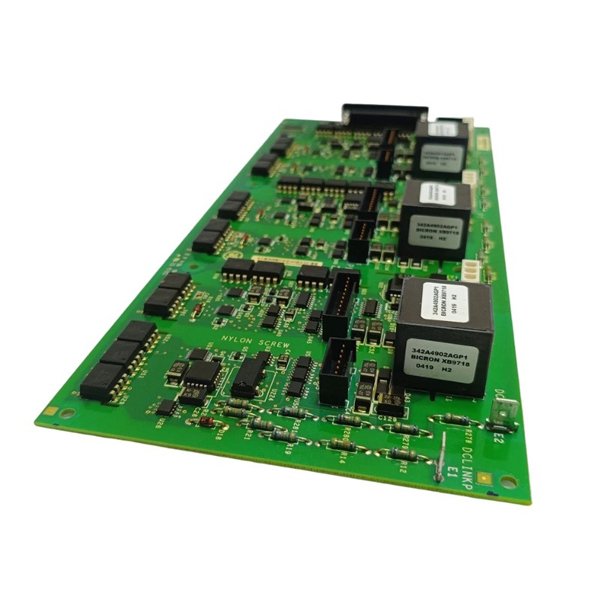

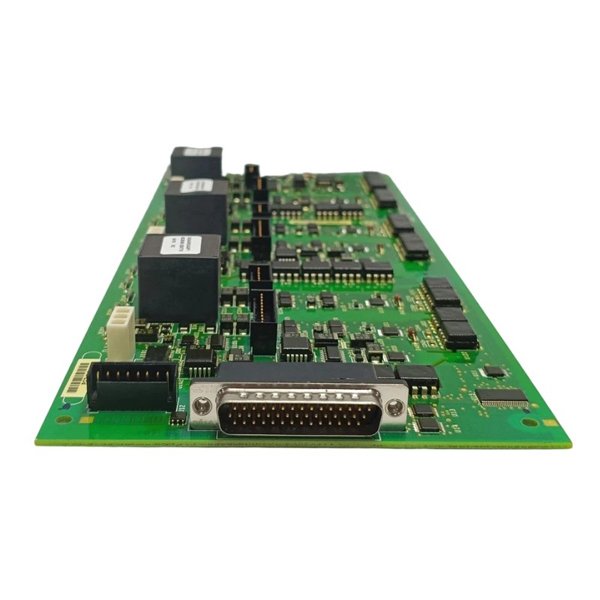

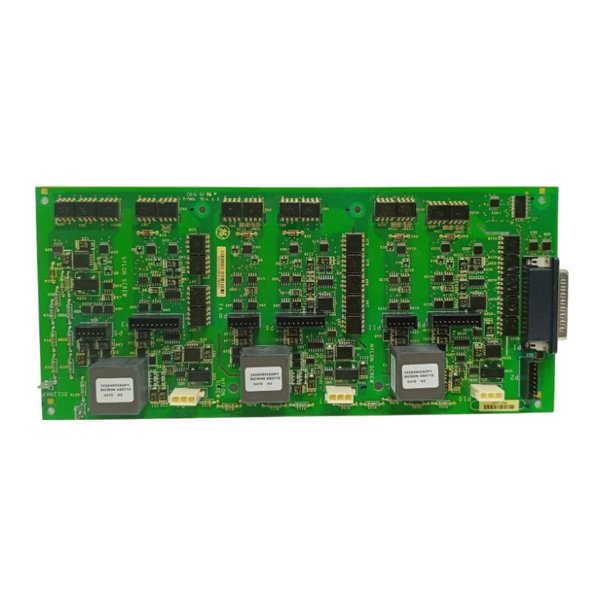

General Electric IS210AEBIH3BBC AE Bridge Interface

The GE IS210AEBIH3BBC AE Bridge Interface is a precision monitoring device designed for advanced machinery diagnostic applications. It serves as a reliable interface for acoustic emission (AE) sensors and bridges, providing accurate signal acquisition, conditioning, and transmission for industrial monitoring systems. The device ensures seamless integration with GE’s Bently Nevada monitoring systems and supports high-fidelity vibration and acoustic measurements. It is widely used in rotating machinery applications, including turbines, compressors, and generators, where early fault detection is critical for operational reliability.

Product Advantages

• High-precision signal processing for accurate fault detection.

• Robust design capable of withstanding industrial environmental conditions.

• Seamless integration with Bently Nevada 3500/2300 series monitoring systems.

• Supports multiple AE sensors simultaneously, improving monitoring coverage.

• Flexible interface options for analog and digital outputs.

• Low-noise circuitry ensures high signal-to-noise ratio and data integrity.

• Simplified installation and calibration processes reduce setup time.

Technical Specifications

Product Applications

• Rotating machinery monitoring for turbines, compressors, and pumps.

• Fault detection in generators and large industrial motors.

• Early warning system for mechanical degradation in critical equipment.

• Integration with plant condition monitoring and control systems.

• Acoustic emission testing in high-pressure and high-speed environments.

FAQ

1. Q: What types of AE sensors are compatible with the IS210AEBIH3BBC?

   A: It is compatible with standard Bently Nevada AE sensors including resonant and broadband types.

2. Q: Can this interface handle multiple channels simultaneously?

   A: Yes, it supports 2 to 4 channels depending on configuration.

3. Q: What is the input impedance of the device?

   A: The nominal input impedance is 1 MΩ.

4. Q: What is the frequency range supported by the AE Bridge Interface?

   A: The device supports 10 kHz to 1 MHz frequency response.

5. Q: How is the output signal transmitted to the monitoring system?

   A: It provides voltage, current, or digital outputs compatible with GE Bently monitoring systems.

6. Q: Does the device require calibration before use?

   A: Yes, calibration is recommended during installation to ensure accurate signal acquisition.

7. Q: Can it be used in high-temperature industrial environments?

   A: Yes, it operates reliably between -20°C and +70°C.

8. Q: Is it compatible with other non-GE monitoring systems?

   A: While designed for Bently Nevada systems, it can interface with third-party systems using standard analog/digital outputs.

9. Q: What type of enclosure does the IS210AEBIH3BBC have?

   A: It has a ruggedized metal enclosure suitable for industrial conditions.

10. Q: How does the device minimize noise in signal processing?

    A: It uses low-noise circuitry and high-quality shielding to ensure high signal-to-noise ratio.
