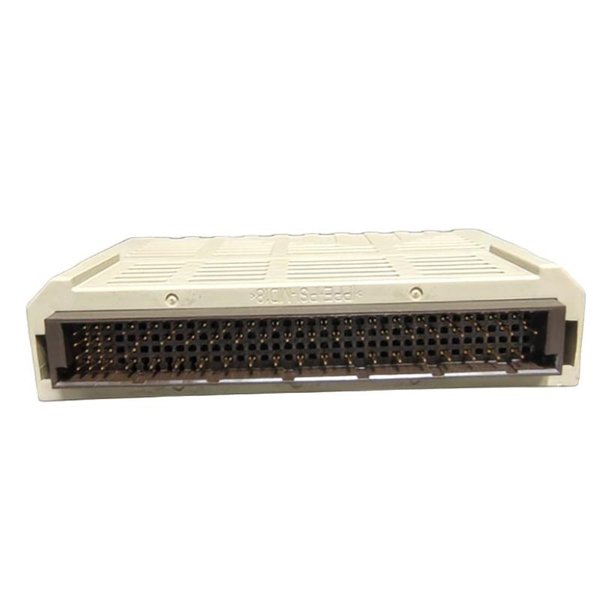

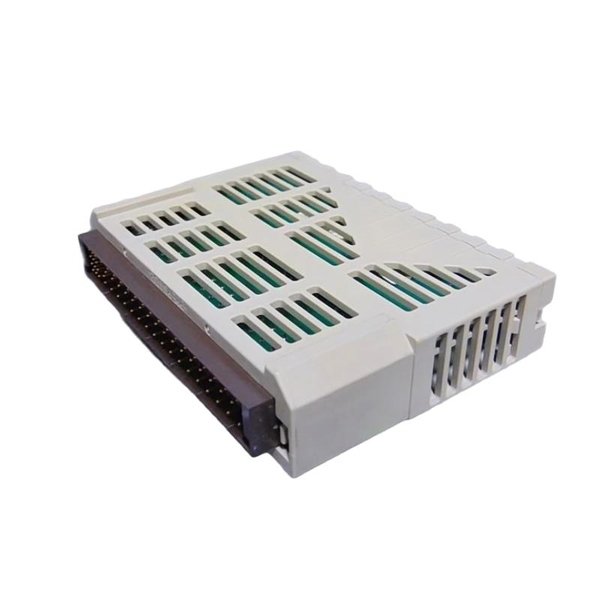

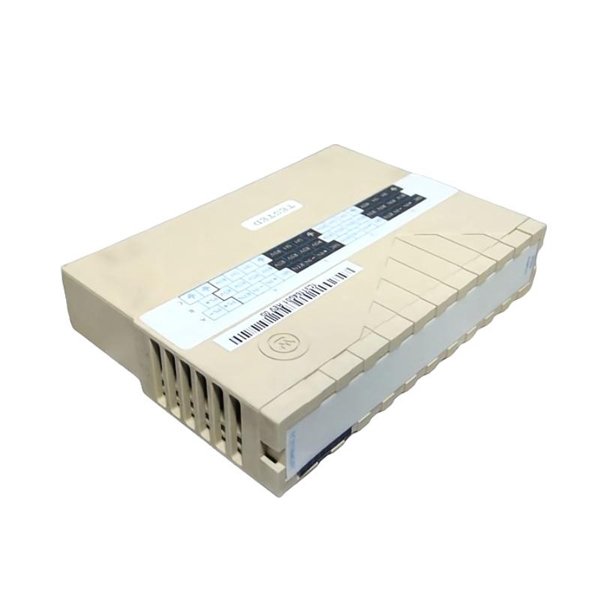

Ovation 1C31164G01 RTD Input Module

The Ovation 1C31164G01 RTD Input Module is engineered to provide precise and reliable temperature measurements by accepting signals from Resistance Temperature Detectors (RTDs). This module is an integral component in the Ovation control system, designed specifically to interface with RTDs for process monitoring and control applications.

With its advanced signal conditioning capabilities, the 1C31164G01 ensures accurate temperature data collection by compensating for lead wire resistance and electrical noise. It supports multiple RTD types and wiring configurations, making it flexible for diverse industrial environments such as power plants, chemical processing, and manufacturing facilities.

Built for durability and ease of integration, this module supports stable operation over a wide temperature range, ensuring consistent performance in harsh conditions. Its compact form factor and DIN rail mounting compatibility enable straightforward installation in existing control panels.

Product Specifications

Product Applications

The Ovation 1C31164G01 RTD Input Module finds its use across many industrial sectors where accurate temperature monitoring is critical:

• Power Generation: Monitoring boiler, turbine, and generator temperatures for safe and efficient operation.

• Chemical Processing: Precise temperature control during chemical reactions and storage.

• Oil and Gas: Measuring temperatures in pipelines, refineries, and processing plants.

• Water and Wastewater Treatment: Tracking temperature for treatment process optimization.

• Manufacturing: Ensuring thermal consistency in production lines, ovens, and curing processes.

• HVAC Systems: Monitoring temperature for building climate control and energy management.

• Food and Beverage Industry: Temperature control in processing and storage to ensure quality and safety.

Product Advantages

• Wide RTD Compatibility: Supports multiple RTD types and wiring configurations for versatile application.

• High Measurement Accuracy: Provides ±0.1°C typical accuracy to ensure precise temperature data.

• Lead Wire Compensation: Automatically compensates for lead wire resistance, reducing measurement errors.

• Noise Resistant Design: Built to resist electrical interference ensuring stable and reliable data.

• Compact and Robust: Small footprint with durable housing for harsh industrial environments.

• Easy Integration: Fits into standard Ovation control systems and DIN rail mounting for hassle-free installation.

• Stable Performance: Operates reliably across a broad temperature range with high repeatability.

• Certified for Safety: CE and UL certifications guarantee compliance with industry standards.

Frequently Asked Questions (FAQ)

1. Q: What types of RTDs are supported by the 1C31164G01?

   A: It supports Pt100, Pt1000, Ni120, Ni100, and several other RTD types.

2. Q: How many channels does the module have?

   A: The module provides 8 RTD input channels.

3. Q: Can this module compensate for lead wire resistance?

   A: Yes, it supports 2-wire, 3-wire, and 4-wire configurations with lead wire resistance compensation.

4. Q: What is the measurement accuracy?

   A: Typical accuracy is ±0.1°C over the operating temperature range.

5. Q: What is the operating temperature range of the module?

   A: It operates between -20°C and +70°C.

6. Q: How is the module powered?

   A: The module receives power from the Ovation system backplane.

7. Q: Is the module suitable for noisy industrial environments?

   A: Yes, it is designed with high noise immunity against EMI and RFI.

8. Q: What is the physical size of the module?

   A: Dimensions are 120 x 90 x 60 mm.

9. Q: Does the module require calibration?

   A: Periodic calibration is recommended to maintain accuracy but it comes factory calibrated.

10. Q: Is the module certified for safety and compliance?

    A: Yes, it holds CE and UL certifications.
