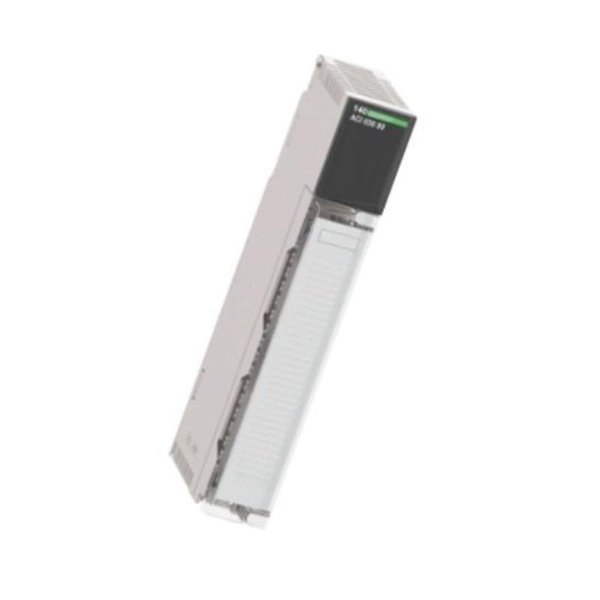

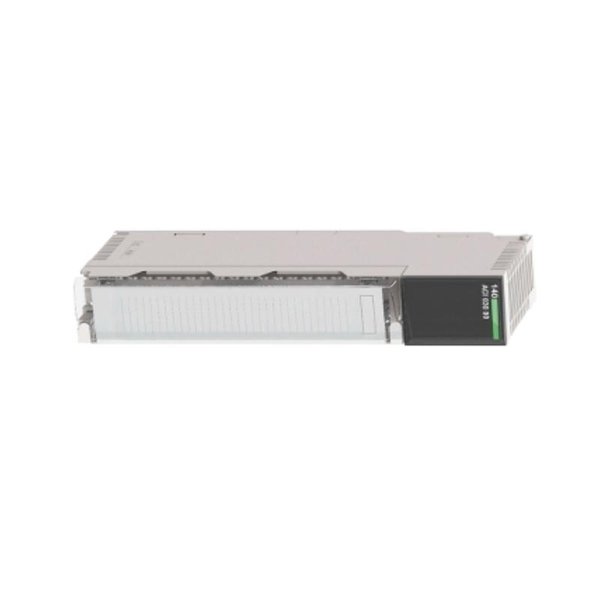

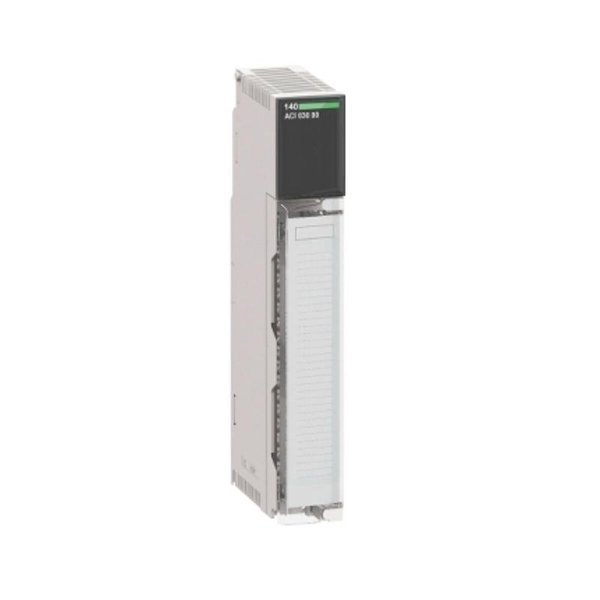

Schneider 140AIO33000C Intrinsically Safe Current Input Modules

Combines analog input and output functionalities in a single module

• Supports a wide range of analog signals including current and voltage

• High-resolution input/output for precise control and monitoring

• Isolated channels for improved signal integrity and safety

• Easy configuration via Unity Pro or EcoStruxure Control Expert

• Integrated LED indicators for real-time diagnostics

• Hot-swappable design minimizes system downtime

• DIN rail or rack-mounted with Modicon Quantum architecture

Product Specifications

Applications

The Schneider 140AIO33000C module is ideally suited for the following applications:

• Process Automation: Monitoring and controlling temperature, pressure, flow, and level in chemical, oil & gas, and pharmaceutical plants.

• Manufacturing Systems: Controlling motor speed, feedback systems, and analog sensors in automated manufacturing environments.

• Water Treatment Facilities: Monitoring water quality parameters such as pH, turbidity, and flow rate.

• Energy Management: Reading analog signals from energy meters, transducers, and load centers.

• HVAC Systems: Managing heating, cooling, and ventilation parameters based on analog sensor feedback.

• Building Automation: Integration with temperature sensors, lighting controls, and environmental monitoring systems.

Advantages

• Space Efficiency: Combines input and output functions in one module, reducing hardware complexity.

• Flexibility: Supports a wide range of analog signal types, making it suitable for various industrial needs.

• Reliability: Industrial-grade design with high resistance to temperature and humidity changes.

• Diagnostics: Integrated LED indicators and software tools provide real-time system feedback.

• Interoperability: Fully compatible with Modicon Quantum series, enhancing system scalability.

• Easy Maintenance: Hot-swappable design allows replacement without shutting down the entire system.

• Reduced Downtime: Simplified troubleshooting and configuration via Schneider’s EcoStruxure platform.

FAQs (Frequently Asked Questions)

1. Q: What type of signals does the 140AIO33000C support?

   A: It supports both voltage (0–10 V) and current (4–20 mA) analog signals for input and output.

2. Q: Can this module be used in safety-critical applications?

   A: While reliable, it should be used alongside certified safety systems for critical applications.

3. Q: Is the module hot-swappable?

   A: Yes, it supports hot-swapping within a powered Quantum rack.

4. Q: What software is required for configuration?

   A: It can be configured using Schneider’s Unity Pro or EcoStruxure Control Expert.

5. Q: How are the input/output channels isolated?

   A: Channels are isolated from the backplane and each other to ensure signal integrity.

6. Q: What is the maximum resolution of the analog signals?

   A: The module offers up to 12-bit resolution for both inputs and outputs.

7. Q: Can it be used in outdoor environments?

   A: It should be housed in a protective enclosure if used in outdoor or harsh environments.

8. Q: What happens if one channel fails?

   A: Fault diagnostics and LED indicators help isolate and identify the faulty channel quickly.

9. Q: Does it support redundant systems?

   A: Yes, it is compatible with Quantum systems that support redundancy configurations.

10. Q: What industries commonly use this module?

    A: It’s widely used in water treatment, power generation, manufacturing, and petrochemical sectors.
