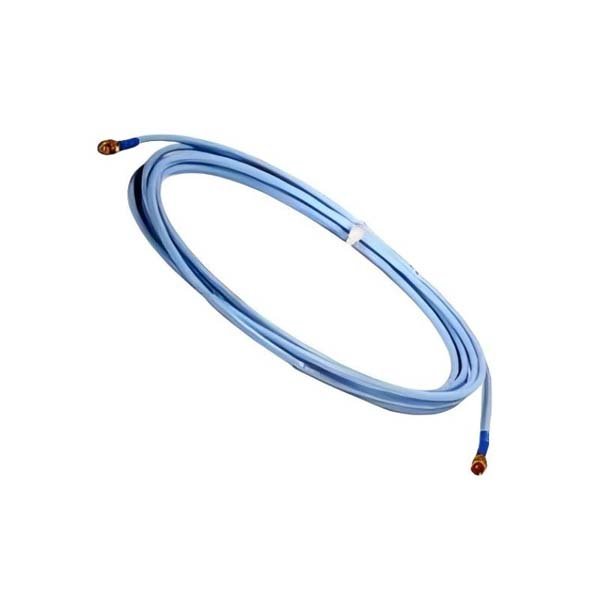

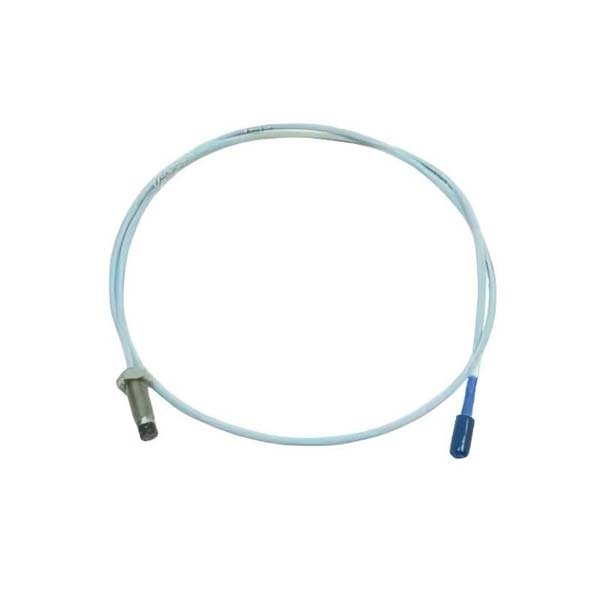

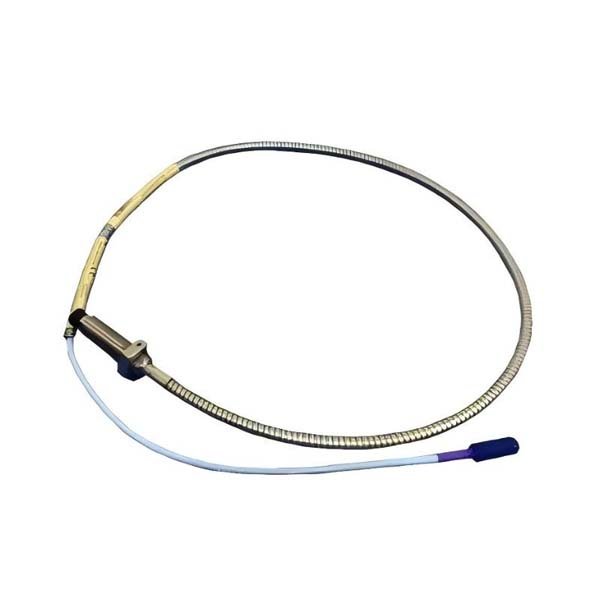

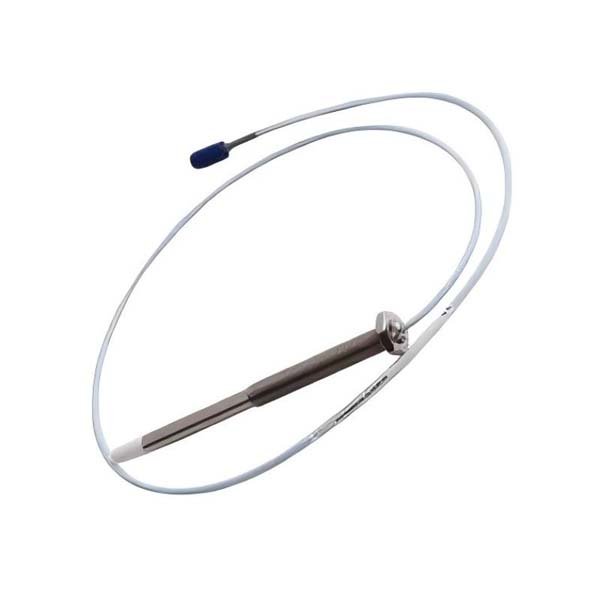

Bently Nevada 330704-000-060-50-11-05 Vibration / Velocity Sensor Module

The Bently Nevada 330704-000-060-50-11-05 Vibration / Velocity Sensor Module is designed for high-fidelity monitoring of rotor dynamics and vibration in critical rotating machinery. This module converts mechanical vibration into precise electrical signals for analysis, protection, and condition-based maintenance.

Engineers developing monitoring solutions favor this sensor for its wide frequency response, low noise, and robust construction. Its design allows seamless integration into 3500/42M vibration monitoring racks and digital monitoring architectures, enabling real-time diagnostic insights into machine health.

Technical Specifications

Applications / Field Deployment Examples

• Monitoring rotor vibration in steam and gas turbines.

• Compressor and pump vibration analysis for imbalance, misalignment, or looseness.

• Integration into 3500/42M racks for real-time machinery protection and diagnostics.

• Predictive maintenance programs where early detection of abnormal vibration is critical.

• Retrofit projects replacing legacy velocity sensors with high-precision modules.

Advantages / Key Features / Engineering Benefits

• High-Frequency Response: Captures both low- and high-frequency rotor dynamics.

• Robust Design: Withstands harsh industrial environments and mechanical shocks.

• Seamless Integration: Direct interface with 3500/42M monitoring systems.

• Accurate Diagnostics: Enables precise identification of imbalance, misalignment, and bearing faults.

• Field-Friendly: Compact form factor simplifies installation and maintenance.

• Reliable Calibration: Factory-calibrated with minimal drift over time.

FAQs

1. What vibration types can it measure?

   – Shaft relative vibration, velocity, and dynamic displacement.

2. Is it compatible with older 3300 racks?

   – Primarily designed for 3500/42M; consult integration specifications for retrofits.

3. What is the operational frequency range?

   – 0.5 Hz to 10 kHz.

4. Can it withstand high ambient temperatures?

   – Yes, rated up to +120 °C.

5. What mounting is recommended?

   – Bearing housing or rigid machine frame for accurate readings.

6. Is field recalibration necessary?

   – Periodic verification is recommended; factory calibration is reliable.

7. What connector type does it use?

   – Standard coaxial compatible with 3500 series racks.

8. Can multiple sensors be connected to a single channel?

   – No; each sensor requires its own channel for accurate measurement.

9. Is this sensor suitable for predictive maintenance?

   – Yes, it provides high-resolution vibration data for early fault detection.

10. How is noise minimized in the signal?

    – Through mechanical isolation, proper cabling, and internal conditioning.
