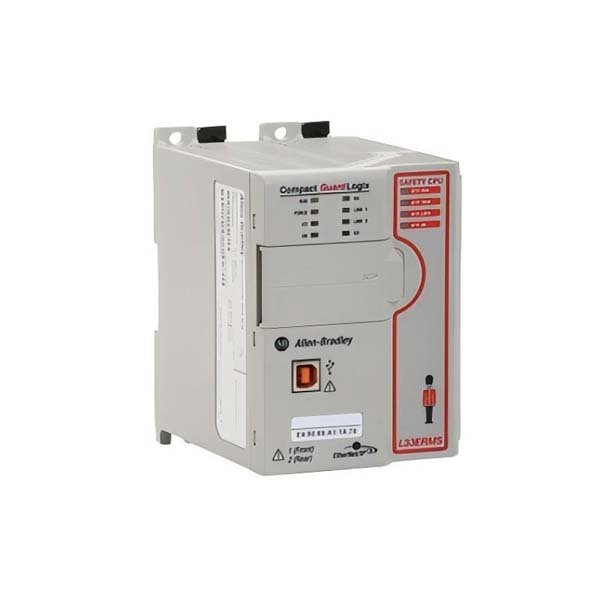

Allen-Bradley 1769-L38ERMS Compact GuardLogix CPU Module

The Allen-Bradley 1769-L38ERMS Compact GuardLogix CPU Module is a high-performance, dual-core safety controller designed for integrated standard and safety control in one compact system. As part of Rockwell Automation’s CompactLogix 5380 family, this module provides precise motion, discrete, and analog control while integrating SIL 3 and PLe-rated safety functionality — making it ideal for machine safety, motion applications, and complex control systems that demand both speed and reliability.

Its advanced architecture supports EtherNet/IP communication, dual Ethernet ports with device-level ring (DLR) topology, and high-speed processing that enhances overall system performance. The 1769-L38ERMS enables engineers to consolidate multiple controllers into one platform, reducing wiring, footprint, and maintenance complexity while maintaining rigorous safety standards.

Technical Specifications

Typical Industrial Applications

• Automotive Manufacturing Lines: Synchronization of robotic cells and conveyor systems with integrated safety interlocks.

• Packaging and Material Handling Systems: Safety-enabled motion and product tracking control.

• Food and Beverage Production: Reliable line control with clean-in-place (CIP) compatibility.

• Pharmaceutical Automation: Safe sequencing of filling, sealing, and inspection processes.

• Oil & Gas Processing Units: Redundant safety control for pumps, valves, and compressors.

• Machine Safety Systems: Emergency stop, zone control, and safe torque-off implementation.

Key Functional Advantages

• Integrated Standard + Safety Control: One processor handles both standard and SIL-rated logic for seamless safety integration.

• Faster Processing Speed: 5380 architecture delivers sub-millisecond scan times.

• EtherNet/IP with DLR: Built-in redundancy ensures continuous communication without downtime.

• High-Performance Motion: Supports up to 16 axes of coordinated servo motion.

• Compact Design: Fits into small control panels without compromising scalability.

• Secure Configuration: Password and signature verification protect safety projects.

• Low Power Consumption: Optimized design for energy efficiency and heat reduction.

• Easy Migration: Compatible with Studio 5000 Logix Designer software.

• Enhanced Diagnostics: Real-time fault detection and status monitoring.

• Global Compliance: Certified for use in hazardous and regulated environments.

FAQs

1. Q: Does the 1769-L38ERMS support standard and safety programs simultaneously?

   A: Yes, it runs both standard Logix and GuardLogix safety tasks in parallel.

2. Q: What safety integrity level does it achieve?

   A: SIL 3 and Performance Level e (PLe).

3. Q: Can I connect both standard and safety I/O modules?

   A: Yes, it supports 1769 Compact I/O modules for both control types.

4. Q: Does it require a battery for memory retention?

   A: No, it uses non-volatile memory and retains data without a battery.

5. Q: How many motion axes can it control?

   A: Up to 16 axes of integrated Kinetix motion.

6. Q: What programming software is required?

   A: Studio 5000 Logix Designer with GuardLogix license.

7. Q: Is the module hot-swappable?

   A: The CPU itself is not, but I/O modules on the bus can be replaced in sequence.

8. Q: Can it be used in redundant systems?

   A: Redundancy is achieved at the network or safety-level, not controller-level.

9. Q: What communication protocols does it support?

   A: EtherNet/IP, CIP Safety, and CIP Motion.

10. Q: What is the maximum number of supported local I/O modules?

    A: Up to 31 Compact I/O modules on the local bus.
