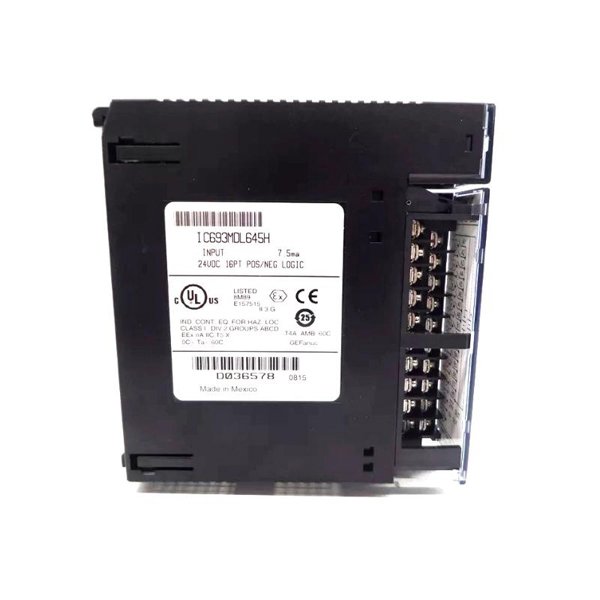

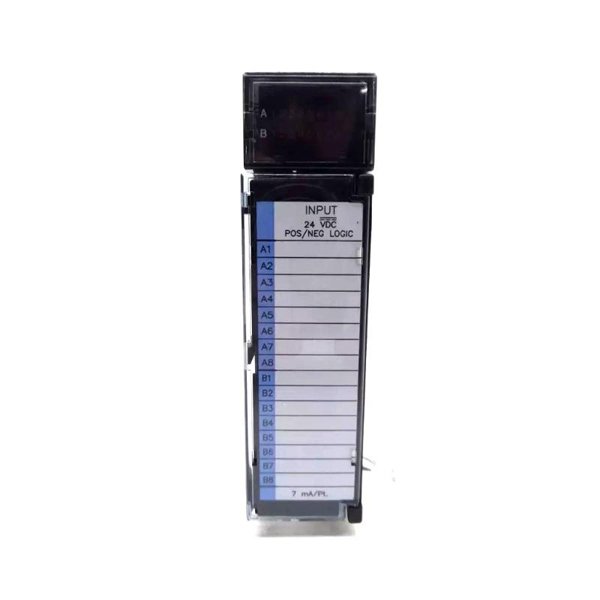

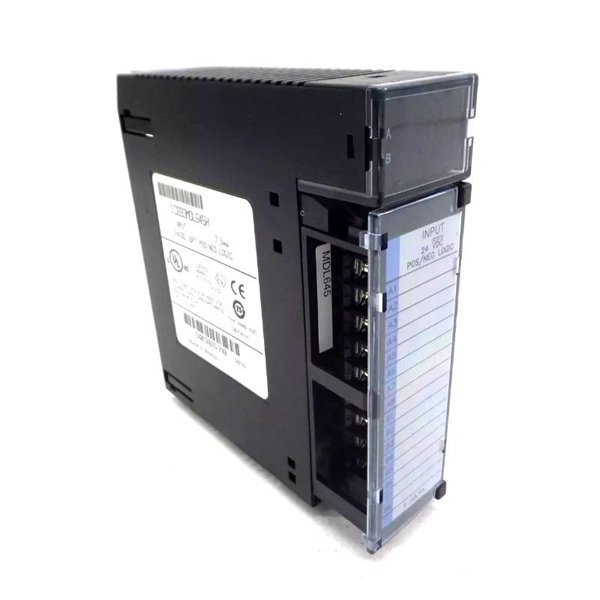

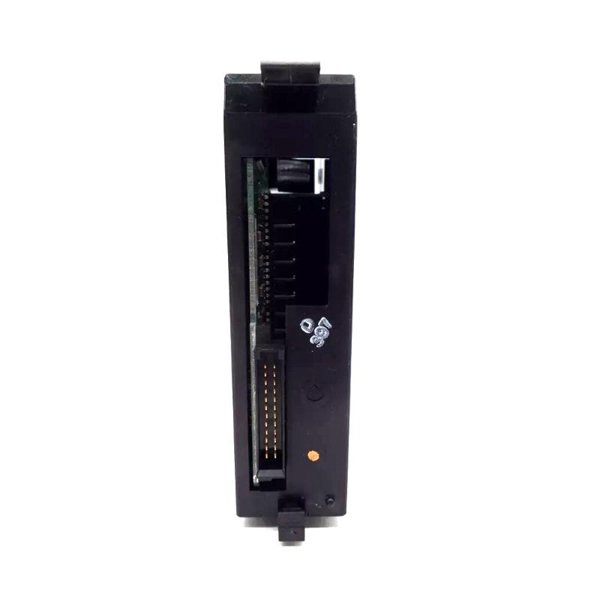

General Electric IC693MDL645H Positive/Negative Logic Input Module

With 32 output points arranged in four isolated groups, the IC693MDL645H provides high-density output capability while ensuring electrical isolation to reduce the risk of cross-interference. Its design reflects GE’s commitment to providing cost-effective, compact, and user-friendly solutions without compromising on performance.

Product Parameters

Product Applications

The IC693MDL645H module is widely used in industrial and commercial environments where reliable and fast-response discrete output control is required. Typical applications include:

• Automated production lines

• Packaging machinery

• Conveyor systems

• Process control systems

• Material handling systems

• HVAC control systems

• Energy management panels

Thanks to its high-density design and reliable solid-state outputs, it is especially suitable for large-scale applications where numerous discrete outputs must be controlled in limited space.

Product Advantages

• Compact Design: High-density 32-point module helps save valuable panel space.

• Electrical Isolation: Four separate groups with isolated commons improve system reliability and safety.

• Fast Switching: Quick response times (<1 ms) support applications requiring precise control.

• Solid-State Outputs: Longer lifespan compared to mechanical relays, with less maintenance.

• Clear Diagnostics: Built-in LED indicators for each output channel help with quick troubleshooting.

• Seamless Integration: Fully compatible with the GE Series 90-30 PLC platform, ensuring ease of installation.

These strengths make the IC693MDL645H a practical choice for automation engineers and maintenance teams alike.

FAQ

Q1: What is the maximum current each output can handle?

A1: Each output point can handle up to 0.5 A, and each group of 8 outputs can handle a total of 4 A.

Q2: Can this module switch AC loads?

A2: No, it is specifically designed for DC loads, with a nominal voltage of 24 VDC.

Q3: Does it have output protection against short circuits?

A3: Yes, the module features electronic short-circuit protection for safer operation.

Q4: Is the IC693MDL645H hot-swappable?

A4: No, the module should be installed or removed when the PLC is powered down to avoid damage.

Q5: Are the outputs isolated?

A5: Yes, there are four groups of 8 outputs each, and each group is isolated from the others.

Q6: How can I check output status?

A6: The front panel has LED indicators showing the status of each individual output.

Q7: What type of wiring is recommended?

A7: It is recommended to use shielded cables and proper grounding to minimize noise.

Q8: Which PLC series supports this module?

A8: The IC693MDL645H is designed for use with the GE Series 90-30 PLC system.

Q9: Is there a replacement or newer version available?

A9: Yes, newer GE modules with similar functionality exist, but compatibility and system requirements should be checked.

Q10: What maintenance does the module require?

A10: Periodic inspection for loose wiring and checking the LED indicators; otherwise, the solid-state design requires minimal maintenance.
