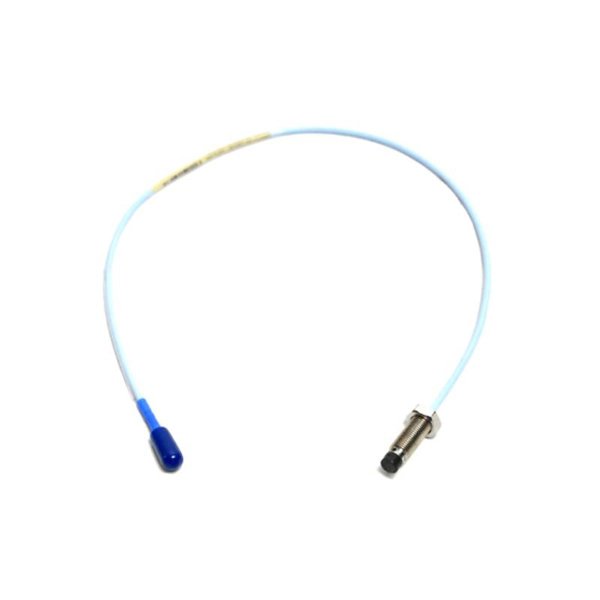

Bently Nevada 330103-17-22-10-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330103-17-22-10-02-05 3300 XL 8mm Proximity Probe is a precision-engineered sensor specifically designed for the measurement of shaft vibration and displacement in rotating machinery. As a key component of the industry-leading 3300 XL series, this proximity probe provides dependable and accurate monitoring, essential for maintaining equipment health and preventing unexpected downtime.

Featuring an 8mm probe tip length, this model strikes an excellent balance between sensitivity and durability, making it ideal for use in demanding environments such as power plants, refineries, and manufacturing facilities. The probe is built with high-quality stainless steel housing and incorporates advanced eddy current technology, ensuring robust performance under wide temperature and vibration ranges.

Product Specifications

Applications

The 330103-17-22-10-02-05 proximity probe is widely deployed in industries where accurate vibration and shaft position measurements are critical, including:

• Power Generation: Monitoring turbine shafts, generators, and motors to ensure efficient and safe operations.

• Oil and Gas: Continuous monitoring of compressors, pumps, and drilling machinery to detect early mechanical faults.

• Aerospace: Ensuring engine health and rotary component stability in aircraft and spacecraft systems.

• Manufacturing: Applied in high-speed spindles, gearboxes, and conveyors to detect misalignment or imbalance.

• Mining and Metals: Used for monitoring crushers, mills, and conveyor belts in rugged mining environments.

• Chemical Processing: Protecting pumps, agitators, and other rotating equipment in harsh chemical plant conditions.

Advantages

• Exceptional Accuracy: Employing eddy current sensing for precise and reliable displacement measurements.

• Durable Design: Stainless steel construction resists corrosion, impact, and wear in demanding environments.

• Wide Temperature Tolerance: Operates effectively between -40°C and 120°C, suitable for diverse industrial settings.

• System Compatibility: Fully integrates with Bently Nevada’s 3300 XL system modules, allowing easy upgrades and replacements.

• User-Friendly Installation: Compact form factor and standard connectors simplify setup and maintenance.

• Stable and Reliable Output: Produces a clean AC voltage signal for consistent monitoring and analysis.

• High Shock and Vibration Endurance: Built to withstand severe mechanical stress, reducing the risk of sensor failure.

• Flexible Cabling Options: Custom cable lengths are available to accommodate different installation needs.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 330103-17-22-10-02-05 probe?

   It measures shaft displacement and vibration, helping detect machinery faults early.

2. Is this probe compatible with the Bently Nevada 3300 XL system?

   Yes, it is designed specifically for seamless integration with the 3300 XL series.

3. What kind of signal does this probe output?

   It provides an AC voltage signal proportional to the shaft’s position.

4. Can I get this probe with a longer cable?

   Yes, while the standard total length is 1 meter, custom lengths are available upon request.

5. What environmental conditions can this probe operate under?

   It works reliably in temperatures from -40°C to 120°C and tolerates significant vibration and shock.

6. Does the probe require an external power supply?

   No, it operates without external power by generating an eddy current signal.

7. How often should the probe be inspected or calibrated?

   Regular inspection and annual calibration are recommended, depending on operating conditions.

8. Is the probe suitable for high-speed rotating machinery?

   Yes, it is designed for use on shafts with high rotational speeds.

9. What should I do if the cable gets damaged?

   Replace the cable immediately to avoid measurement errors or signal loss.

10. Can this probe detect shaft misalignment?

    Yes, by analyzing displacement and vibration data, it helps identify misalignment issues.
