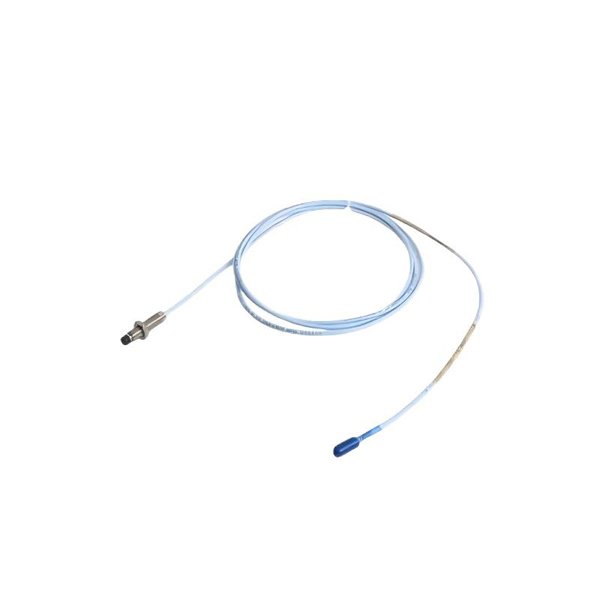

Bently Nevada 330103-17-23-05-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-17-23-05-02-05 3300 XL 8 mm Proximity Probe is designed to provide accurate and reliable measurement of the displacement between machinery components, particularly in critical rotating machinery. This 3300 XL Proximity Probe is a part of the 3300 Series and is engineered to offer superior performance and durability in high-demand industrial environments.

Ideal for use in applications such as turbine monitoring, motor health monitoring, and pump performance tracking, the 3300 XL series probes are known for their high accuracy, long service life, and ease of integration into existing monitoring systems. The 8 mm probe specifically offers exceptional sensitivity, enabling precise detection of even the smallest variations in shaft position. This sensor plays a vital role in real-time condition monitoring, ensuring operational safety and efficiency.

With a Total Length of 0.5 meters and a weight of 0.161 kg, this probe is compact, easy to install, and designed for environments where space is constrained. Its rugged construction ensures it performs reliably even in harsh operating conditions, making it a key component in a wide range of industrial applications.

Product Parameters

Product Applications

The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used across several industrial sectors that require precise and reliable machine condition monitoring:

• Rotating Machinery Monitoring: Ideal for monitoring the displacement of rotating machinery parts such as shafts, bearings, and other critical components in turbines, motors, and compressors.

• Turbine and Generator Monitoring: Ensures the accuracy and health of turbine and generator shafts, detecting issues such as misalignment, wear, or vibration.

• Pump and Motor Condition Monitoring: Provides real-time data on the displacement and vibration of motors and pumps, helping prevent failure through early detection of potential problems.

• Automated Monitoring Systems: Integrated into automated machine condition monitoring systems, allowing for continuous real-time data transmission to predictive maintenance software for proactive action.

• Bearing and Shaft Displacement: Accurate measurement of bearing and shaft displacements ensures smooth operation and longevity of machinery in critical applications like steel mills, petrochemical plants, and power plants.

• Vibration and Alignment Measurement: Enables precise monitoring of machine alignment and vibration levels, preventing excessive wear and tear that can lead to costly repairs or downtime.

Product Advantages

• High Precision and Sensitivity: With an accuracy of ±0.001 mm, the 3300 XL probe is highly sensitive, offering exceptional precision for detecting even minute changes in machinery performance.

• Compact and Lightweight: With a total length of 0.5 meters and weighing only 0.161 kg, the probe is easy to install in tight spaces and offers flexible positioning in complex machine setups.

• Wide Temperature Range: The probe operates effectively within a temperature range of -40°C to +85°C, ensuring reliable operation in extreme industrial environments.

• Durable and Robust Construction: Featuring an IP67 protection class, the probe is dust and water-resistant, ensuring long-term durability in harsh conditions such as high humidity, temperature extremes, and vibration.

• Eddy Current Technology: The probe utilizes eddy current sensing technology, which provides non-contact measurement of machine displacement, reducing wear and tear on both the probe and the machinery.

• Easy Integration: With a 4-20 mA analog output, the probe is compatible with most machine monitoring systems, making it easy to integrate into existing infrastructure for real-time data collection and analysis.

• Low Maintenance Requirements: Built to operate reliably for long periods, this probe requires minimal maintenance, reducing the need for frequent checks or replacements.

• High-Frequency Range: The probe supports a frequency range from 100 Hz to 5 kHz, making it suitable for a wide range of machinery and applications with varying operational speeds.

• Reliable Performance: The Bently Nevada 3300 XL series is known for providing consistent and reliable performance over time, even in challenging operating conditions.

• Versatile Mounting Options: The probe can be mounted using either DIN rail or direct mount, offering flexibility depending on your installation needs.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A1: The primary function of the 3300 XL 8 mm Proximity Probe is to measure the displacement of rotating machinery parts, providing real-time data for machine condition monitoring.

Q2: What is the total length of this probe?

A2: The total length of the 3300 XL 8 mm Proximity Probe is 0.5 meters.

Q3: What is the weight of the probe?

A3: The weight of the probe is 0.161 kg.

Q4: What output type does the probe provide?

A4: The probe provides a 4-20 mA analog output for seamless integration with monitoring systems.

Q5: What is the accuracy of the Bently Nevada 3300 XL 8 mm Proximity Probe?

A5: The probe offers an accuracy of ±0.001 mm.

Q6: What is the temperature range of the probe?

A6: The probe operates within a temperature range of -40°C to +85°C.

Q7: What is the protection class of the probe?

A7: The probe has an IP67 protection class, making it resistant to dust and water.

Q8: Can the 3300 XL probe be used in extreme industrial conditions?

A8: Yes, the probe is designed for use in harsh environments, withstanding temperature extremes and exposure to dust and moisture.

Q9: How is the probe mounted?

A9: The probe can be mounted using DIN rail or direct mount, depending on your installation preferences.

Q10: Is the 3300 XL 8 mm Proximity Probe compatible with all machine monitoring systems?

A10: Yes, the probe’s 4-20 mA analog output is widely compatible with most machine condition monitoring systems.
