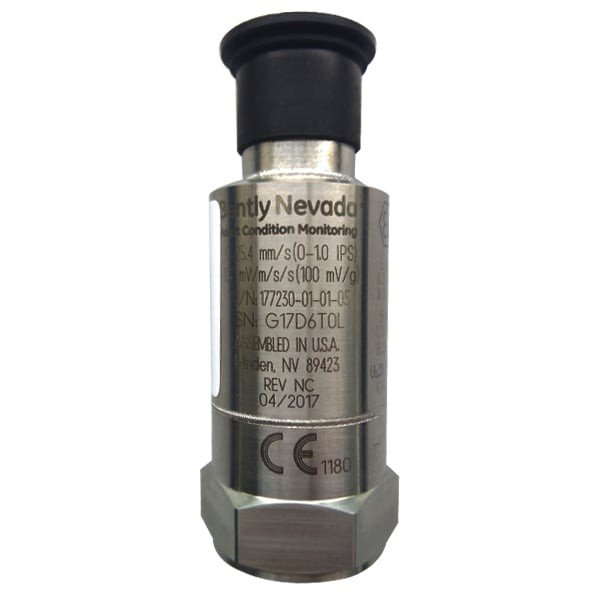

Bently Nevada 177230-01-01-05 Seismic Transmitter
Item Number: 177230-01-01-05
Brand: Bently Nevada
Lead Time: In stock
Description:Seismic Transmitter
Payment: T/T
Product Description
Bently Nevada 177230-01-01-05 is an intrinsically safe, loop-powered vibration transmitter used for monitoring vibrations in machine housings. This transmitter is primarily used to measure absolute vibrations (i.e., vibrations relative to free space) generated by bearings, gears, or other mechanical components.
The main function of the 177230-01-01-05 is to convert the mechanical vibration signal detected by the built-in seismic sensor (usually a velocity sensor or accelerometer) into a standard current signal for output.
Ordering information
|
Parameter |
Options & Specifications |
|
Model Code |
177230-AA-BB-CC (A: Measurement Range, B: Frequency, C: Approvals) |
|
Measurement Range (A) |
00: 0 - 12.7 mm/s (0-0.5 in/s) 01: 0 - 25.4 mm/s (0-1.0 in/s) 02: 0 - 50.8 mm/s (0-2.0 in/s) |
|
Frequency Range (B) |
01: 10 Hz to 1 kHz (600 to 60,000 CPM) -RMS 02: 3 Hz to 1 kHz (180 to 60,000 CPM) -Peak |
|
Certifications (C) |
05: CSA/NRTL/C, ATEX/IECEx (Hazardous Environment Approvals) |
Function & Features
- The 177230-01-01-05 outputs a raw vibration signal proportional to the vibration velocity or acceleration. This signal can be used by the control system for direct alarm purposes or connected to analysis equipment for waveform verification and spectrum analysis.
- The 177230-01-01-05 provides accurate and repeatable vibration measurement data, providing a basis for condition monitoring and alarms.
- The 177230-01-01-05 supports interface with mainstream control systems such as PLCs, DCSs, and SCADAs. Its interface design is consistent with conventional PLC input devices, resulting in a short learning curve.
- The 177230-01-01-05 includes a self-test function, allowing users to quickly verify whether the device is functioning correctly.
Specifications
| Parameter | Details |
|---|---|
| Product Model | 177230-01-01-05 |
| Settling Time | Less than 15 seconds within 2% of final value |
| Mounted Resonant Frequency | Greater than 12 kHz |
| Sensing Element Type | Ceramic / Shear |
| Sensor Seal | Hermetically sealed |
| Weight | 131g (4.62 oz), typical |
| Diameter | 25.4 mm |
| Height | 66.0 mm |
| Case Material | 316L stainless steel |
| Connector | 3-pin MIL-C-5015, 316L stainless steel |
| Mounting Hole | ¼-28 UNF |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
