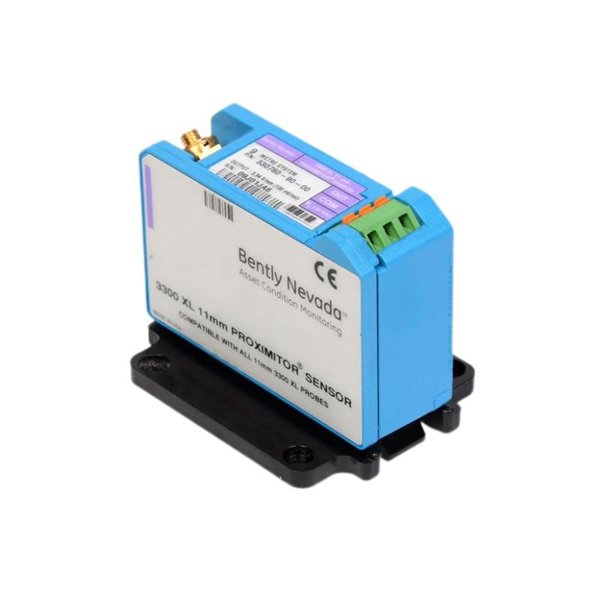

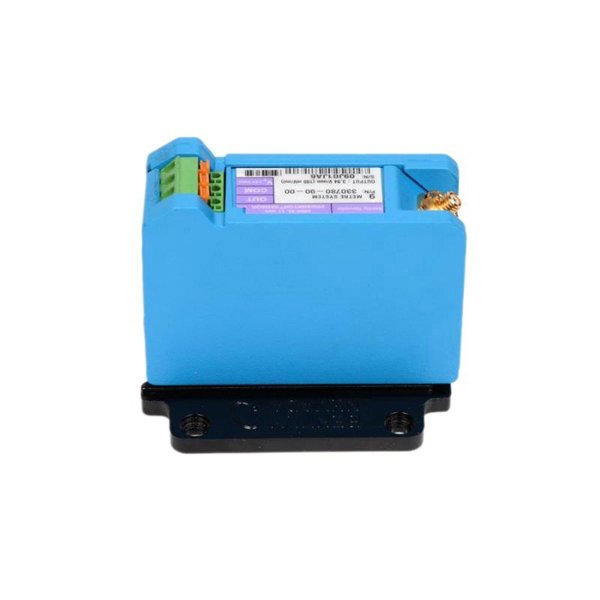

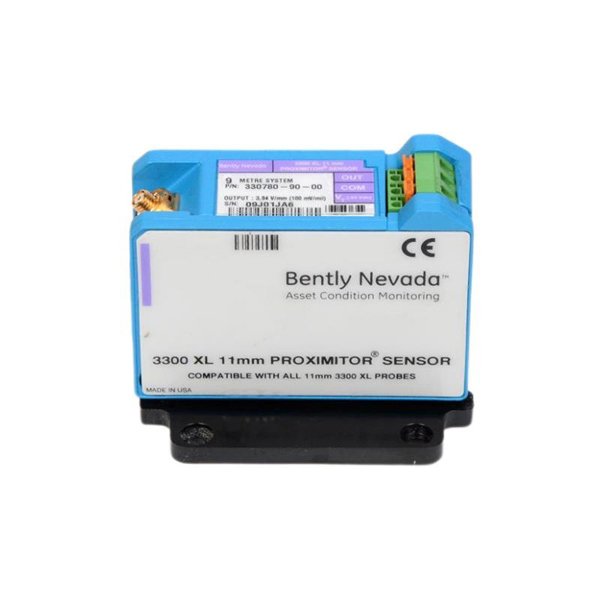

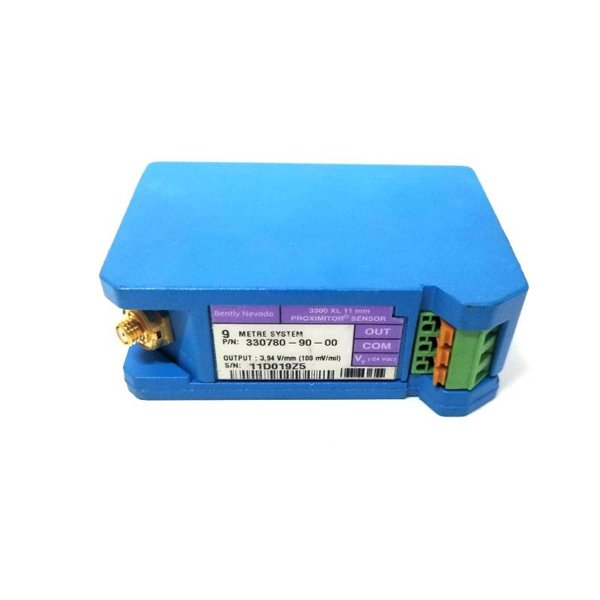

Bently Nevada 330780-90-00 3300 XL 11 mm Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330780-90-00
Product Type:3300 XL 11 mm Proximitor Sensor
Origin:USA
Total Length:9.0 meters
Weight:0.255 kg
Views:50
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The 330780-90-00 Bently Nevada 3300 XL 11 mm Proximitor Sensor is part of a proximity transducer system designed for high-precision, non-contact vibration and position measurements. It includes the probe, extension cable, and Proximitor sensor, delivering a scalable 3.94 V/mm output. This model is engineered for applications requiring a longer linear range than the standard 8 mm probes.
Applications
-
Axial (thrust) position measurements
-
Rod drop detection in reciprocating compressors
-
Differential expansion in steam turbines
-
Tachometer and zero-speed detection
-
Keyphasor (phase reference) signal acquisition
Product Advantages
-
Extended Linear Range: 4.0 mm linear, up to 5.0 mm DSL range
-
Improved RFI/EMI Immunity: Reliable signal integrity in noisy environments
-
Robust Construction: Gold-plated connectors, armored options, PPS tip material
-
Flexible Mounting: DIN rail or panel mount support
-
ClickLoc and TipLoc Technologies: Secure and stable connection design
-
FluidLoc Option: Prevents oil leakage through cable interiors
Technical Specifications
| Parameter | Specification |
|---|---|
| System Model | 330780-90-00 |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0 to 8 kHz |
| Linear Range | 0.5 to 4.5 mm (20 to 180 mils) |
| Extended Range | Up to 5.0 mm (200 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Power Supply | -17.5 VDC to -26 VDC |
| System Length | 9.0 meters |
| Dimensions (Sensor housing) | DIN or panel mount type |
| Weight | 0.255 kg (sensor only) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Sensor) | -52°C to +100°C |
| Humidity | 100% condensing (non-submersible) |
| Mounting Type | Panel Mount (90) |
Frequently Asked Questions (FAQ)
Q1: What is the linear range of the 330780-90-00 sensor?
A1: The linear range is 0.5 mm to 4.5 mm with an extended range up to 5.0 mm.
Q2: Can this sensor be used in high-temperature environments?
A2: Yes, the probe operates from -52°C to +177°C, and the sensor operates from -52°C to +100°C.
Q3: Is the 330780-90-00 backward compatible with older 7200-series systems?
A3: No, all components must be replaced with 3300 XL equivalents.
Q4: What kind of mounting options are available?
A4: The sensor supports DIN rail and panel mounting.
Q5: Does the sensor support Keyphasor applications?
A5: Yes, it’s suitable for phase reference signal detection.
Q6: What materials are used for the sensor housing and connectors?
A6: The sensor is made of A380 aluminum and uses gold-plated brass connectors.
Q7: How is cable leakage prevented?
A7: With FluidLoc cable options and connector protectors.
Q8: Can this sensor operate in hazardous environments?
A8: Yes, it has multiple certifications including ATEX, IECEx, and cNRTLus.
Q9: What is the weight of the 330780-90-00 sensor?
A9: Approximately 0.255 kg.
Q10: What power supply is required?
A10: -17.5 VDC to -26 VDC with a maximum current of 12 mA.
