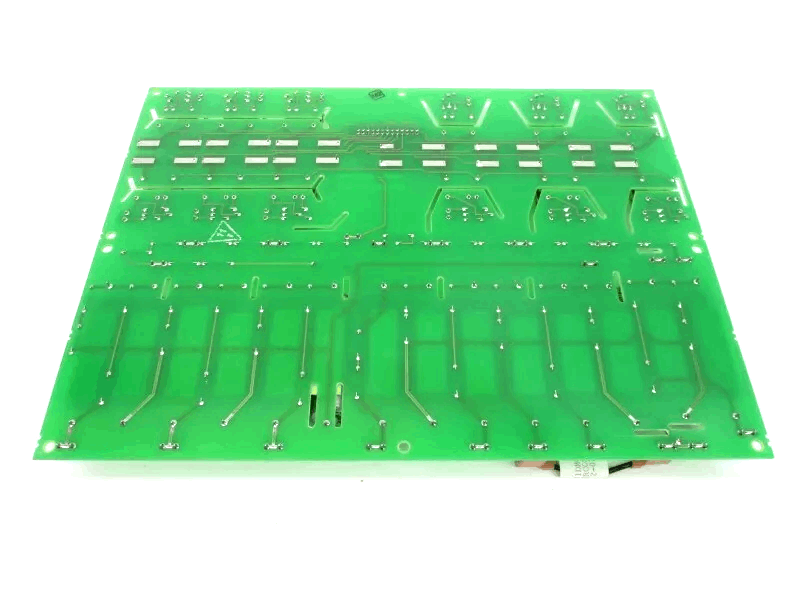

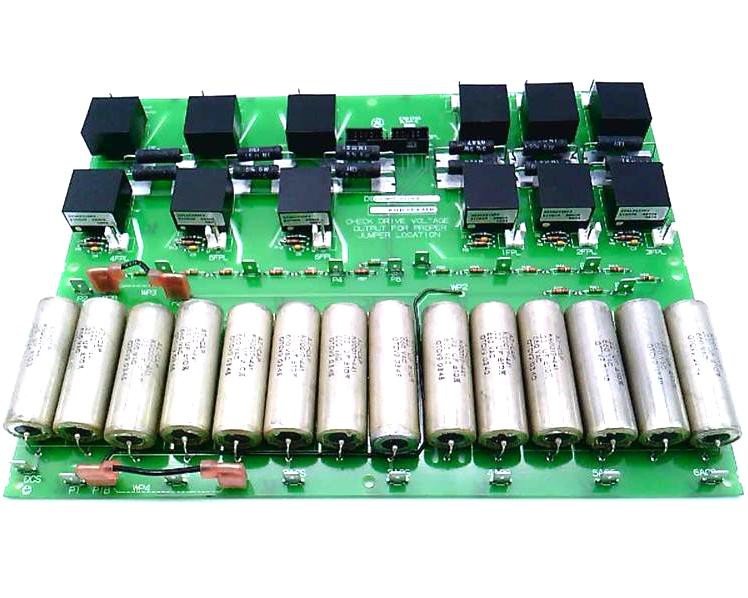

General Electric DS200PCCAG1ACB Power Connect Board

GE DS200PCCAG1ACB Power Connection Board is a critical component in the EX2000 system and is designed to act as an intermediary between the drive control circuitry and the SCR power bridge. The board plays a key role in regulating and optimizing the power flow within the drive system.This power connection board is critical to the proper operation and protection of the drive system, ensuring power control and distribution.

Features

• Pulse Transformer: The board uses a pulse transformer to provide the necessary gate drive to the SCR power bridge, which is critical to regulating the firing sequence and control of the SCRs. This ensures that the power flow throughout the system is controlled and optimized.

• Snubber Circuits: For low and medium horsepower controllers, snubber circuits are incorporated into the board to prevent voltage spikes at critical points within the system, including the AC line, DC bus, and gate drivers.

• Higher Horsepower Controllers: For high horsepower controllers, some or all of the snubber circuits are omitted from the board. Instead, they are placed elsewhere in the system. This allows for a more specialized snubber circuit approach in the application.

Appilications

GE DS200PCCAG1ACB Power Connect Board is one of the key components in the General Electric (GE) Mark VIe series gas turbine control system. Its main function is to provide power connection and distribution for the control system, ensuring the power supply of each module of the system. The following is a detailed introduction to its functions and application scenarios:

• Gas turbine control system: DS200PCCAG1ACB is mainly used for GE's Mark VIe gas turbine control system to provide power for I/O modules, processor modules and other components in the control cabinet.
•
• Power plant: In thermal power plants and combined cycle power plants, it is used for the control system of gas turbines or steam turbines to ensure the operation of power generation equipment.
•
• Oil and gas industry: In natural gas compression stations, oil pipeline pumping stations and other scenarios, it is used to control the operation of compressors and pumps to ensure energy delivery.
•
• Ship power system: In ship gas turbine or diesel engine power systems, it is used to control the operating status of the engine to ensure the normal operation of the ship power system.
