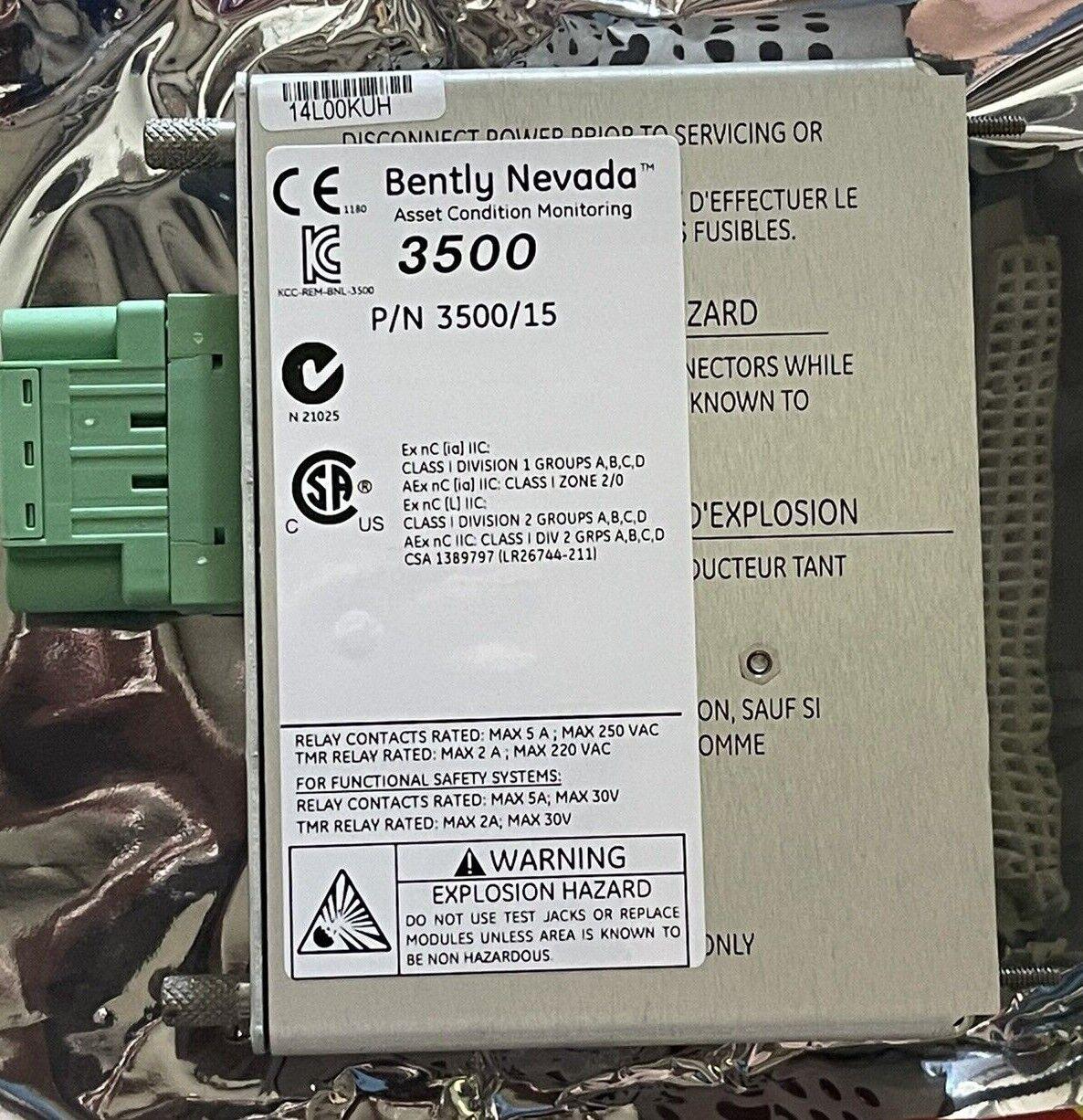

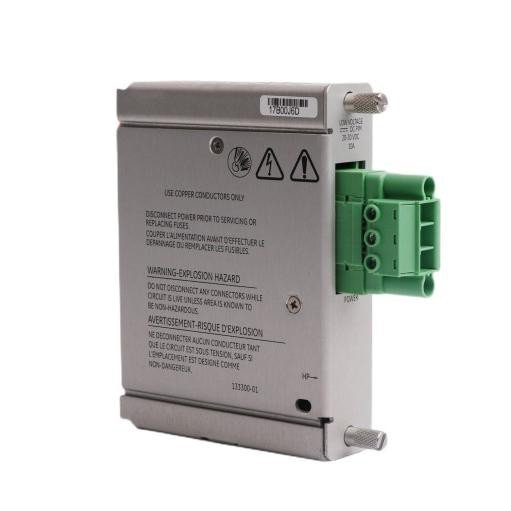

Bently Nevada 3500/15-04-04-00 133300-01 Low Voltage Dc Power Input Module
Item Number:3500/15-04-04-00 133300-01
Brand:Bently Nevada
Lead Time: In stock
Description:Low Voltage dc Power Input Module (PIM)
Payment: T/T
Product Description
Bently Nevada 3500/15-04-04-00 133300-01 low voltage DC power input module is a key component of the 3500 Series Machinery Protection System and is designed to power the various modules in the 3500 rack. As a power module designed for low voltage DC operation, it is an important part of the machinery protection and monitoring system.
The 133300-01 module accepts a wide input voltage range of 88 to 140 volts DC and converts it to a voltage suitable for other 3500 series modules. In rack mounting, the 3500/15 power supply module must be installed in the half-height slot on the left side of the 3500 rack. Each rack can accommodate one or two power supplies (AC and DC can be mixed), and either power supply can power the entire rack. In addition, it adopts a primary redundant power supply design. If one power supply fails, the backup power supply can continue to provide uninterrupted power to the system.
Features
- Input Voltage Rating: The module is designed to accept a wide input voltage range of 88 to 140 Vdc and then convert it to the appropriate voltage for use by the other 3500 Series modules.
- Rack Mounting: The 3500/15 Power Supply Module must be installed in the half-height slot on the left side of the 3500 rack. Each rack can accommodate one or two power supplies (AC and DC can be mixed), either of which can power the entire rack.
- Primary Redundant Power Supplies: The design allows for the use of redundant power supplies, ensuring that if one power supply fails, the backup power supply will continue to power the system uninterruptedly.
- 3500/15-04-04-00 module needs to be installed in the two half-height slots on the left side of the rack for the installation of power supply modules.
- Each slot can only accommodate one power supply module,There is a special half-height module behind the connected power supply, which contains the power input module (PIM) for distributing power to the entire system.
Specification
Below are the parameters of Bently Nevada 3500/15-04-04-00 133300-01 Low Voltage DC Power Input Module：
Operating temperature:Range: -30 °C to +65 °C
Conversion: -22 °F to +150 °F
Storage temperature:Range: -40 °C to +85 °C
Conversion: -40 °F to +185 °F
Humidity:Range: 95%, non-condensing
Loading comments...
Bently Nevada 3500/15-04-04-00 133300-01 Low Voltage Dc Power Input Module
Item Number:3500/15-04-04-00 133300-01
Brand:Bently Nevada
Lead Time: In stock
Description:Low Voltage dc Power Input Module (PIM)
Payment: T/T
Product Description
Bently Nevada 3500/15-04-04-00 133300-01 low voltage DC power input module is a key component of the 3500 Series Machinery Protection System and is designed to power the various modules in the 3500 rack. As a power module designed for low voltage DC operation, it is an important part of the machinery protection and monitoring system.
The 133300-01 module accepts a wide input voltage range of 88 to 140 volts DC and converts it to a voltage suitable for other 3500 series modules. In rack mounting, the 3500/15 power supply module must be installed in the half-height slot on the left side of the 3500 rack. Each rack can accommodate one or two power supplies (AC and DC can be mixed), and either power supply can power the entire rack. In addition, it adopts a primary redundant power supply design. If one power supply fails, the backup power supply can continue to provide uninterrupted power to the system.
Features
- Input Voltage Rating: The module is designed to accept a wide input voltage range of 88 to 140 Vdc and then convert it to the appropriate voltage for use by the other 3500 Series modules.
- Rack Mounting: The 3500/15 Power Supply Module must be installed in the half-height slot on the left side of the 3500 rack. Each rack can accommodate one or two power supplies (AC and DC can be mixed), either of which can power the entire rack.
- Primary Redundant Power Supplies: The design allows for the use of redundant power supplies, ensuring that if one power supply fails, the backup power supply will continue to power the system uninterruptedly.
- 3500/15-04-04-00 module needs to be installed in the two half-height slots on the left side of the rack for the installation of power supply modules.
- Each slot can only accommodate one power supply module,There is a special half-height module behind the connected power supply, which contains the power input module (PIM) for distributing power to the entire system.
Specification
Below are the parameters of Bently Nevada 3500/15-04-04-00 133300-01 Low Voltage DC Power Input Module：
Operating temperature:Range: -30 °C to +65 °C
Conversion: -22 °F to +150 °F
Storage temperature:Range: -40 °C to +85 °C
Conversion: -40 °F to +185 °F
Humidity:Range: 95%, non-condensing
