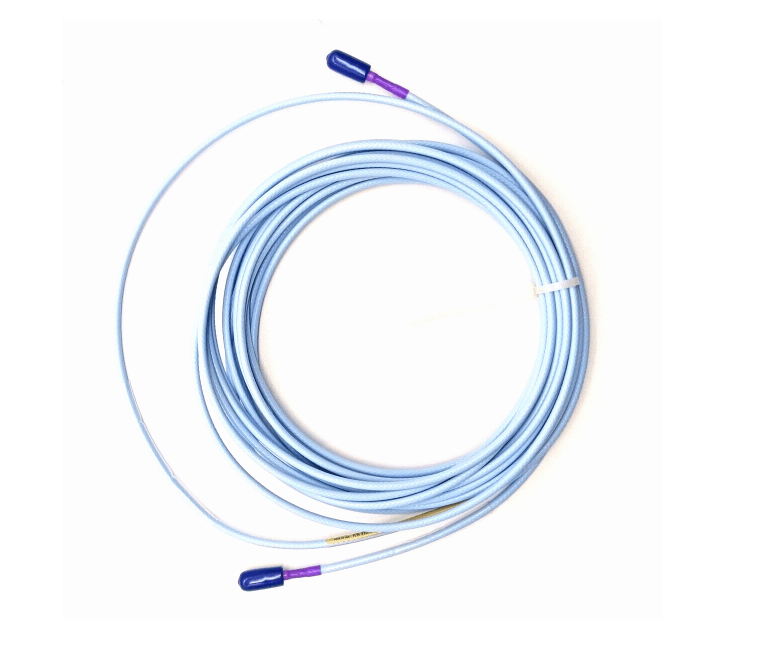

Bently Nevada 330730-080-00-00 3300 XL 11 mm Extension Cable
Item Number: 330730-080-00-00
Brand: Bently Nevada
Lead Time: In stock
Description:3300 XL 11 mm Extension Cable
Payment: T/T
Product Description
Bently Nevada 330730-080-00-00 is an extension cable for eddy-current sensor systems. It is primarily used with the 3300 XL 11 mm probe. The probe and extension cable can be ordered with the FluidLoc® cable option, which prevents oil and other fluids from leaking out of the machine through the inside of the cable. It can be used for mechanical vibration and displacement monitoring, measuring shaft vibration, position and speed.
Function & Features
- FluidLoc® Cable Option: The 330730-080-00-00 extension cable can be ordered with a FluidLoc® cable option. This option prevents oil and other fluids from leaking out of the machine through the cable interior.
- TipLoc™ Construction: The 330730-080-00-00 uses a patented TipLoc™ molding method to create a secure bond between the probe tip and the probe body. The probe cable is securely attached to the probe tip with a patented CableLoc™ design that can withstand a pull force of 330N (75lb) to prevent the cable from accidentally falling off.
- Connector Protector: The connector protector option provides additional protection for the connector in wet environments. Each 330730-080-00-00 extension cable also comes with a silicone band that can be used instead of the connector protector.
Specifications
|
Parameter |
Details |
| Model | 330730-080-00-00 |
|
Extension Cable DC Resistance |
|
|
• Cable Length: 4.0 m |
RcoreRcore: 1.0±0.25 Ω1.0±0.25Ω RjacketRjacket: 0.3±0.1 Ω0.3±0.1Ω |
|
• Cable Length: 8.0 m |
RcoreRcore: 2.0±0.5 Ω2.0±0.5Ω RjacketRjacket: 0.6±0.2 Ω0.6±0.2Ω |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Recommended Gap Setting |
2.5 mm (100 mils) |
|
DSL (Dynamic Signal Range) |
|
|
• Standard Range |
Less than ±0.10 mm (±4 mils) |
|
• Extended Range |
Less than ±0.15 mm (±6 mils) |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:3300 XL 11 mm Extension Cable
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
