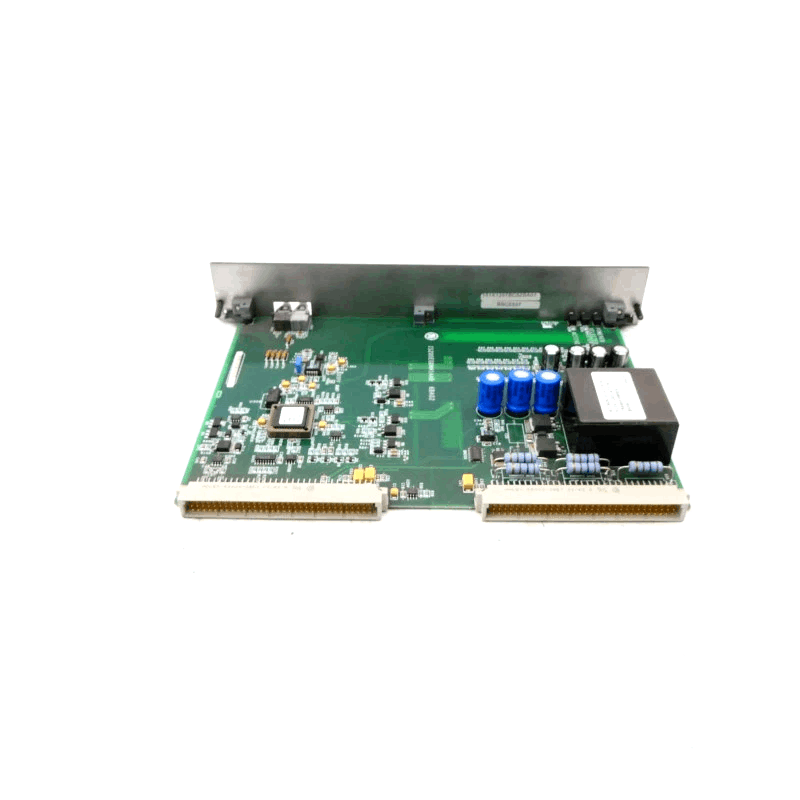

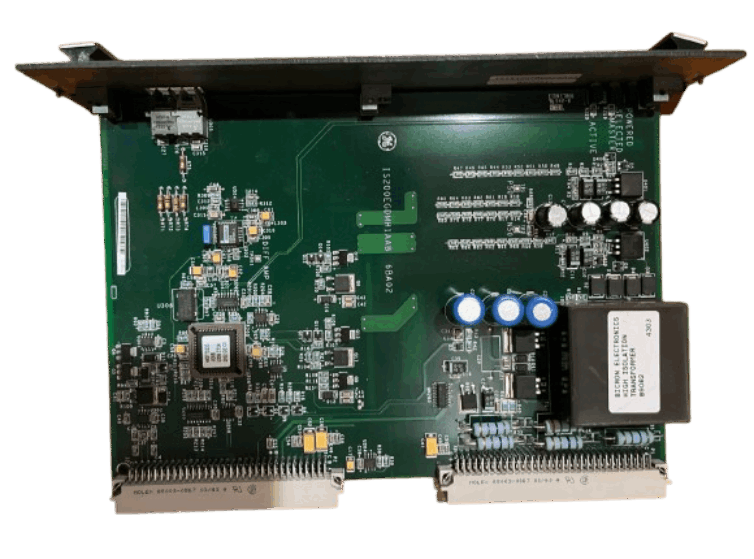

General Electric IS200EGDMH1A Exciter Ground Detector Module
Item Number: IS200EGDMH1A
Brand:GE
Lead Time: In stock
Description:Exciter Ground Detector Module
Payment: T/T
Product Description
GE IS200EGDMH1A is an excitation grounding detection module designed for the EX2100 excitation control system. The IS200EGDMH1A module adopts a dual-slot 6U high board structure and is installed in the excitation power backplane rack. It accurately measures the resistance value of the generator excitation circuit to ground to achieve real-time monitoring and protection of AC/DC side insulation faults.
Function & Features
- Excitation signal generation: IS200EGDMH1A activates the main module to generate ±50V/10Hz square wave and transmits it to the EXAM detection resistor through a shielded cable.
- Three-level electrical isolation: optocoupler isolation, transformer isolation, optical fiber isolation.
- Preventive maintenance: IS200EGDMH1A analyzes insulation degradation trends (records R value change curves) and displays real-time ground impedance spectra through HMI.
Specifications
|
Parameter |
Specification |
|
Mounting |
6U height dual-slot EPBP backplane |
|
Connector Type |
1× P2 (96-pin AMP connector) |
|
Weight |
1.2kg ±5% |
|
Fiber Interface |
ST-type, 2× multimode (TX/RX) |
|
Status Contacts |
2× Form-C, 5A/250VAC |
|
Dimensions |
233.35mm (H) × 160mm (D) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:Exciter Ground Detector Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
