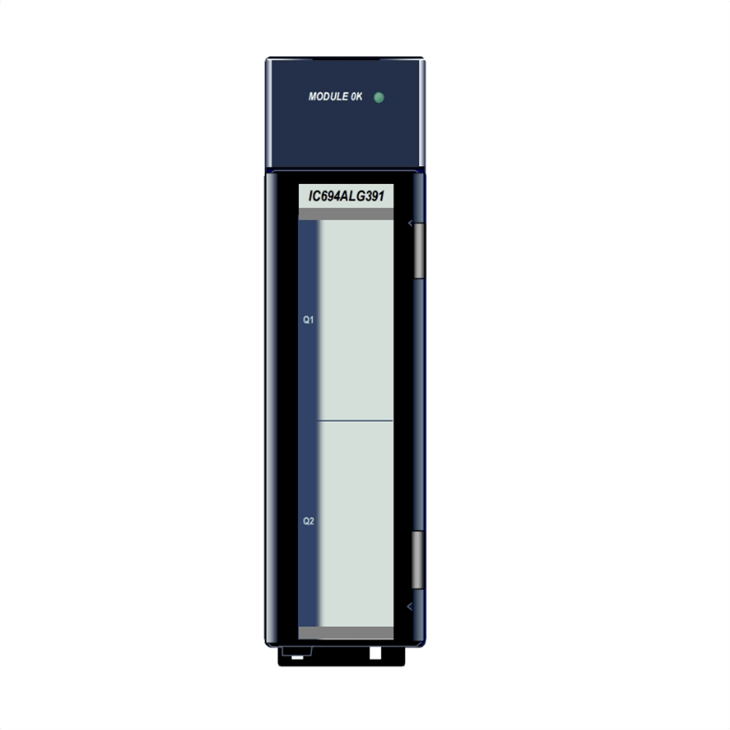

General Electric IC694ALG391 Analog Output Module
Item Number: IC694ALG391
Brand: GE
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
GE IC694ALG391 is a 2-channel analog current output module that converts 12-bit binary (digital) data into analog output signals for driving field devices. The IC694ALG391 features an output hold or default value switch function and can also be used as a less accurate voltage source (current/voltage output mode is selected via a jumper or resistor on the terminals).
Function & Features
- Output Update and State Control: All channels of the GE IC694ALG391 are updated during each scan. When the CPU enters stop mode or reset, the outputs can be set to a default state (0/4 mA) or hold the last state via terminal block jumpers.
- Power Supply: When the IC694ALG391 is installed in the RX3i Universal Backplane, it can be connected via the TB1 connector on the left side of the backplane or the module terminal block.
- CPU Shutdown Processing: Outputs automatically return to zero (0 mA) or a preset value (4 mA), allowing the GE IC694ALG391 to take over the module load. To maintain the "hold last state" function during a backplane power outage, an alternative power supply is recommended.
Specifications
|
Parameter |
Details |
|
Part Number |
IC694ALG391 |
|
Output Current Range |
4 to 20 mA and 0 to 20 mA |
|
Output Voltage Range |
1 to 5 volts and 0 to 5 volts |
|
Calibration |
Factory calibrated to 4 μA per count |
|
External Supply Voltage Range |
20 VDC to 30 VDC. Depends on the current load and the ambient temperature |
|
External Supply Voltage Ripple |
10% |
|
Update Rate |
5 milliseconds (approximate, both channels); Application dependent. |
|
Resolution |
|
|
- 4 to 20mA |
4 μA (1 LSB = 4 μA) |
|
- 0 to 20mA |
5 μA (1 LSB = 5 μA) |
|
- 1 to 5V |
1 mV (1 LSB = 1 mV) |
|
- 0 to 5V |
1.25 mV (1 LSB = 1.25 mV) |
|
Absolute Accuracy (*) |
|
|
- 4 to 20mA at 25°C (77°F) |
+/-8 μA |
|
- 0 to 20mA at 25°C (77°F) |
+/-10 μA |
|
- 1 to 5V at 25°C (77°F) |
+/-50 mV |
|
- 0 to 5V at 25°C (77°F) |
+/-50 mV |
|
Maximum Compliance Voltage |
25 VDC |
|
User Load (current mode) |
0 to 850 Ohms |
|
Output Load Capacitance (current mode) |
2000 pF |
|
Output Load Inductance (current mode) |
1 H |
|
Maximum Output Loading (voltage mode) |
5 mA (2 K Ohms minimum resistance); 2000 pF maximum capacitance |
|
Isolation, Field to Backplane (optical) and to frame ground |
250 VAC continuous; 1500 VAC for 1 minute |
|
Internal Power Consumption |
30 mA from +5 VDC supply; 215 mA from Isolated +24 VDC supply |
Note:
* In the presence of severe RF interference (IEC 801–3, 10 V/m), accuracy may be
degraded to ±80 µA (4 to 20 mA range), ±100µA (0 to 20 mA range).
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Loading comments...
General Electric IC694ALG391 Analog Output Module
Item Number: IC694ALG391
Brand: GE
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
GE IC694ALG391 is a 2-channel analog current output module that converts 12-bit binary (digital) data into analog output signals for driving field devices. The IC694ALG391 features an output hold or default value switch function and can also be used as a less accurate voltage source (current/voltage output mode is selected via a jumper or resistor on the terminals).
Function & Features
- Output Update and State Control: All channels of the GE IC694ALG391 are updated during each scan. When the CPU enters stop mode or reset, the outputs can be set to a default state (0/4 mA) or hold the last state via terminal block jumpers.
- Power Supply: When the IC694ALG391 is installed in the RX3i Universal Backplane, it can be connected via the TB1 connector on the left side of the backplane or the module terminal block.
- CPU Shutdown Processing: Outputs automatically return to zero (0 mA) or a preset value (4 mA), allowing the GE IC694ALG391 to take over the module load. To maintain the "hold last state" function during a backplane power outage, an alternative power supply is recommended.
Specifications
|
Parameter |
Details |
|
Part Number |
IC694ALG391 |
|
Output Current Range |
4 to 20 mA and 0 to 20 mA |
|
Output Voltage Range |
1 to 5 volts and 0 to 5 volts |
|
Calibration |
Factory calibrated to 4 μA per count |
|
External Supply Voltage Range |
20 VDC to 30 VDC. Depends on the current load and the ambient temperature |
|
External Supply Voltage Ripple |
10% |
|
Update Rate |
5 milliseconds (approximate, both channels); Application dependent. |
|
Resolution |
|
|
- 4 to 20mA |
4 μA (1 LSB = 4 μA) |
|
- 0 to 20mA |
5 μA (1 LSB = 5 μA) |
|
- 1 to 5V |
1 mV (1 LSB = 1 mV) |
|
- 0 to 5V |
1.25 mV (1 LSB = 1.25 mV) |
|
Absolute Accuracy (*) |
|
|
- 4 to 20mA at 25°C (77°F) |
+/-8 μA |
|
- 0 to 20mA at 25°C (77°F) |
+/-10 μA |
|
- 1 to 5V at 25°C (77°F) |
+/-50 mV |
|
- 0 to 5V at 25°C (77°F) |
+/-50 mV |
|
Maximum Compliance Voltage |
25 VDC |
|
User Load (current mode) |
0 to 850 Ohms |
|
Output Load Capacitance (current mode) |
2000 pF |
|
Output Load Inductance (current mode) |
1 H |
|
Maximum Output Loading (voltage mode) |
5 mA (2 K Ohms minimum resistance); 2000 pF maximum capacitance |
|
Isolation, Field to Backplane (optical) and to frame ground |
250 VAC continuous; 1500 VAC for 1 minute |
|
Internal Power Consumption |
30 mA from +5 VDC supply; 215 mA from Isolated +24 VDC supply |
Note:
* In the presence of severe RF interference (IEC 801–3, 10 V/m), accuracy may be
degraded to ±80 µA (4 to 20 mA range), ±100µA (0 to 20 mA range).
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
