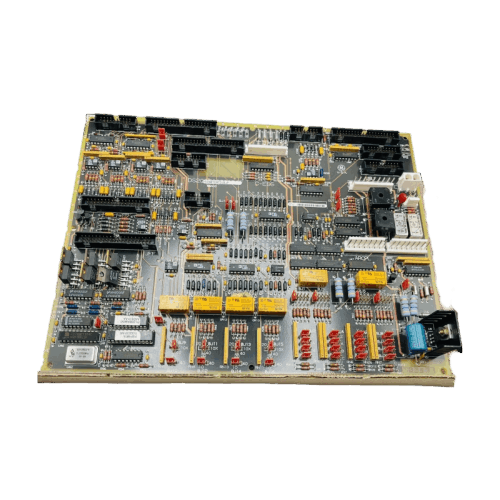

General Electric DS200TCQCG1B DS200TCQCG1BKG Analog I/O Expander Board
Item Number: DS200TCQCG1B DS200TCQCG1BKG
Brand:GE
Lead Time: In stock
Description: Analog I/O Expander Board
Payment: T/T
Product Description
GE DS200TCQCG1B(DS200TCQCG1BKG) is an analog I/O expansion board for control systems of aero-derivative gas turbines such as the LM2500. This board is an active signal conditioner that expands the system's analog and pulse processing capabilities.
It provides scaling, conditioning, and conversion for raw signals transmitted from the terminal board, enabling them to be read and used by the main processor board and generating the required stimulus and output signals.
Function & Features
- Analog Input Conditioning: The DS200TCQCG1B (DS200TCQCG1BKG) scales and conditions mA-level signals from megawatt transmitters.
- Pulse Frequency Input Processing: The DS200TCQCG1B (DS200TCQCG1BKG) processes pulse signals from magnetic speed sensors and TTL-type sensors for measuring key parameters such as high-voltage shaft speed and fuel flow.
- Sensor Excitation: The DS200TCQCG1B (DS200TCQCG1BKG) provides AC excitation power for position sensors such as LVDTs/RVDTs (Linear/Rotary Variable Differential Transformers).
Specifications
| Parameter | Description |
|---|---|
| Product Model | DS200TCQCG1B DS200TCQCG1BKG |
| Related models |
DS200TCQCG1BGF DS200TCQCG1BFE DS200TCQCG1BJF |
| Product Series | GE Mark V |
| Signal Type |
Magnetic pickup: Sine wave, voltage varies with speed-TTL type: Square wave |
| Excitation Type | LVDT/RVDT primary coil excitation |
| Length | 298.26mm |
| Width | 99.03mm |
| Weight | 508 g |
Signal Path: PTBA Termination Board -> TCQE Board -> (JJ Connector) -> TCQC Board -> (JE Connector) -> TCQA Board -> (3PL Connector) -> STCA Main Processor.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
