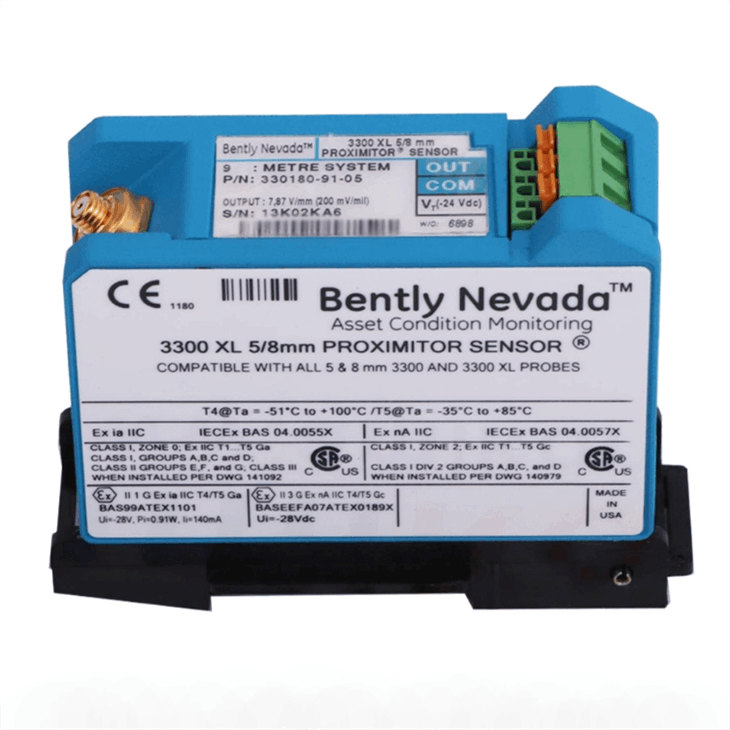

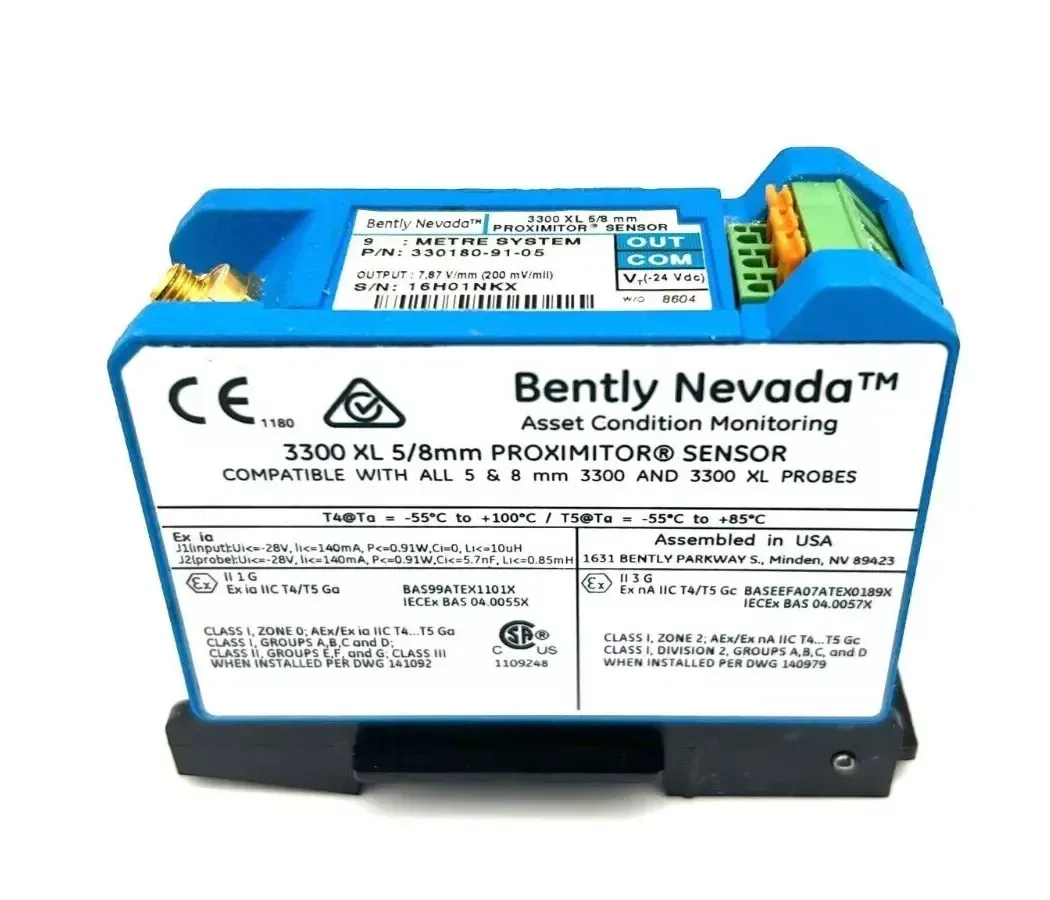

Bently Nevada 330180-91-05 3300 XL Proximitor Sensor
Item Number:330180-91-05
Brand:Bently Nevada
Price:$500
Lead Time: In stock
Description:3300 XL Proximitor Sensor
Payment: T/T
Product Description
330180-91-05 system is designed to measure both static (position) and dynamic (vibration) readings and outputs a voltage directly proportional to the distance between the probe tip and the observed conductive surface.
The 330180-91-05 is a 3300 XL Proximitor Sensor developed by Bently Nevada. It is part of the 3300 XL 8mm Proximity Transducer System, which includes:
One 3300 XL 8mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
Function & Features
Magnetic field generation and eddy current induction: When the 3300 XL 8mm probe is close to a conductive surface, the 330180-91-0 sensor generates a high-frequency alternating magnetic field, which induces eddy currents on the conductive surface, which in turn generate an opposite alternating magnetic field.
For fluid film bearing machines: 330180-91-05 can achieve vibration and position measurement to support the operation of the equipment.
Critical phase reference and speed measurement: During the operation of industrial equipment, 330180-91-05 can accurately obtain critical phase reference information and speed data to ensure the operation of the equipment.
Specifications
|
Parameter |
Details |
|
Electrical - Proximitor Sensor Input |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Electrical - Power (with nonincendive circuit) |
Requires -17.5 Vdc to -26 Vdc when installed with nonincendive circuit connected per installation drawing 140979 at 12 mA maximum consumption |
|
Electrical - Power (with barriers) |
-23 Vdc to -26 Vdc |
|
Electrical - Note on Power |
Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range |
|
Electrical - Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Electrical - Output Resistance |
50 Ω |
|
Weight |
246 g (8.67 oz) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
FAQ
Q: What is the brand?
A:330180-91-05
Q: What is the type?
A:Proximitor Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
