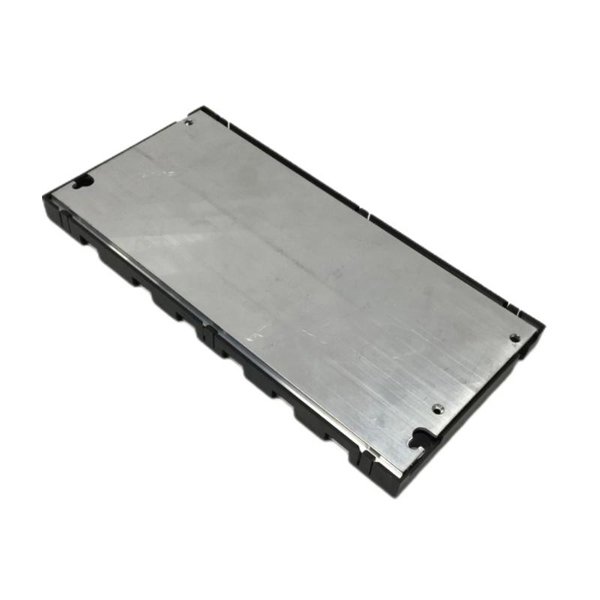

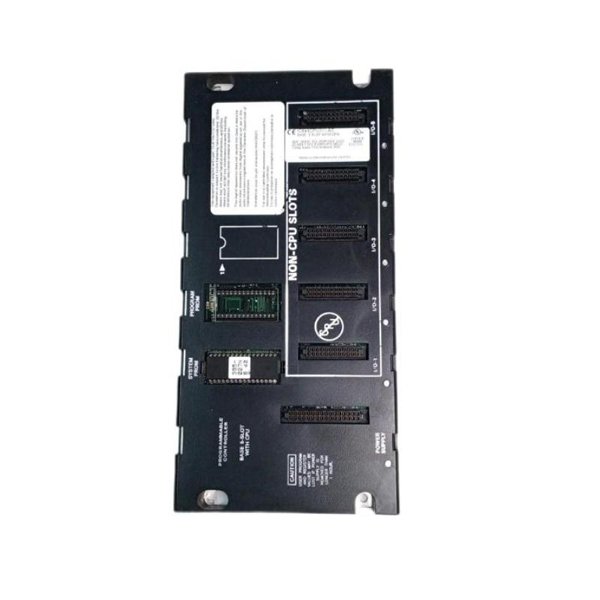

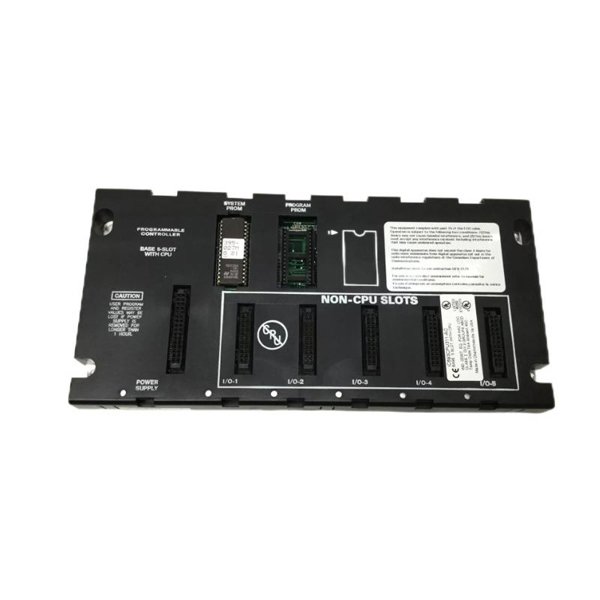

General Electric IC693CPU311 Series 90-30 5-slot Baseplate With CPU
Manufacturer:GE
Product Number:IC693CPU311
Product Type:5-slot Baseplate With CPU
Origin:USA
Dimensions:156 x 102 x 30mm
Weight:0.907kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC693CPU311 is an integrated programmable logic controller (PLC) unit from the GE Series 90-30 family. It features a 5-slot baseplate with a built-in CPU, making it ideal for compact industrial automation systems. With 6KB of user program memory and support for various I/O configurations, it provides reliable control for discrete and analog processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693CPU311 |
| Product Type | 5-slot baseplate with embedded CPU |
| Processor Type | Intel 80188 |
| Processor Speed | 10 MHz |
| User Program Memory | 6 KB |
| Typical Scan Rate | 18 ms per 1K of boolean logic |
| Discrete Input/Output Points | 160 (max, combined) |
| Internal Coils (%M) | 1024 bits |
| Temporary Coils (%T) | 256 bits |
| Global Memory (%G) | 1280 bits |
| Analog Inputs (%AI) | 64 words |
| Analog Outputs (%AQ) | 32 words |
| Register Memory (%R) | 512 words |
| Built-in Serial Ports | 1 (SNP, SNP-X protocols) |
| Communications Support | Ethernet, FIP, Profibus, GBC, GCM, GCM+ |
| Power Consumption | 410 mA from +5V DC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Memory Type | RAM with optional EPROM/EEPROM |
| Dimensions | 156 x 102 x 30 mm |
| Weight | 0.907 kg |
Applications
-
Factory automation systems
-
Packaging and labeling lines
-
Water treatment control
-
Material handling systems
-
Small-scale process control systems
Advantages
-
Compact design with built-in CPU
-
Suitable for space-constrained panels
-
Supports both discrete and analog I/O
-
Expandable with GE Series 90-30 modules
-
Compatible with various industrial network protocols
FAQs
Q1: What is the maximum user memory of the IC693CPU311?
A1: It supports up to 6 KB of user program memory.
Q2: Does this unit have Ethernet capability?
A2: Ethernet is supported via an optional communication module.
Q3: Can I expand the number of I/O points?
A3: Yes, you can use additional I/O modules within the 5-slot limit.
Q4: What protocol does the serial port support?
A4: It supports SNP and SNP-X slave protocols.
Q5: Is the CPU removable from the baseplate?
A5: No, the CPU is embedded in the 5-slot baseplate.
Q6: Does it support battery-backed real-time clock?
A6: No, this model does not include a battery-backed clock.
Q7: Can it be programmed using Proficy Machine Edition?
A7: Yes, GE’s Proficy Machine Edition is compatible.
Q8: What type of memory does it use?
A8: RAM and optionally EPROM or EEPROM.
Q9: Is this model compatible with PCM or CCM?
A9: No, it does not support PCM/CCM modules.
Q10: What is the power requirement?
A10: It requires 410 mA from a +5 VDC supply.
