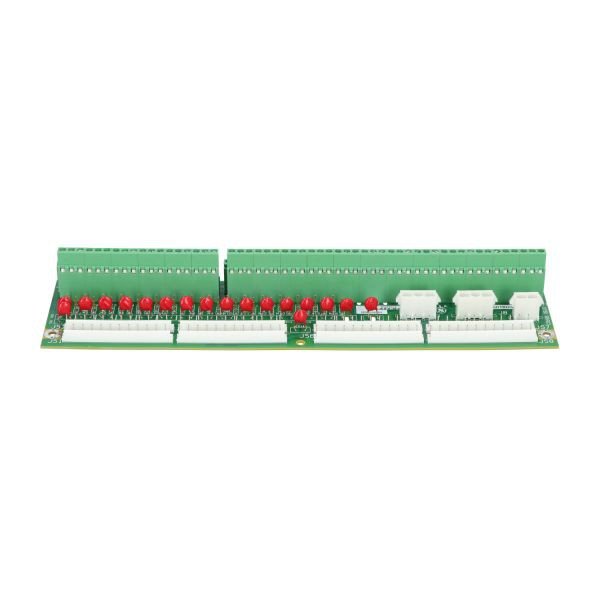

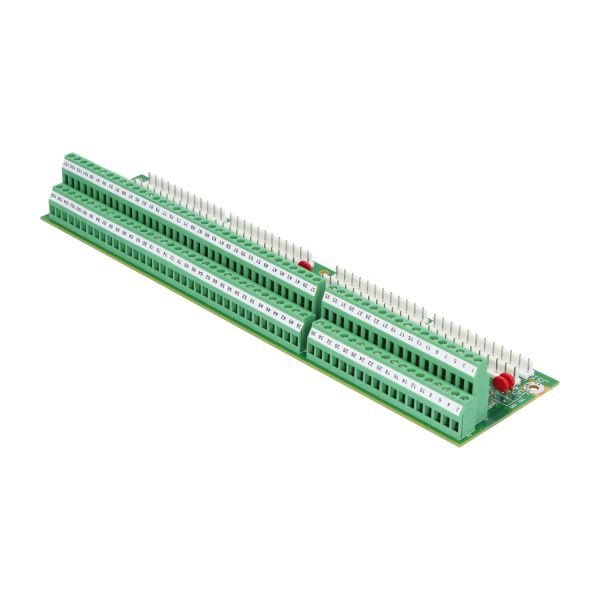

General Electric DS200DTBDG1A DS200DTBDG1ABB Contact Output Expansion Termination Module
Item Number:DS200DTBDG1A DS200DTBDG1ABB
Brand:GE
Lead Time: In stock
Description:Contact Output Expansion Termination Module
Payment: T/T
Product Description
GE DS200DTBDG1A DS200DTBDG1ABB is a contact output extension terminal module developed by General Electric (GE), mainly used for signal expansion and terminal connection in industrial systems. It is part of the Mark V series control system. The contact output extension terminal module (DTBD) can be installed in the Q11, Q21 and Q51 positions. In the 5th position of Q11, Q21 and Q51 of the TCRA board, the DTBD is connected to 30 relays.
Fuctions & Features
Relay signal reading: DS200DTBDG1A reads the relay signal from the fifth position of the TCRA board through the JS1 to JS8 connectors, which act as signal receiving interfaces.
J8 power supply: The J8 connector is powered by the TCPD board in the PD core to drive the connected solenoid.
Solenoid enable control: P1/M1 to P16/M16 are used to perform solenoid enable control on contact outputs #31 to #46 respectively. By setting these pins, it can be determined whether the corresponding solenoid can be activated.
Specification
|
Category |
Description |
|
Module Model |
DS200DTBDG1A / DS200DTBDG1ABB |
|
Module Type |
Contact Output Expansion Termination Module |
|
Series |
GE Mark V |
|
Application Field |
Turbine Control Systems |
|
Installation Location |
Position 5 on Q11, Q21, and Q51 of the TCRA board |
|
Relay Connection |
Connected to 30 relays on the TCRA board |
