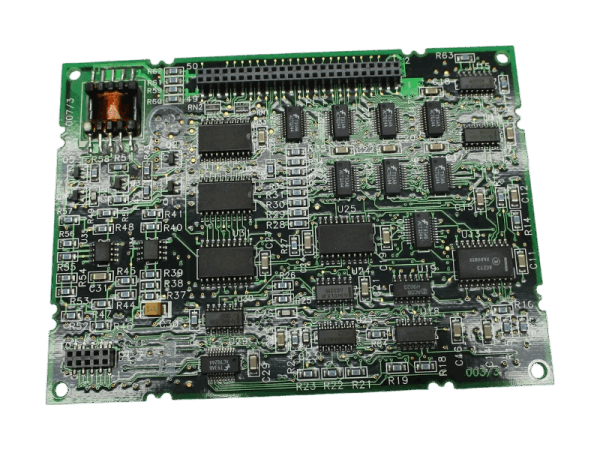

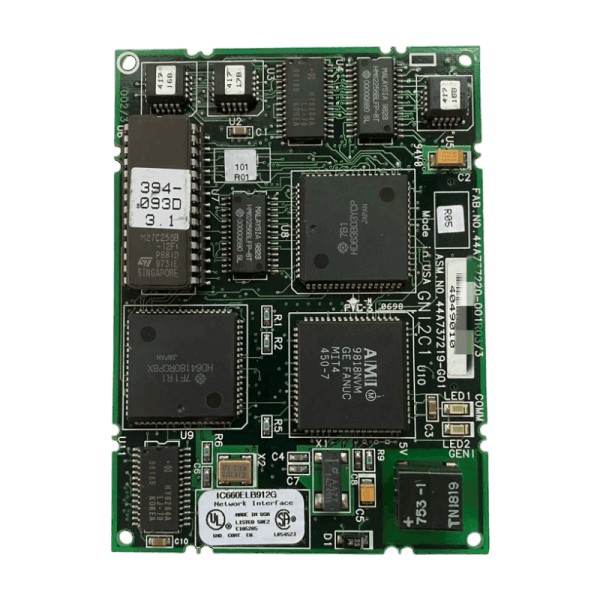

GE Fanuc IC660ELB912 Micro Network Interface Board
Item Number: IC660ELB912
Brand:GE Fanuc
Lead Time: In stock
Description: Micro Network Interface Board
Payment: T/T
Product Description
GE Fanuc IC660ELB912 Micro Network Interface Board is a daughterboard for embedded systems, serving as the interface between the host system and the Genius I/O bus.
The IC660ELB912 board is not a standalone plug-in card; rather, it is a communication module that must be installed on a user-defined motherboard. This motherboard is then controlled by the host CPU, enabling the entire system to connect to the Genius I/O network.
Function & Features
- Daughterboard: The IC660ELB912 is a daughterboard that must be plugged into a motherboard designed for it. The motherboard then provides a standard interface (such as ISA or custom bus) to connect to the host computer.
- Shared Memory: The IC660ELB912 communicates with the host computer via a shared RAM. The host CPU reads and writes to this RAM to exchange data with µGENI.
- Multiple Communication Methods: In addition to I/O control, the IC660ELB912 also supports peer-to-peer communication between hosts over the Genius bus, including datagrams, global data, and directed control data messages.
Specifications
|
Item |
Description |
|
Model |
IC660ELB912 |
|
Power Requirements |
5 volts DC +/- 10%, 400 ma (maximum) |
|
Bus Loading |
1 LS TTL load per input line |
|
Bus Drive Capability |
10 LS TTL loads per output line |
|
Motherboard |
4 bytes |
|
Each daughterboard |
16K bytes |
|
Weight |
0.72kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
