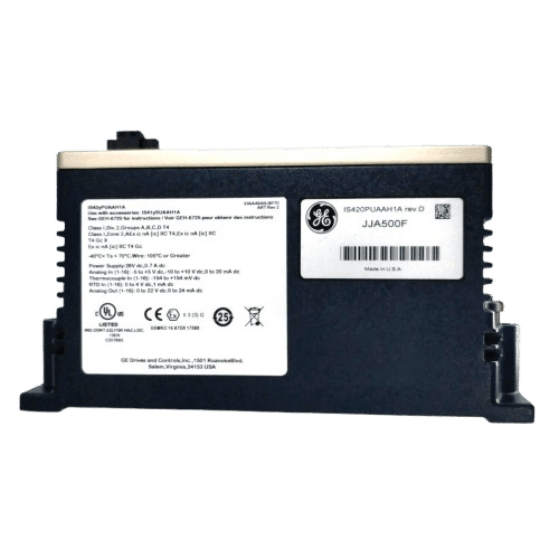

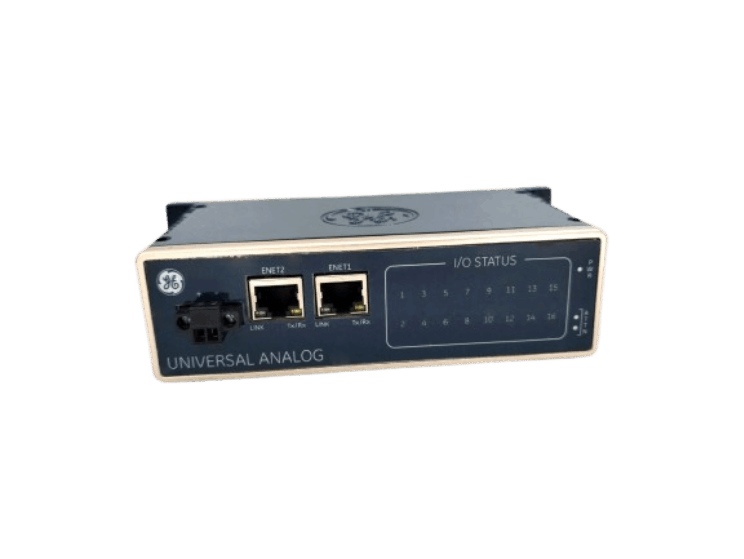

General Electric IS420PUAAH1A Universal I/O Pack
Item Number: IS420PUAAH1A
Brand: GE
Lead Time: In stock
Description: Universal I/O Pack
Payment: T/T
Product Description
The IS420PUAAH1A is a universal I/O package for GE Mark VIe control systems. As a 16-channel universal I/O module, it reduces the space occupied by the control cabinet and supports all signal types. It also supports mixed signal processing such as thermocouples, RTDs, analog and digital quantities. RJ-45 dual Ethernet (IONet) supports network redundancy.
Function & Features
- Channel-level independent wiring: IS420PUAAH1A pack black partition design supports single-channel debugging without powering off the entire board.
- Automatic reconstruction: IS420PUAAH1A automatically restores configuration after replacing the module (ControlST software support required).
- Full signal type support:
- Temperature signal: thermocouple (TC), RTD
- Analog: ±5/10V, 4-20mA (with HART protocol)
- Digital: dry/wet contact input, pulse accumulation
Specifications
|
Category |
Specification Details |
|
Basic Performance |
- Scan Cycle: 5ms (standard) - Measurement Accuracy: ±0.1% FS |
|
Channel Configuration |
16 channels (3 terminals per group), Simplex non-redundant |
|
IONet Ethernet, Frame Rate: 10ms |
|
|
Power Consumption |
Quiescent: 8.1W + Dynamic per channel: • TC/RTD/Digital: 0.02W/channel • 4-20mA Input: 0.04W/channel • Current Output: ≤0.68W/channel (depends on loop impedance) |
