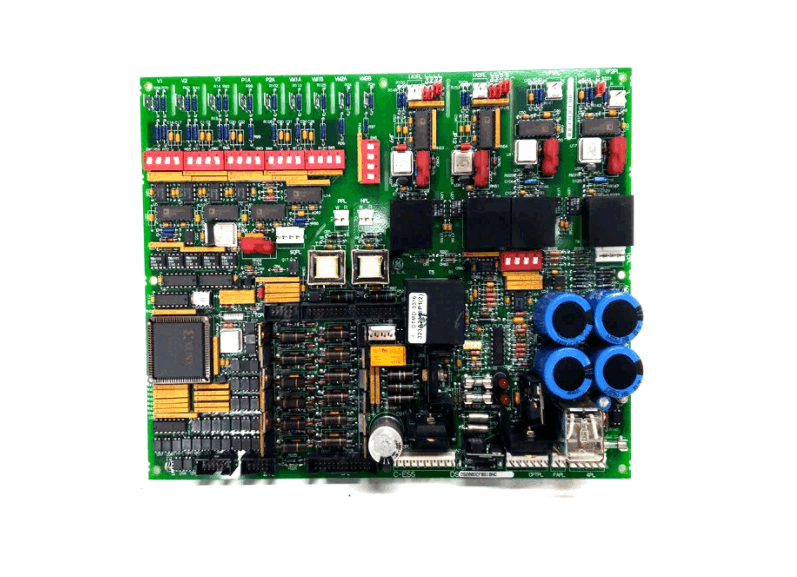

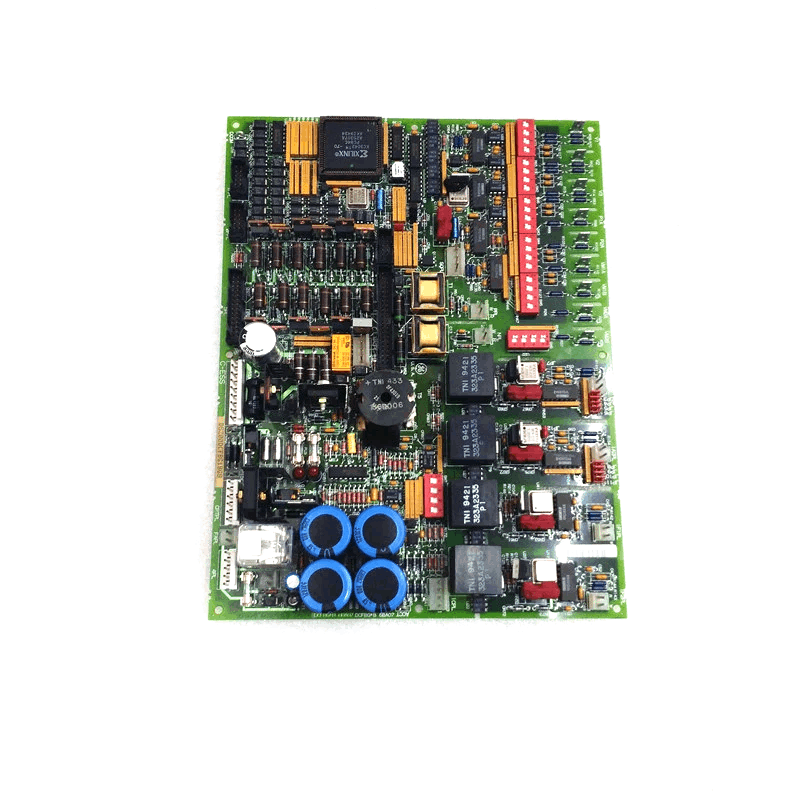

General Electric DS200DCFBG1B DC Power Supply Feedback Board
Item Number:DS200DCFBG1B
Brand: GE
Lead Time: In stock
Description:DC Power Supply Feedback Board
Payment: T/T
Product Description
DS200DCFBG1B is a GE Mark VId DC power feedback board. The board receives 38 VAC and 115 VAC inputs from the control power transformer (CPT) and provides control-level power to the drive and 115 VAC power to the cabinet fan.
Notes
Fuse specifications: When replacing, the same type must be used (such as 2AG 7 A or 0.5 A).
/PSEN signal: If +5 V is abnormal, the drive will reset, and the power supply problem must be checked first.
Function & Features
- +5 V monitoring: DS200DCFBG1B feedbacks status through /PSEN signal (TTL level), and triggers reset of drive control card (SDCC/LDCC) microprocessor if voltage is not regulated.
- 115 VAC output: DS200DCFBG1B supplies power to cabinet cooling fan, protected by FU1 (0.5 A) fuse, indicated by neon lamp LT1 when blown.
- Motor excitation power supply circuit (without SCR module): DS200DCFBG1B drives motor excitation SCR gate pulse generator.
Specifications
|
Parameter |
Details |
|
Model |
DS200DCFBG1B |
|
Input Voltage |
38 VAC and 115 VAC (or 24 VDC) |
|
Input Source |
Control Power Transformer (CPT) |
|
Control Power Output |
+5 VDC (4 A), ±15 VDC, ±24 VDC |
|
Fan Power Output |
115 VAC (protected by FU1 fuse, 0.5 A) |
|
Fuse Protection |
- FU2/FU3: 7 A (protects ±15 V and +5 V outputs) |
|
- FU1: 0.5 A (protects 115 VAC output) |
