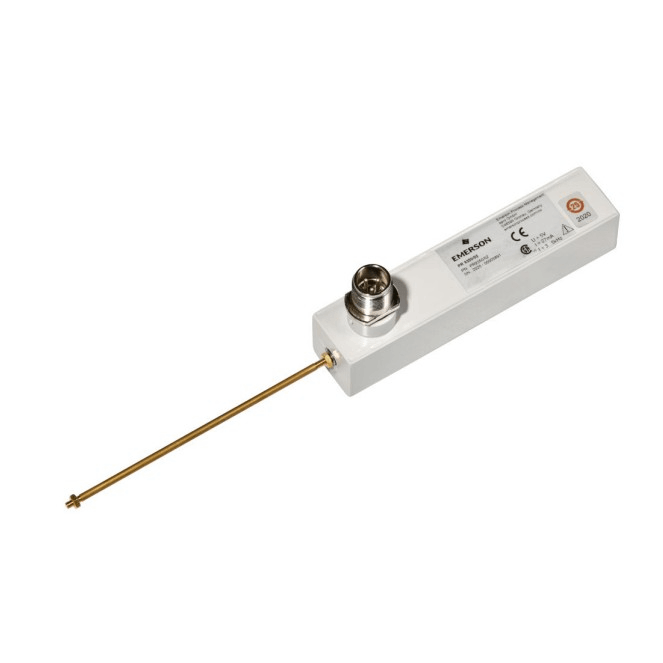

Epro PR9350/02 Inductive Sensor

EPRO PR9350/02 inductive sensor is a surface-contact inductive sensor that measures dynamic radial and axial shaft displacement, position, and eccentricity. When used with a carrier frequency measuring bridge and related accessories, it converts physical quantities (such as tension and compression, gas or liquid pressure, material thickness, and lateral torque) into linear displacement, allowing it to measure corresponding physical quantities.

Note: It is used with the A6500-LC LVDT converter and the A6500-UM universal measurement card.

Function & Features

• The PR9350/02 offers high resolution and minimal hysteresis across its entire measurement range, ensuring negligible control over the measurement target. It also supports dynamic measurements up to 1250Hz.

• The PR9350/02's compensation coil is wound directly on the measurement coil, minimizing temperature drift.

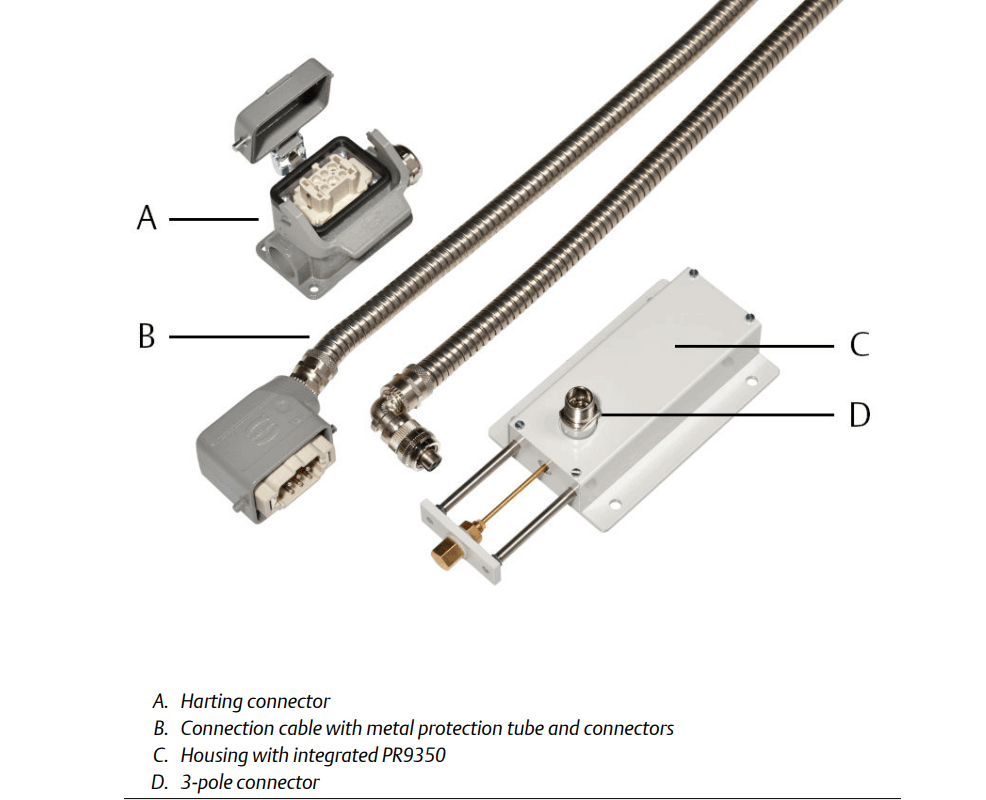

• The PR9350/02's tracking pin (solenoid valve plunger) is lightweight; a 3-pole Cannon socket is located on the top of the housing for electrical connection, and the tracking pin has an M3 threaded rod.

• The PR9350/02 can be modified with additional mechanisms to measure gas/liquid pressure, material thickness, tension/compression, and more.

Specifications

FAQ

Q: What is the brand?

A: EPRO

Q: What is the type?

A:Inductive Sensor

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
