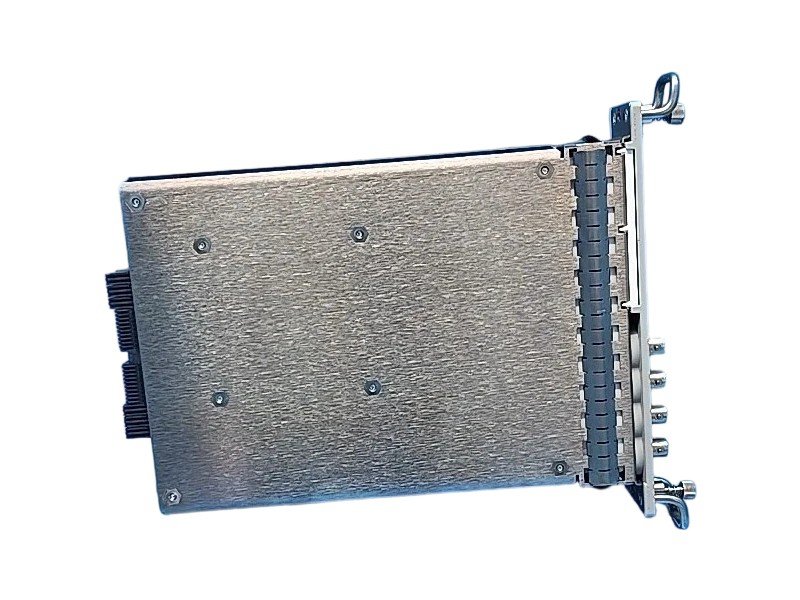

Bently Nevada 3500/42E Vibration Monitor
Item Number: 3500/42E
Brand:Bently Nevada
Lead Time: in stock
Description:Vibration Monitor
Payment: T/T
Product Description
Bently Nevada 3500/42E is a 4-channel Vibration Monitor, part of the 3500 ENCORE series. This monitor collects signals from proximity (eddy-current probes) and seismic (velocity/acceleration sensors) sensors. After signal processing,3500/42E can perform various vibration and position measurements such as radial vibration and thrust position.
The 3500/42E has two installation configuration modes and can trigger alarms by comparing monitoring parameters with alarm setpoints to protect the equipment.
Specification
| Parameter | Details |
|---|---|
| Model Number | 3500/42E |
| Inputs - Signal | Accepts from 1 to 4 proximity, velocity or acceleration transducer signals. |
| Input Impedance | 10 kΩ (Proximitor and Acceleration Inputs). |
| Power Consumption | 6.8W Typical |
| Output Impedance | 499 Ω |
| High-Pass Filter | 2-pole (40 dB per decade, 12 dB per octave). |
| Low-Pass Filter | 4-pole (80 dB per decade, 24 dB per octave). |
| Dimensions (H x W x D) | 208.28 mm*48.26 mm*127 mm |
| Weight | 0.68 kg |
Function & Features
- Channel Pairing Programming: The 4 channels of the 3500/42E operate in pairs (Channel 1 & 2, Channel 3 & 4). Each pair of channels can perform one monitoring function, so the monitor can perform up to two different functions simultaneously.
- 3500 ENCORE System Upgrade Mode: This mode is used to upgrade the existing 3300 monitoring system to the 3500 ENCORE platform. In this mode, the 3500/42E can only use 2 channels (with limited functionality) and continues to use the original 3300 series I/O modules and relays.
- Dual Alarm Protection: The 3500/42E allows for the configuration of warning alarm points for each valid static value (processed parameters such as gap voltage, full-scale amplitude, etc.), Any two static values can be selected to configure higher-level danger alarm points.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
