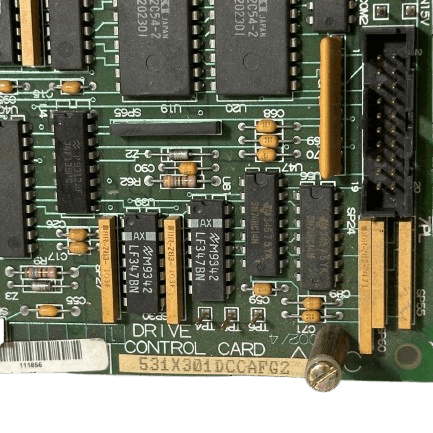

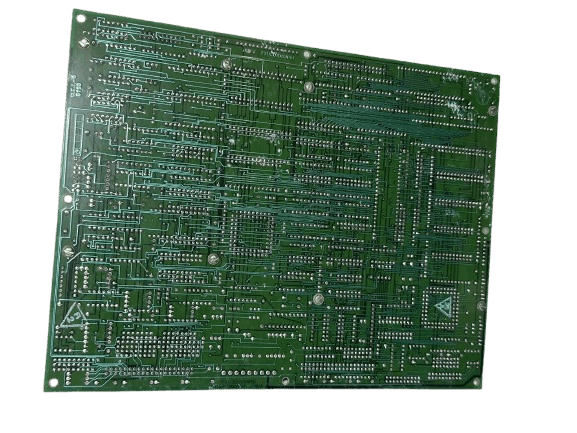

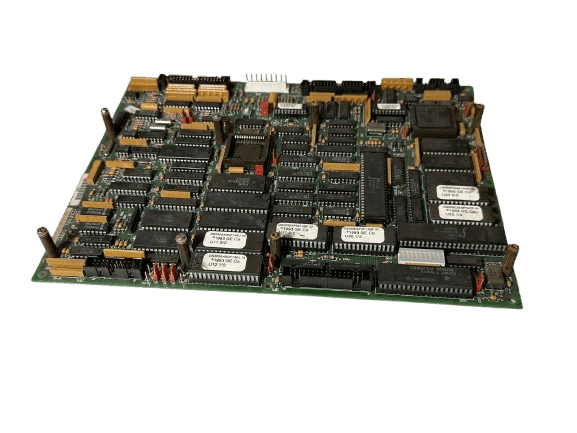

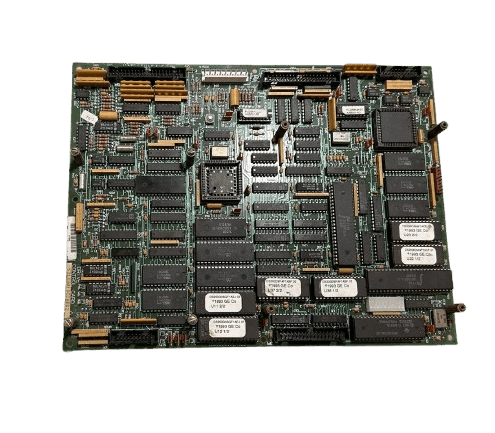

General Electric 531X301DCCAFG2 Drive Control Board
Item Number: 531X301DCCAFG2
Brand: GE
Lead Time: In stock
Description:Drive Control Board
Payment: T/T
Product Description
531X301DCCAFG2 is a drive control board manufactured and designed by General Electric, belonging to the Mark V series, used for drive control systems. The control processor board is equipped with an Intel 80186 microprocessor and supports resetting the processor via an onboard button: after the updated software is downloaded to the EEPROM (Electrically Erasable Programmable Read-Only Memory), a small push button switch on the board can be used to reset the processor.
It can be applied to industrial control driven by GE Mark V systems, such as gas/steam turbine monitoring, generator circuit breaker management, etc.
Fuctions & Features
Why choose 531X301DCCAFG2
Power management
Multiple power inputs support the following configurations:
1.DC power supply: 125V DC
2.AC power supply: 1~2 120/240V AC
3.Power distribution design: Power each core power board through a 125V DC common distribution bus.
Log and event recording
Alarm log and event log:
1.Printer records: such as turbine start and stop, circuit breaker operation, etc., with a time tag resolution of 62ms, supporting user-defined events and dynamic modification.
2.Contact input records: independent time tag accuracy of 1ms, can disable recording or global switch for individual inputs.
Specification
|
Parameter |
Value |
| Series | Mark V |
|
DC Power Supply |
125V DC |
|
AC Power Supply |
1~2 channels, 120/240V AC |
|
Length |
38 cm |
|
Width |
36 cm |
|
Height |
32 mm |
|
Weight |
0.57 kg |
