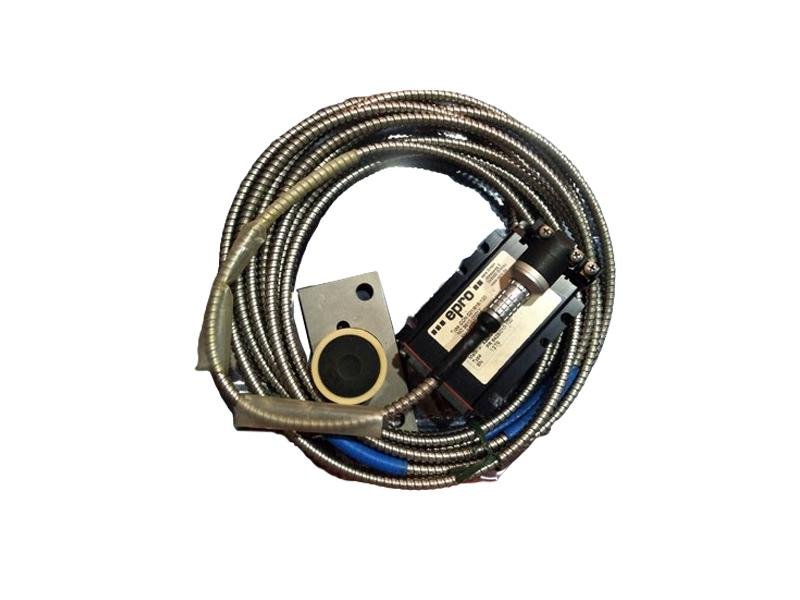

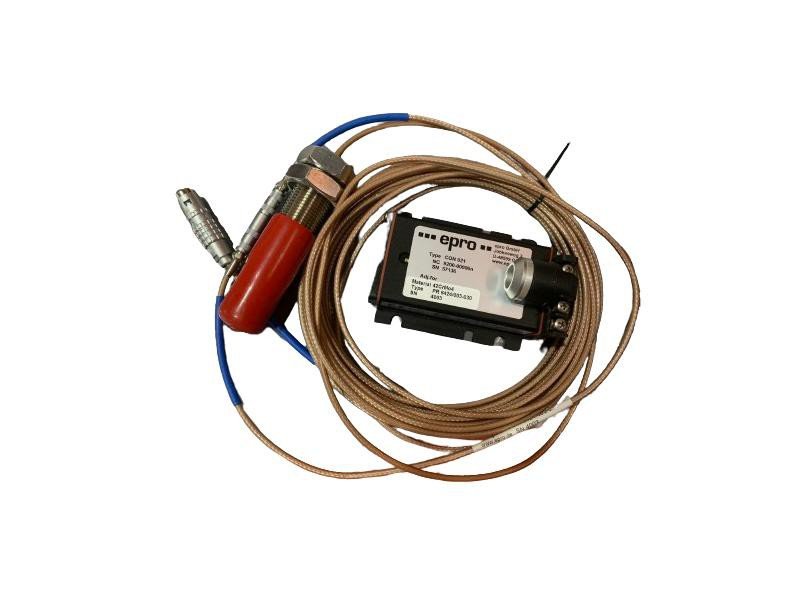

Epro PR6426/010-140+CON011 32mm Eddy Current Sensor+Eddy Current Signal Converter
Item Number:PR6426/010-140+CON011
Brand:EPRO
Lead Time: In stock
Description:Current Sensor+Eddy Current Signal Converter
Payment: T/T
Product Description
EPRO PR6426/010-140+CON011 is a 32mm eddy current sensor designed for critical turbomachinery applications such as steam, gas and water turbines, compressors, pumps and fans. It is used to measure radial and axial displacement of the shaft, including parameters such as position, eccentricity and motion.
It is usually used in conjunction with eddy current signal converters such as CON011 to convert and process the signals detected by the sensor for subsequent analysis and control.
Fuctions & Features
PR6426/010-140 has excellent dynamic performance indicators, with a sensitivity of 2 V/mm (50.8 mV/mil) and a maximum error of ≤ ±1.5%, and a long-term drift of less than 0.3%.
PR6426/010-140 is suitable for targets made of ferromagnetic steel (42 Cr Mo 4 standard), and can measure objects with a maximum surface speed of 2,500 m/s.
PR6426/010-140 sensor sleeve is made of stainless steel, cable is made of PTFE, and weighs (including 1M cable, without armor) about 800 grams (28.22 ounces), which is relatively light.
PR6426/010-140 can be used with signal converters such as CON011 to convert the eddy current signals collected by the sensor into standard signals suitable for processing by the control system.
Specification
|
Items |
Details |
|
Dynamic Performance |
- Sensitivity: 2 V/mm (50.8 mV/mil) ≤ ±1.5% max - Air Gap (Center): Approx. 5.5 mm (0.22") Nominal - Long Term Drift: < 0.3% - Range Static: ±4.0 mm (0.157") |
|
Target |
- Target/Surface Material: Ferromagnetic Steel (42 Cr Mo 4 Standard) - Maximum Surface Speed: 2,500 m/s (98,425 ips) - Shaft Diameter: ≥200 mm (7.87") |
|
Environmental |
- Operating Temperature Range: -35 to 180°C (-31 to 356°F) - Temperature Excursions: <4 Hours 200°C (392°F) - Maximum Cable Temperature: 200°C (392°F) - Temperature Error (at +23 to 100°C): -0.3%/100°K Zero Point, <0.15%/10°K Sensitivity - Pressure Resistance To Sensor Head: 6,500 hpa (94 psi) - Shock and Vibration: 5g (49.05 m/s²) @ 60Hz @ 25°C (77°F) |
|
Physical |
- Material Sleeve: Stainless Steel; Cable: PTFE - Weight (Sensor & 1M Cable, no Armor): ~800 grams (28.22 oz) |
