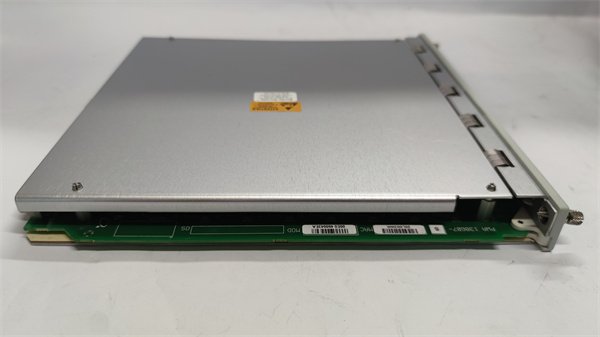

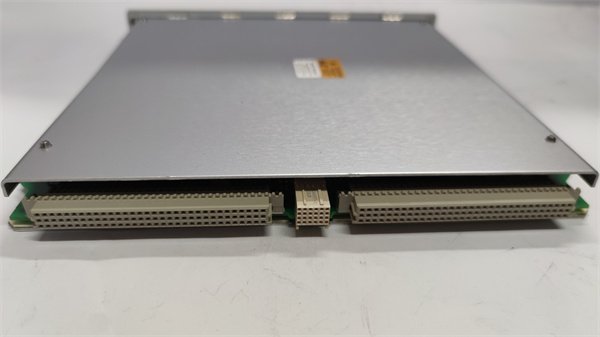

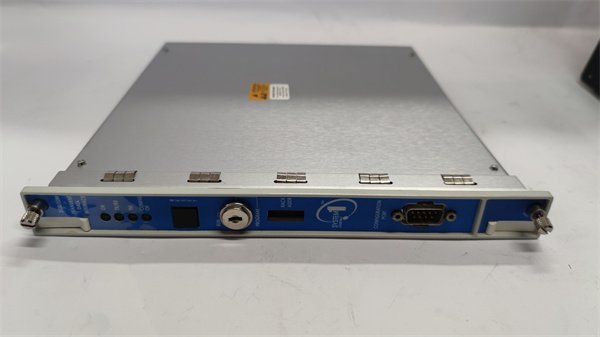

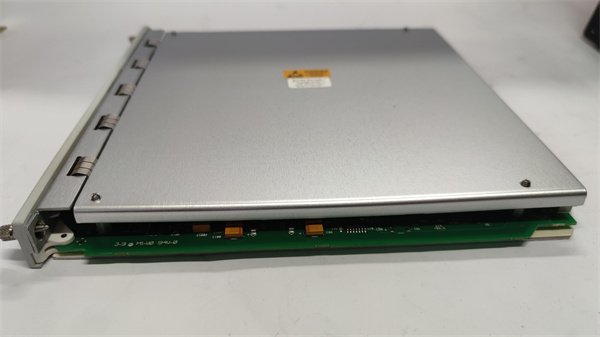

Bently Nevada 3500/22-01-01-00 Transient Data Interface (TDI) module
Manufacturer:Bently Nevada
Product Number:BENTLY 3500/22-01-01-00
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently 3500/22-01-01-00 is a Transient Data Interface (TDI) module designed to integrate the Bently 3500 machinery monitoring system with advanced software solutions like System 1 for asset management. It combines the functions of the 3500/20 Rack Interface Module (RIM) and a TDXnet communication processor, enabling real-time data transmission and analysis of both steady-state and transient vibration waveforms from rotating equipment. This module is critical for predictive maintenance in industries such as power generation, petrochemicals, and manufacturing, where continuous machinery health monitoring is essential.
Product Parameters
| Parameter | Specification |
|---|---|
| Input Signal | -10 VDC to +10 VDC (compatible with M-series monitors) |
| Power Supply | -24 VDC (rack-powered) |
| Power Consumption | 7.7 W (typical) / 10.5 W (with expansion) |
| Communication | 10/100Base-TX Ethernet, fiber optic (optional) |
| Data Recording | Static data (standard); dynamic transient data (with optional card) |
| Physical Dimensions | 9.50 × 4.50 × 1.00 inches, 0.85 lb |
| Environmental Rating | IP67 (optional for harsh conditions) |
Advantages and Features
- Dual-Function Integration: Combines RIM and TDXnet capabilities, reducing rack space and complexity.
- High-Speed Data Acquisition: Captures transient waveforms during startups/shutdowns for early fault detection.
- Redundancy Support: Works seamlessly in Triple Modular Redundancy (TMR) systems for enhanced reliability.
- Remote Configuration: Adjust parameters via 3500 System Configuration Software for flexible maintenance.
Application Areas and Cases
- Power Generation: Monitors gas/steam turbines to detect rotor imbalance or bearing wear.
- Petrochemical: Ensures compressor reliability by analyzing cavitation and mechanical stress.
- Manufacturing: Prevents downtime in motors and pumps through continuous vibration analysis.
- Case Study: A U.S. refinery used the Bently 3500/22-01-01-00 to identify early-stage compressor blade cracks, avoiding $2M in repair costs.
Competitor Comparison
Compared to similar modules, the 3500/22-01-01-00 offers:
- Higher transient data resolution (up to 102.4 kHz sampling).
- Built-in redundancy without external hardware.
- Seamless integration with Bently’s System 1 software ecosystem.
Selection Recommendations
- Compatibility: Ensure compatibility with existing 3500 racks, M-series monitors, and System 1 versions.
- Environment: Choose IP67-rated models for extreme temperatures or corrosive environments.
- Expansion Needs: Opt for the optional channel enabling card if dynamic data analysis is required.
Precautions
- ESD Protection: Use anti-static packaging during handling.
- Firmware Updates: Regularly update firmware for security and feature enhancements.
- Installation: Always power down the rack before module replacement to avoid damage.
