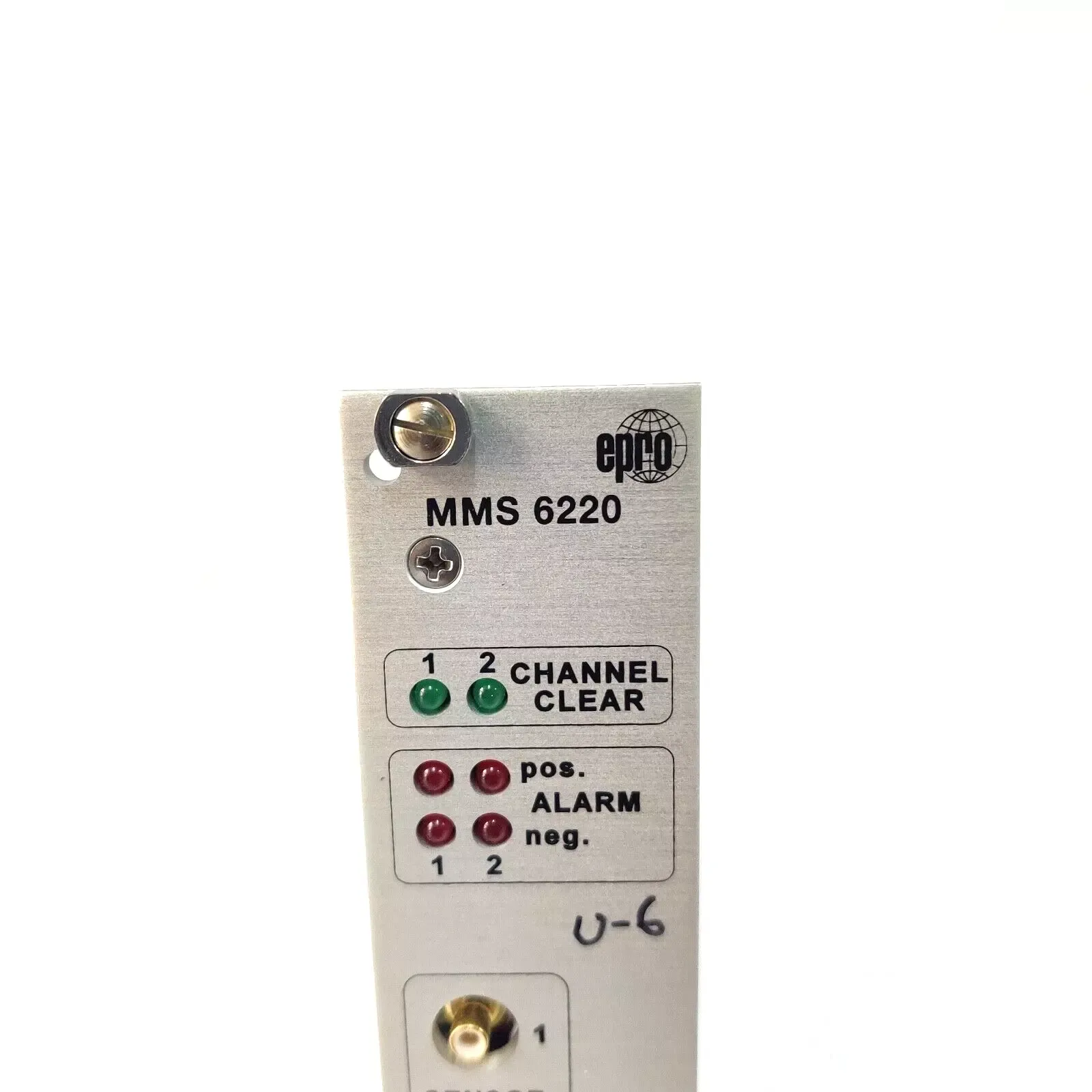

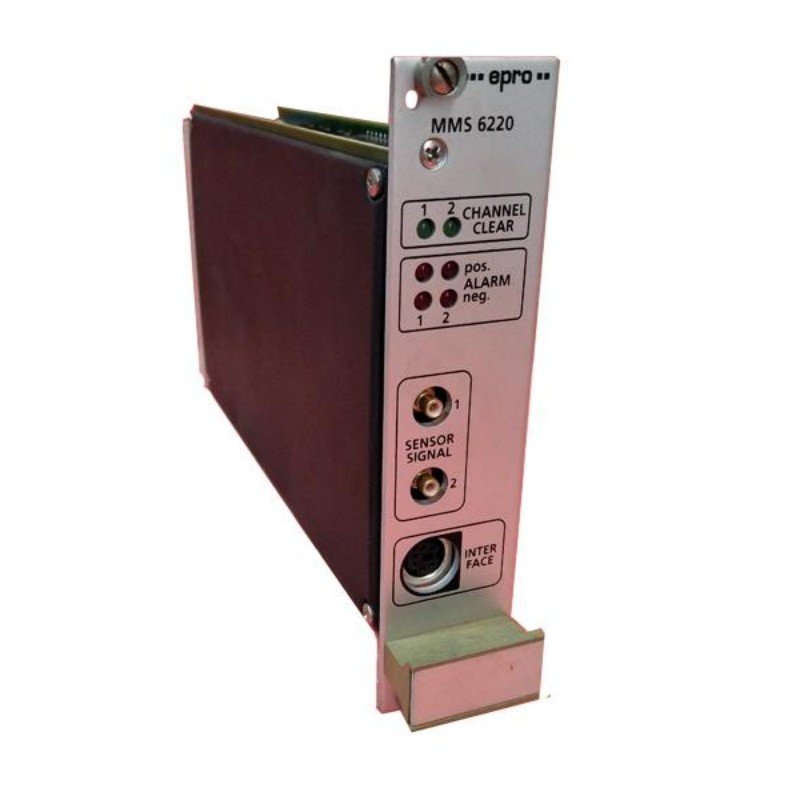

Epro MMS6220 Dual Channel Eccentricity Monitor
Item Number:MMS6220
Brand:EPRO
Lead Time: In stock
Description:Dual Channel Eccentricity Monitor
Payment: T/T
Product Description
EPRO MMS6220 is a dual-channel eccentricity monitor, part of the EPRO MMS 6000 Machine Condition Monitoring System. It processes relative shaft radial vibration (eccentricity) signals from eddy current sensors and calculates peak-to-peak values, minimum/maximum values, and other parameters.
Users can configure the MMS6220's parameters and operating modes via a laptop connected to the RS-232 interface. The monitor also displays measured characteristic values, order analysis results, and data from the last speed increase or decrease.
Function & Features
- Dual-Channel Detection: The EPRO MMS6220 can simultaneously process signals from two eddy current sensors (EPRO PR 642X series is recommended).
- Alarm Latching: The EPRO MMS6220 can temporarily disable alarms via the monitor lock function, an error message, or an external signal.
- Start/Stop Data Logging: The EPRO MMS6220 can record and store characteristic data from the last startup or shutdown process.
- Order Analysis: The EPRO MMS6220 supports order analysis of vibration signals, identifying speed-related vibration components.
- Safety Mechanism: After downloading the parameter configuration, the alarm function is automatically disabled for approximately 120 seconds (60-second delay + 60-second alarm re-enablement).
Specifications
|
Parameter |
Details |
|
Model |
MMS 6220 |
|
Input impedance |
≥100 kOhm |
|
Input voltage range |
-1...23 V DC |
|
Signal frequency range |
0.017...70 Hz (1.02...4200 rpm) |
|
Signal voltage range |
Minimum range: 0...400 mVpeak; Maximum range: 0...8000 mVpeak |
|
Nominal voltage |
-26.7 V DC |
|
Maximum supply current |
typ. 20 mA; max. 35 mA |
|
Adjustable range |
1,000 to 4,999; 24 V Logic |
|
Input resistance |
≥ 30 kOhm |
|

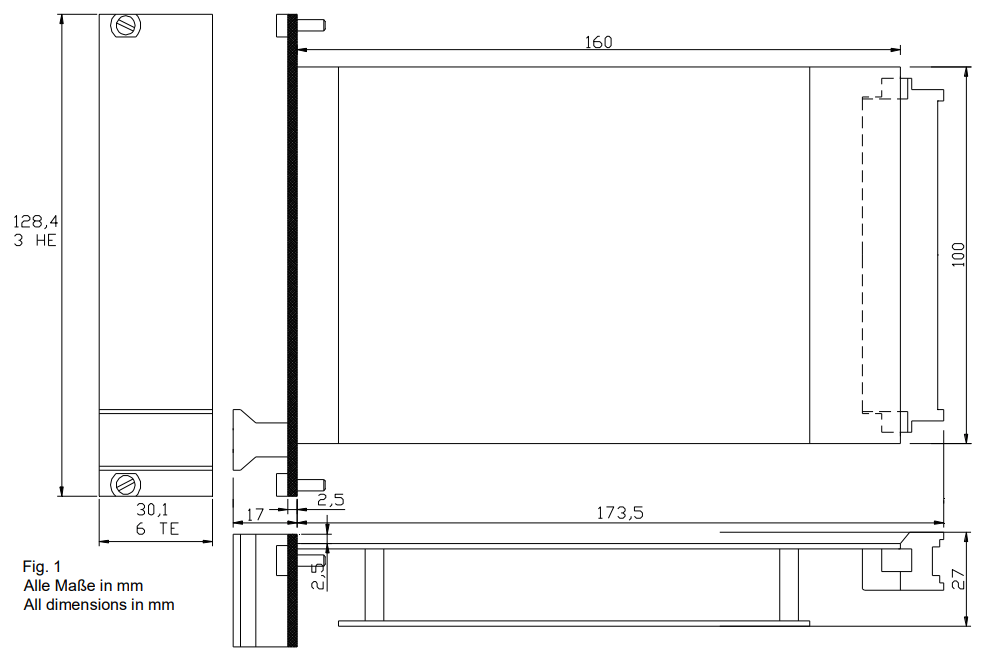

Width |
30.0 mm (6 TE) |
|
Height |
128.4 mm (3 HE) |
|
Length |
160.0 mm |
|
Net weight |
approx. 320 g |
FAQ
Q: What is the brand?
A: EPRO
Q: What is the type?
A:Dual Channel Eccentricity Monitor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
