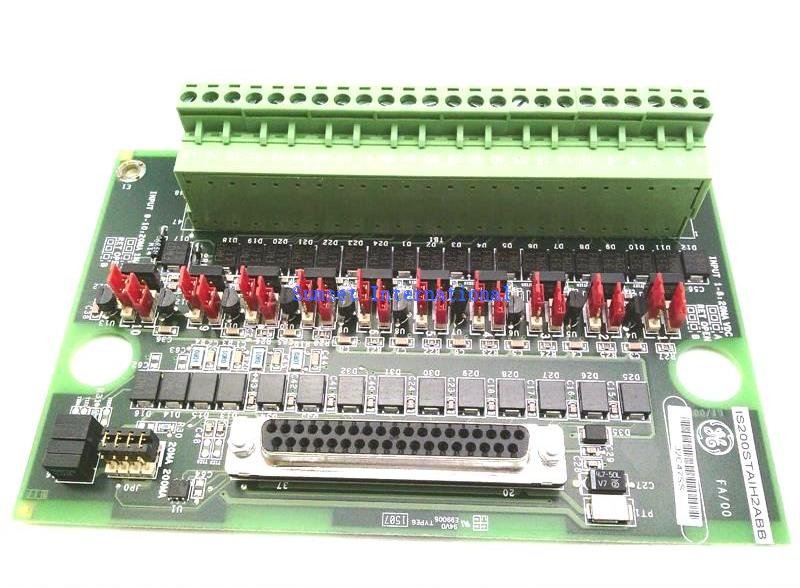

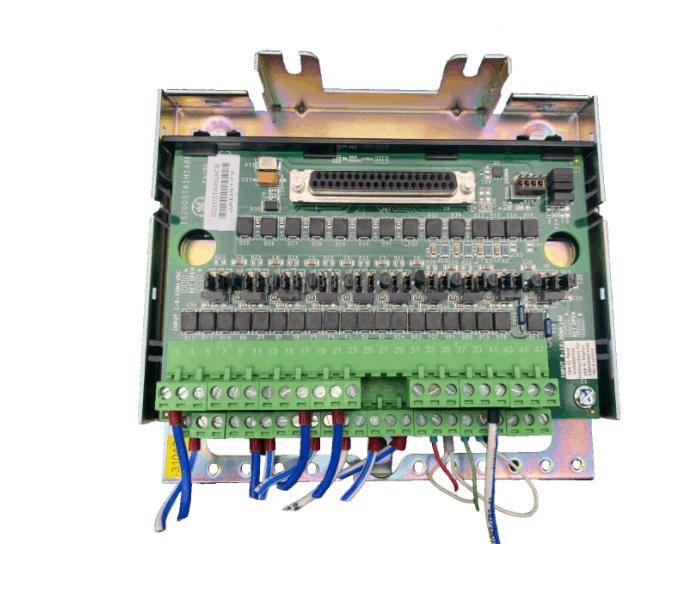

General Electric IS200STAIH2A IS200STAIH2ABA IS200STAIH2ACB Simplex Analog Input Terminal Board

GE IS200STAIH2A IS200STAIH2ABA IS200STAIH2ACB is a simplex analog input terminal block produced by General Electric (GE) and is part of the Mark VI series. It is designed for distributed control systems (DCS) as a small component that facilitates analog input and output connections.

The IS200STAIH2A simplex analog input terminal block is an indispensable component for connecting various types of analog signals to the Mark VI series DCS.

The IS200STAIH2A is designed to process analog signals in a simplex configuration, which means it operates independently without redundant channels. It is mainly used to interface with various types of analog transmitters and sensors in control systems.

Fuctions & Features

• Analog Inputs: The board supports 10 analog inputs to accommodate different types of analog signals. These inputs can interface with two-, three-, four-wire, or externally powered transmitters. The inputs can receive signals such as 5 V DC, 10 V DC, or 0-20 mA current from a variety of industrial sensors and transmitters.

• Analog Outputs: The board has two analog outputs that are configurable via jumpers: both support 0-20 mA outputs, and one of the outputs is capable of handling 0-200 mA current.

• Terminal Blocks: High-density Euro-style terminal blocks are used for connections, making it easier to manage wiring for multiple analog inputs and outputs.

• Input Type: Two-, three-, or four-wire transmitters. Externally powered transmitters. Direct voltage inputs such as 5 V DC and 10 V DC.

• Output Type: 0-20 mA analog current output. 0-200 mA analog current output (configurable).

Specifications
