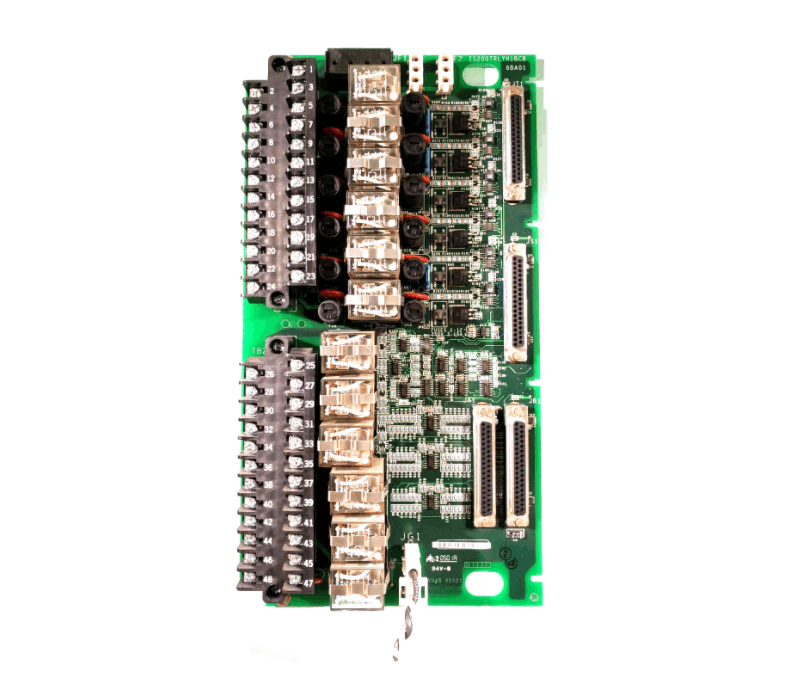

General Electric IS200TRLYH1B Relay Output Terminal Board
Item Number: IS200TRLYH1B
Brand: GE
Lead Time: In stock
Description: Relay Output Terminal Board
Payment: T/T
Product Description
GE IS200TRLYH1B is a triple modular redundant (TMR) Relay Output Terminal Board for the GE Mark VI. This board implements contact voting outputs through 36 sealed relays (12 groups × 3 redundancies) and supports Form A (normally open) or Form B (normally closed) configurations.
Function & Features
Failsafe: When communication is interrupted or the cable is disconnected, the IS200TRLYH1B automatically votes to the de-energized state (Form A) or the closed state (Form B).
Contact type:
- TRLYH1B: 12 sets of Form A (normally open) voting contacts.
- TRLYH2B: 12 sets of Form B (normally closed) voting contacts (other specifications are the same).
- Relay coil and logic power supply: 28V DC (independently powered from three-way I/O processors through JR1/JS1/JT1).
- On-site load power supply: The IS200WPDFH1A/H2A power distribution board is required to provide fuse protection.
Specifications
|
Parameter |
Details |
|
Model Number |
IS200TRLYH1B |
|
Redundancy Mode |
TMR (Triple Modular Redundancy), 2-out-of-3 voting |
|
Relay Quantity |
36 (12 groups × 3 redundancies) |
|
Contact Type |
Form A (NO) or Form B (NC) |
|
Wiring Spec |
#12 AWG (max 2.5mm²), Torque 0.5 - 0.6N·m |
